  • LED floodlight | 500W | 4000K | 70000lm | 479x389x243mm | IP66 | Ledvance | FLOODLIGHT HIGH MAST 500W 740 SYM R30

    Code: 96324
    Barcode: 4099854196324
  • LED floodlight | 500W | 4000K | 70000lm | 479x389x243mm | IP66 | Ledvance | FLOODLIGHT HIGH MAST 500W 740 SYM R30

    Ledvance FLOODLIGHT HIGH MAST 500W 740 SYM R30 is a 500 W LED floodlight delivering 70,000 lm of 4000 K neutral white light. Housing protection IP66 – built for long-term outdoor use.

    Key idea:
    A very high-power solution for stadiums, ports and large industrial areas, mounted on high masts.
    Power
    500 W
    Luminous flux
    70,000 lm
    Colour temperature
    4000 K
    Protection
    IP66

    Operating principle

    The floodlight is fixed with an adjustable bracket to a wall, mast or structure and connected to the 230 V supply via a separate driver.

    The LED light source and optic (30° (SYM)) shape the beam, while the aluminium housing dissipates heat – ensuring stable light output and long service life.

    What makes FLOODLIGHT HIGH MAST 500W 740 SYM R30 useful?
    70,000 lm from 500 W and an IP66 housing – reliable outdoor lighting with lower running costs.

    Technical specifications

    Product type LED floodlight
    Manufacturer / series Ledvance / FLOODLIGHT HIGH MAST
    Model FLOODLIGHT HIGH MAST 500W 740 SYM R30
    Product code 96324
    EAN 4099854196324
    Power 500 W
    Luminous flux 70.000 lm
    Colour temperature 4000 K
    Ingress protection IP66

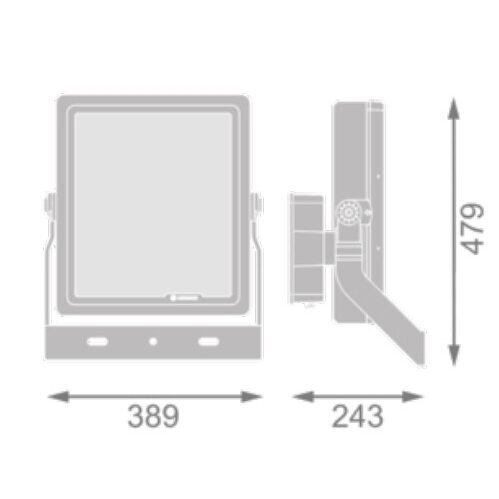

    Dimensions 479 × 389 × 243 mm
    Driver Driver sold separately
    Beam angle 30° (SYM)
    Housing Aluminium
    Colour Black
    Weight 9.7 kg
    Service life 100,000 h (L80/B50)
    Manufacturer warranty 5 years
    Certificates CE, ENEC

    Key features

    • LED technology – lower running costs than conventional floodlights.
    • IP66 housing – protected against dust and water, suitable for outdoor use.
    • 4000 K neutral white light – comfortable for the eye, suits commercial and industrial settings.
    • Aluminium housing – efficient heat dissipation and long service life.
    • Adjustable bracket – light can be aimed precisely at the required area.

    Where is it used?

    • Stadiums and sports arenas
    • Ports and container terminals
    • Large industrial sites
    • Railway stations and depots
    • Airfield perimeters
    • Quarries and mines

    Use by need

    Stadium or arena operator.
    High luminous flux from fewer floodlights on masts.
    Lighting designer.
    High-power light source: 70,000 lm, 4000 K, IP66.
    Ports and industry.
    A robust housing and even light for night work.

    Practical application

    If a stadium or port area has to be lit from high masts, FLOODLIGHT HIGH MAST 500W 740 SYM R30 with 70,000 lm replaces several older floodlights – fewer points, less maintenance.

    Pros

    • 70,000 lm luminous flux
    • LED technology – low running costs
    • IP66 protection
    • Aluminium housing, good heat dissipation
    • Manufacturer warranty 5 years
    • Service life 100,000 h

    Cons / limitations

    • No motion sensor – automatic control requires a photocell or timer
    • Fixed colour temperature
    • High weight and size – a sturdy support and mast are needed

    Safety and installation notes

    • Disconnect the power supply before installation and verify the line is dead.
    • Make outdoor connections in a sealed junction box (IP65 or higher).
    • Protect the circuit with a circuit breaker; an RCD is recommended for outdoor circuits.
    • Earth the housing – connect the PE conductor.
    • Choose the mounting structure and mast for the floodlight weight and wind load.
    • Work on 230 V installations must be carried out by a qualified electrician.

    Quick selection guide

    500 W
    70,000 lm
    4000 K
    IP66
    30° (SYM)
    230 V
    Suitable when you need:
    • Lighting a stadium, port or large site from masts
    • Replacing old halogen or metal halide floodlights
    • A reliable outdoor floodlight with clear data
    Check before use:
    • Whether the support and bracket suit the floodlight size and weight
    • Whether control is needed – photocell or timer
    • Whether circuit protection and cable cross-section match the total load
    • Whether the beam direction will dazzle neighbours or road users
    Important reminder: The floodlight is not an emergency luminaire and has no motion sensor – use a photocell or timer for automatic control.

    FAQ

    Can the floodlight be installed outdoors?
    Yes, the IP66 housing is designed for outdoor conditions.
    How much light does FLOODLIGHT HIGH MAST 500W 740 SYM R30 deliver?
    According to the manufacturer – 70,000 lm.
    Can it be controlled by a photocell or timer?
    Yes, the supply can be switched by a photocell or timer rated for the floodlight power.
    Is a separate driver needed?
    Yes, this floodlight is connected via a separately sold driver.
    Which colour temperature to choose?
    Warmer (3000 K) for façades and residential settings, neutral (4000 K) is universal, cool (5000 K and above) for work areas and yards.
    Can it replace an old halogen or metal halide floodlight?
    Yes, it provides similar or higher light levels while using less electricity.

    LED floodlight | 500W | 4000K | 70000lm | 479x389x243mm | IP66 | Ledvance | FLOODLIGHT HIGH MAST 500W 740 SYM R30

    Ledvance FLOODLIGHT HIGH MAST 500W 740 SYM R30 – 500 W, 70,000 lm, 4000 K, IP66 LED floodlight for stadiums, ports and large industrial sites.

    Published: 2026-11-14 · Data verified against the manufacturer datasheet: 2026-11-14

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
