Products catalog

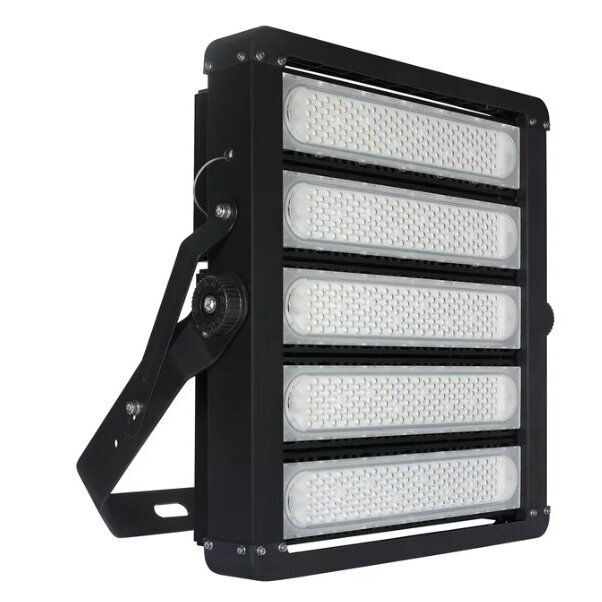

  • LED floodlight | 500W | 4000K | 61000lm | IP65 | Ledvance | ECO HP FLOOD 500W 840 VN

    Code: 72528
    Barcode: 4058075372528
  • LED floodlight | 500W | 4000K | 61000lm | IP65 | Ledvance | ECO HP FLOOD 500W 840 VN

    Ledvance ECO HP FLOOD 500W 840 VN is a 500 W LED floodlight delivering 61,000 lm of 4000 K neutral white light. Housing protection IP65, impact resistance IK08 – built for long-term outdoor use.

    Key idea:
    An efficacy of 122 lm/W means the same area is lit with less power than with metal halide, sodium or halogen floodlights. A very high-power solution for stadiums, ports and large industrial areas, mounted on high masts.
    Power
    500 W
    Luminous flux
    61,000 lm
    Colour temperature
    4000 K
    Protection
    IP65 / IK08

    Operating principle

    The floodlight is fixed with an adjustable bracket to a wall, mast or structure and connected to the 230 V supply.

    The LED light source and optic (30° (VN)) shape the beam, while the aluminium housing dissipates heat – ensuring stable light output and long service life.

    What makes ECO HP FLOOD 500W 840 VN useful?
    61,000 lm from 500 W and an IP65 housing – reliable outdoor lighting with lower running costs.

    Technical specifications

    Product type LED floodlight
    Manufacturer / series Ledvance / ECO HIGH POWER FLOOD
    Model ECO HP FLOOD 500W 840 VN
    Product code 72528
    EAN 4058075372528
    Power 500 W
    Luminous flux 61.000 lm
    Colour temperature 4000 K
    Ingress protection IP65
    Supply voltage 220–240 V
    Luminous efficacy 122 lm/W
    Colour rendering index (CRI) 80–89
    Beam angle 30° (VN)
    Impact resistance IK08
    Operating temperature −40…+45 °C
    Housing Aluminium
    Colour Black
    Connection cable 1 m, H05RN-F 3G1.0
    Service life 50,000 h (L70B50)
    Manufacturer warranty 5 years

    Key features

    • 122 lm/W efficacy – more light per watt.
    • IP65 housing – protected against dust and water, suitable for outdoor use.
    • 4000 K neutral white light – comfortable for the eye, suits commercial and industrial settings.
    • Aluminium housing – efficient heat dissipation and long service life.
    • Adjustable bracket – light can be aimed precisely at the required area.

    Where is it used?

    • Stadiums and sports arenas
    • Ports and container terminals
    • Large industrial sites
    • Railway stations and depots
    • Airfield perimeters
    • Quarries and mines

    Use by need

    Stadium or arena operator.
    High luminous flux from fewer floodlights on masts.
    Lighting designer.
    High-power light source: 61,000 lm, 4000 K, IP65.
    Ports and industry.
    A robust housing and even light for night work.

    Practical application

    If a stadium or port area has to be lit from high masts, ECO HP FLOOD 500W 840 VN with 61,000 lm replaces several older floodlights – fewer points, less maintenance.

    Pros

    • 61,000 lm luminous flux
    • Efficacy 122 lm/W
    • IP65 protection, IK08
    • Aluminium housing, good heat dissipation
    • Manufacturer warranty 5 years
    • Service life 50,000 h

    Cons / limitations

    • No motion sensor – automatic control requires a photocell or timer
    • Fixed colour temperature
    • High weight and size – a sturdy support and mast are needed

    Safety and installation notes

    • Disconnect the power supply before installation and verify the line is dead.
    • Make outdoor connections in a sealed junction box (IP65 or higher).
    • Protect the circuit with a circuit breaker; an RCD is recommended for outdoor circuits.
    • Earth the housing – connect the PE conductor.
    • Choose the mounting structure and mast for the floodlight weight and wind load.
    • Work on 230 V installations must be carried out by a qualified electrician.

    Quick selection guide

    500 W
    61,000 lm
    4000 K
    IP65
    30° (VN)
    230 V
    Suitable when you need:
    • Lighting a stadium, port or large site from masts
    • Replacing old halogen or metal halide floodlights
    • A reliable outdoor floodlight with clear data
    Check before use:
    • Whether the support and bracket suit the floodlight size and weight
    • Whether control is needed – photocell or timer
    • Whether circuit protection and cable cross-section match the total load
    • Whether the beam direction will dazzle neighbours or road users
    Important reminder: The floodlight is not an emergency luminaire and has no motion sensor – use a photocell or timer for automatic control.

    FAQ

    Can the floodlight be installed outdoors?
    Yes, the IP65 housing is designed for outdoor conditions.
    How much light does ECO HP FLOOD 500W 840 VN deliver?
    According to the manufacturer – 61,000 lm.
    Can it be controlled by a photocell or timer?
    Yes, the supply can be switched by a photocell or timer rated for the floodlight power.
    Is a separate driver needed?
    No, the driver is built in – the floodlight connects directly to the mains.
    Which colour temperature to choose?
    Warmer (3000 K) for façades and residential settings, neutral (4000 K) is universal, cool (5000 K and above) for work areas and yards.
    Can it replace an old halogen or metal halide floodlight?
    Yes, it provides similar or higher light levels while using less electricity.

    LED floodlight | 500W | 4000K | 61000lm | IP65 | Ledvance | ECO HP FLOOD 500W 840 VN

    Ledvance ECO HP FLOOD 500W 840 VN – 500 W, 61,000 lm, 4000 K, IP65 LED floodlight for stadiums, ports and large industrial sites.

    Published: 2026-11-14 · Data verified against the manufacturer datasheet: 2026-11-14

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
