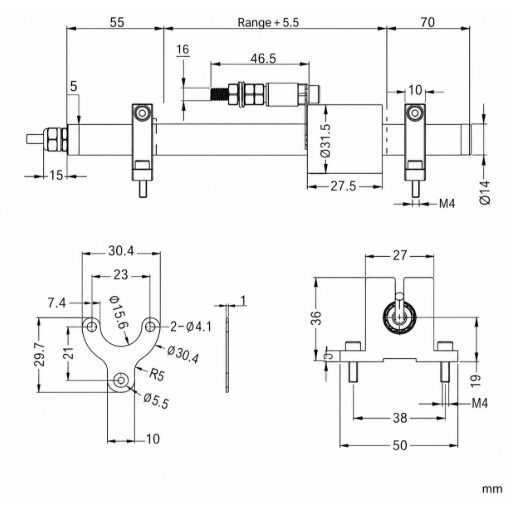

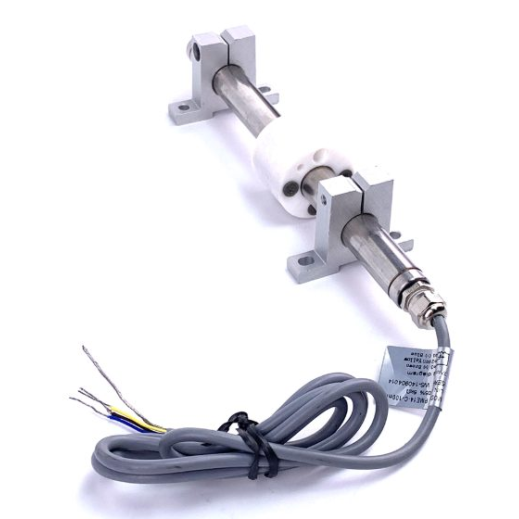

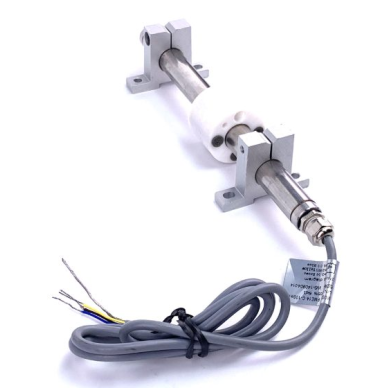

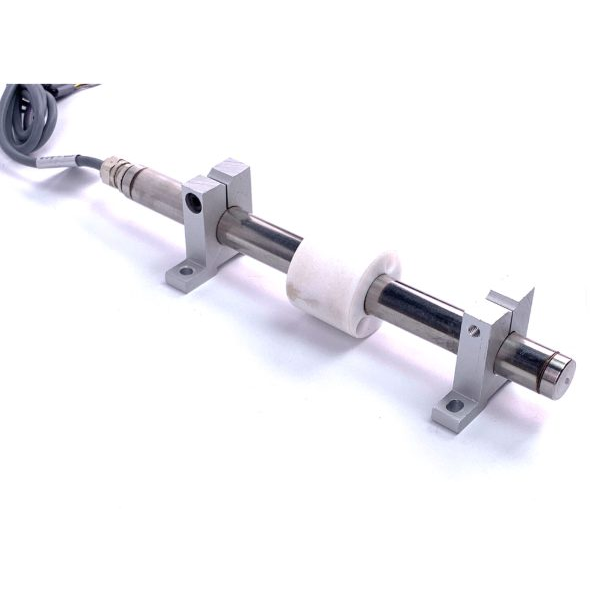

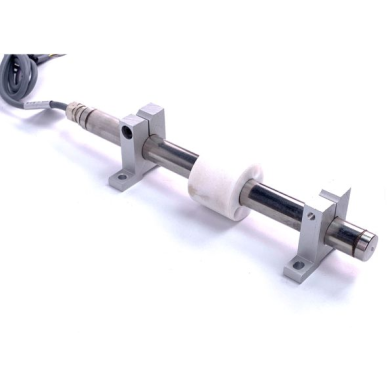

    Linear position and displacement sensor | 14–150 mm | up to 36V DC | analog output | for measuring the stroke of cylinders, sliders and mechanisms

    Code: ES-PME14-150
    Inquire about this item
    Price 268.40 € VAT incl.
    ( 221.82 € VAT excl. )
    Want another price? Suggest yours!
    This is a magnetoresistive linear position and displacement sensor designed for precise measurement of stroke, position, or linear displacement of moving mechanisms. The sensor features an analog output, a cable connection, ±0.1% linearity, up to 36V DC supply voltage, an aluminum housing, and a high protection class. Due to its compact design and bracket-type mounting, it is suitable for industrial equipment, automation, hydraulics, pneumatic mechanisms, and positioning systems.
  • Product description

    Linear position sensor – analog displacement measurement, IP68, up to 36V DC, 14–150 mm

    This is a magnetoresistive linear position and displacement sensor designed for precise measurement of stroke, position, or linear displacement of moving mechanisms. The sensor features an analog output, cable connection, ±0.1% linearity, up to 36V DC supply voltage, an aluminum housing, and a high ingress protection rating. Due to its compact design and bracket-type mounting, it is suitable for industrial equipment, automation, hydraulics, pneumatic mechanisms, and positioning systems.

    Key concept:
    This sensor is intended for precise linear displacement or position measurement where an analog signal, compact mounting, good environmental resistance, and stable operation in industrial systems are required. The PME14 series is particularly relevant in automated equipment where it is important to monitor the position of a cylinder, guide, slider, or another moving component.
    Measurement type
    Magnetoresistive displacement
    Output
    Analog
    Accuracy
    Linearity ±0.1%
    Protection
    IP68 / IP65

    Operating principle

    A magnetoresistive displacement sensor measures the position of a moving part based on changes in a magnetic field. As the mechanism moves, the sensor's measuring element detects the position change and converts it into an analog electrical signal, which can be read by a controller, PLC, measurement module, or other automation system.

    The PME14 series sensor is installed using a bracket and connected via cable. It is suitable for applications where you need not only to detect an end position but also to receive a proportional signal regarding the actual displacement throughout the entire measuring range. This allows for more precise control of mechanism stroke, position monitoring, and optimization of equipment operation.

    What are the benefits of a magnetoresistive displacement sensor?
    It allows for measuring not just an "on/off" state, but the actual linear position. This is important in automation systems where you need to control cylinder stroke, slider position, valve opening, mechanical assembly movement, or other precise displacement parameters.

    Technical specifications

    Manufacturer / Brand MIRAN
    Model / Manufacturer code PME14
    Product type Magnetoresistive linear position / displacement sensor
    Measurement principle Magnetoresistive displacement measurement
    Application Linear displacement and position measurement
    Output signal Analog
    Communication / Interface Cable
    Supply voltage ≤36V DC
    Maximum operating voltage 36V
    Linearity ±0.1%
    Resistance tolerance ±10%
    Slider resistance ≤0.5N
    Maximum acceleration ≤10 m/s²
    Displacement speed ≤5 m/s
    Displacement sensitivity (no hysteresis) 0.05–0.1 mm
    Service life (cycles) Up to 100,000,000 cycles
    Measuring range 14–150 mm
    Mounting type Bracket mounting
    Housing material Aluminum
    Ingress protection IP68
    Protection rating IP65
    Operating temperature -40℃ ... +120℃
    Storage temperature -50℃ ... +150℃

    Where is it used?

    • In industrial automation – for monitoring the position of mechanism strokes, sliders, guides, and moving parts.
    • In hydraulic and pneumatic systems – for controlling cylinder stroke or actuator position.
    • In equipment control – when an analog signal about the actual position is needed, rather than just an end-position signal.
    • In measurement and testing benches – for displacement measurement, repetitive motion control, and testing processes.
    • In packaging, production, and assembly lines – for tracking and controlling the position of moving parts.

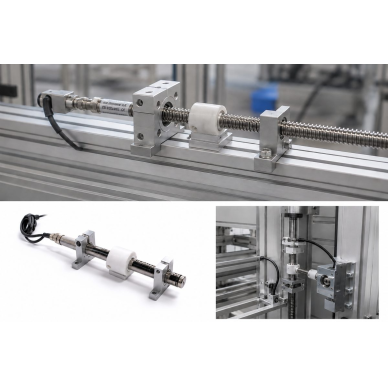

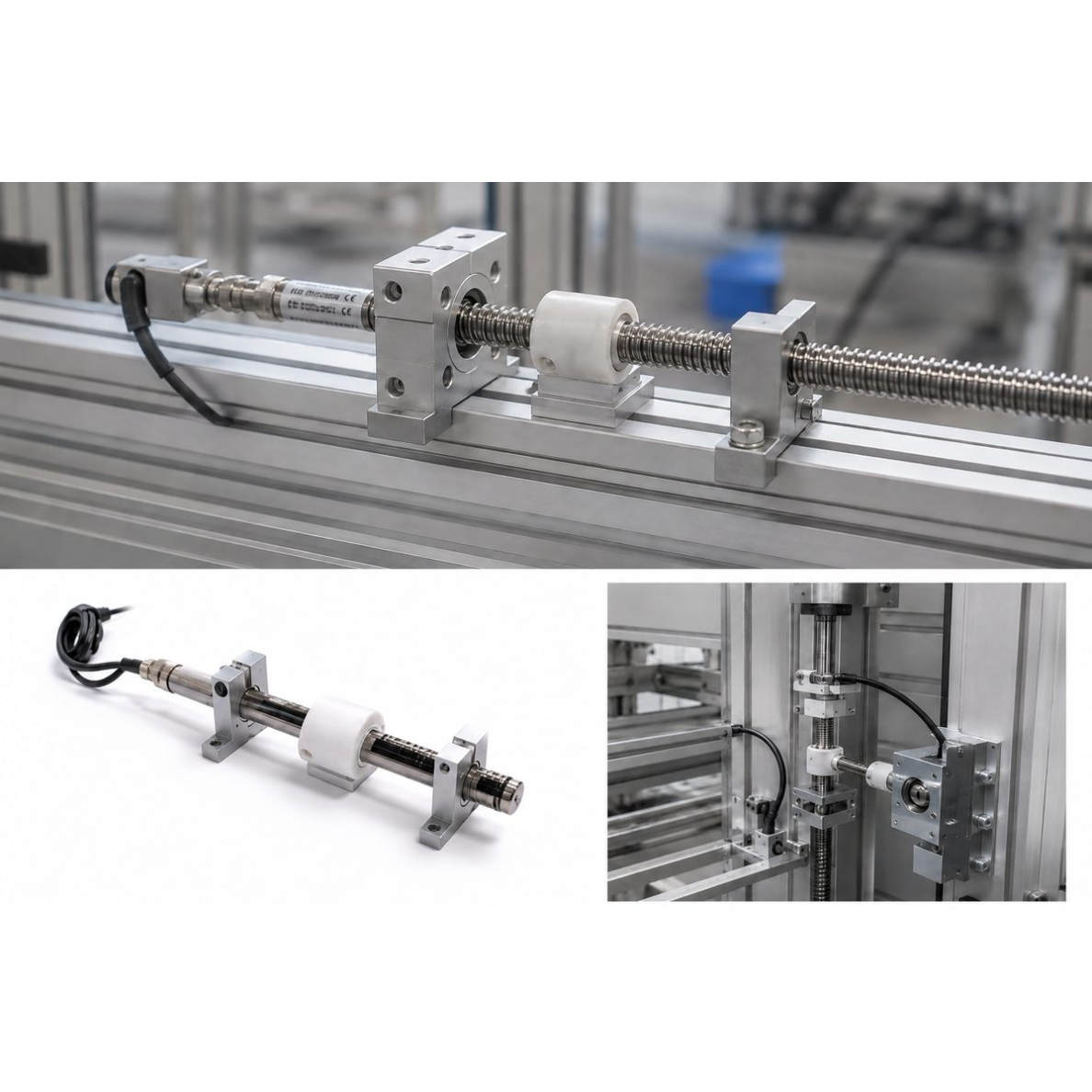

    Practical mounting example

    For example, the sensor can be mounted on a pneumatic or hydraulic cylinder, slider, or linear mechanism. As the mechanism moves, the sensor transmits an analog signal to the controller, which can be used to determine the exact position, stroke, or movement limits.

    Such a solution is suitable for equipment where a simple limit switch is insufficient, as there is a need to observe intermediate positions, control processes based on actual displacement, or perform precise measurement logging.

    Usage by professionals

    Automation specialist: A suitable solution when an analog position signal is required for a PLC, equipment control system, or data acquisition module. Can be used for positioning and stroke control of moving assemblies.

    Engineer / Designer: Relevant when designing linear motion systems where you need to evaluate measuring range, output signal, supply voltage, IP protection, temperature limits, and mechanical mounting.

    Equipment maintenance specialist: Can be used as a replacement or additional displacement sensor in industrial equipment where reliable position measurement, a high number of operating cycles, and environmental resistance are important.

    Pros

    • Magnetoresistive measurement principle – suitable for linear displacement and position measurement.
    • Analog output – convenient for use with PLCs, controllers, and measurement systems.
    • ±0.1% linearity – good accuracy for industrial position measurement.
    • High number of operating cycles – up to 100,000,000.
    • IP68 ingress protection – enhanced protection against environmental impact.
    • Wide temperature range – operation from -40℃ to +120℃.
    • Aluminum housing – robust and suitable for industrial environments.
    • Bracket mounting – convenient to adapt to different mechanisms.
    • 14–150 mm variants – can be selected based on the required displacement range.

    Cons / Limitations

    • Precise selection of measuring range required – must correspond to the specific mechanism's displacement.
    • Analog signal must be compatible with the controller – check output variant.
    • Mounting accuracy is critical for measurement results – improper mechanical alignment can degrade accuracy.
    • Verify actual IP rating based on the specific version – both IP68 and IP65 information provided.
    • Not suitable as a simple limit switch if only an ON/OFF contact is required by the control system.

    Safety and mounting notes

    The displacement sensor must be installed and connected according to the manufacturer's instructions. Before installation, it is necessary to evaluate the supply voltage, output signal type, mechanical mounting, displacement range, and environmental conditions.

    • Do not exceed 36V DC supply voltage unless specified otherwise in the documentation for the specific model.
    • Ensure mechanical alignment during installation so that the sensor is not loaded with lateral forces.
    • Do not exceed the permitted displacement speed – specified displacement speed up to 5 m/s.
    • Evaluate operating temperature – the sensor is rated for operation from -40℃ to +120℃.
    • Electrical connection should be performed by a qualified specialist, especially when connecting to a PLC, measurement module, or industrial automation system.

    Quick selection guide

    Suitable when a compact magnetoresistive sensor is needed for linear displacement measurement, and the control system requires an analog signal. This sensor is appropriate for industrial equipment, hydraulic and pneumatic systems, sliders, positioning mechanisms, and test benches.

    Series
    PME14
    Output
    Analog
    Measuring range
    14–150 mm
    Power supply
    ≤36V DC
    Suitable when you need to:
    • measure linear displacement or position;
    • receive an analog signal into a PLC or controller;
    • monitor the stroke of a cylinder, slider, or mechanism;
    • use a sensor in an industrial environment;
    • select a compact 14–150 mm range position sensor.
    Check before ordering:
    • what range is needed – 14 mm, 25 mm, 50 mm, or another variant;
    • whether the controller input is compatible with the sensor's analog signal;
    • whether environmental conditions meet the IP65 / IP68 and temperature limits;
    • whether correct mechanical alignment can be ensured at the mounting location.
    Important reminder:
    Before ordering, it is necessary to verify the specific PME14 version: measuring range, output signal type, cable length, wiring diagram, and actual IP protection rating according to the manufacturer's documentation. Different variants may have different connections and output signals.

    FAQ – Frequently asked questions

    What is this sensor for?
    It is designed for measuring linear displacement and position in industrial equipment, automation systems, hydraulic, pneumatic, or mechanical assemblies.
    What signal does this sensor transmit?
    According to the provided information, the sensor has an analog output. Before ordering, you need to verify which variant is required – A1, A2, V1, or V2.
    What is the supply voltage of the sensor?
    The specified supply voltage is up to 36V DC. The maximum operating voltage is also stated as 36V.
    Is the sensor resistant to moisture and dust?
    IP68 ingress protection and IP65 protection ratings are provided. Since both values are listed in the information, it is worth checking the documentation for the specific model before ordering.
    Can this sensor be used instead of a limit switch?
    It can be used to monitor position, but it is not a simple ON/OFF limit switch. This sensor is designed for analog displacement measurement, so the control system must be capable of accepting an analog signal.

    Precise magnetoresistive sensor for linear position and displacement measurement

    A magnetoresistive displacement sensor is a practical solution in industrial automation when you need to precisely measure the position, stroke, or linear displacement of a moving mechanism and transmit an analog signal to a controller.

    Due to its ±0.1% linearity, up to 36V DC power supply, IP68 / IP65 protection, aluminum housing, and wide temperature range, this sensor is suitable for various automation, hydraulic, pneumatic, positioning, and measurement projects.
