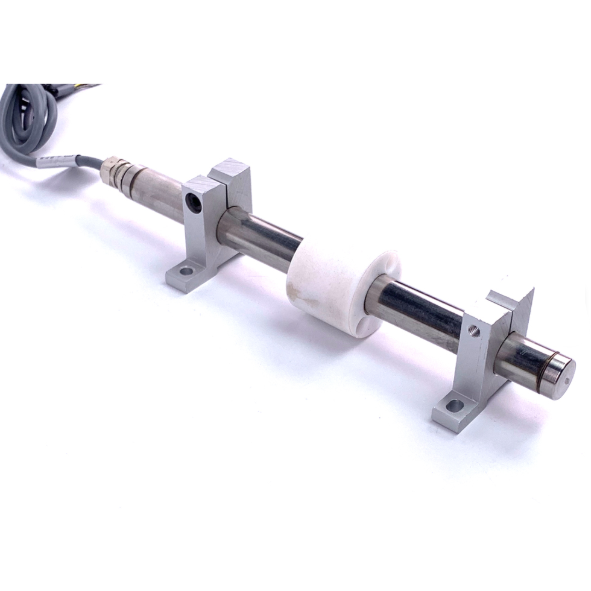

    Linear position and displacement sensor | 14–50 mm | up to 36V DC | analog output | for measuring the stroke of cylinders, sliders and mechanisms

    Code: ES-PME14-50
    Inquire about this item
    Price 243.14 € VAT incl.
    ( 200.94 € VAT excl. )
    Want another price? Suggest yours!
    This is a magnetoresistive linear position and displacement sensor designed for precise measurement of stroke, position, or linear displacement of moving mechanisms. The sensor features an analog output, a cable connection, ±0.1% linearity, up to 36V DC supply voltage, an aluminum housing, and a high protection class. Due to its compact design and bracket-type mounting, it is suitable for industrial equipment, automation, hydraulics, pneumatic mechanisms, and positioning systems.
  • Product description

    Linear position sensor – analog displacement measurement, IP68, up to 36V DC, 14–50 mm

    This is a magnetoresistive linear position and displacement sensor designed for precise measurement of the stroke, position, or linear displacement of moving mechanisms. The sensor features an analog output, a cable connection, ±0.1% linearity, a power supply of up to 36V DC, an aluminum housing, and a high protection class. Due to its compact design and bracket-type mounting, it is suitable for industrial equipment, automation, hydraulics, pneumatic mechanisms, and positioning systems.

    Key concept:
    This sensor is designed for precise linear displacement or position measurement when an analog signal, compact mounting, high environmental resistance, and stable operation in industrial systems are required. The PME14 series is particularly relevant in automated equipment where it is important to monitor the position of a cylinder, guide, slider, or other moving assembly.
    Measurement type
    Magnetoresistive displacement
    Output
    Analog
    Accuracy
    Linearity ±0.1%
    Protection
    IP68 / IP65

    Operating principle

    A magnetoresistive displacement sensor measures the position of a moving part based on changes in the magnetic field. As the mechanism moves, the sensor's measuring element detects the change in position and converts it into an analog electrical signal, which can be read by a controller, PLC, measurement module, or other automation system.

    The PME14 series sensor is mounted using a bracket and connected via a cable. It is suitable for applications where it is necessary not only to detect the end position but also to receive a proportional signal regarding the actual displacement throughout the entire measuring range. This allows for more precise control of mechanism travel, position monitoring, and optimization of equipment performance.

    What is the benefit of a magnetoresistive displacement sensor?
    It allows for the measurement of not just an "on/off" state, but the actual linear position. This is critical in automation systems where it is necessary to control cylinder travel, slider position, valve opening, mechanical assembly movement, or other precise displacement parameters.

    Technical parameters

    Manufacturer / Brand MIRAN
    Model / Manufacturer code PME14
    Product type Magnetoresistive linear position / displacement sensor
    Measurement principle Magnetoresistive displacement measurement
    Application Linear displacement and position measurement
    Output signal Analog

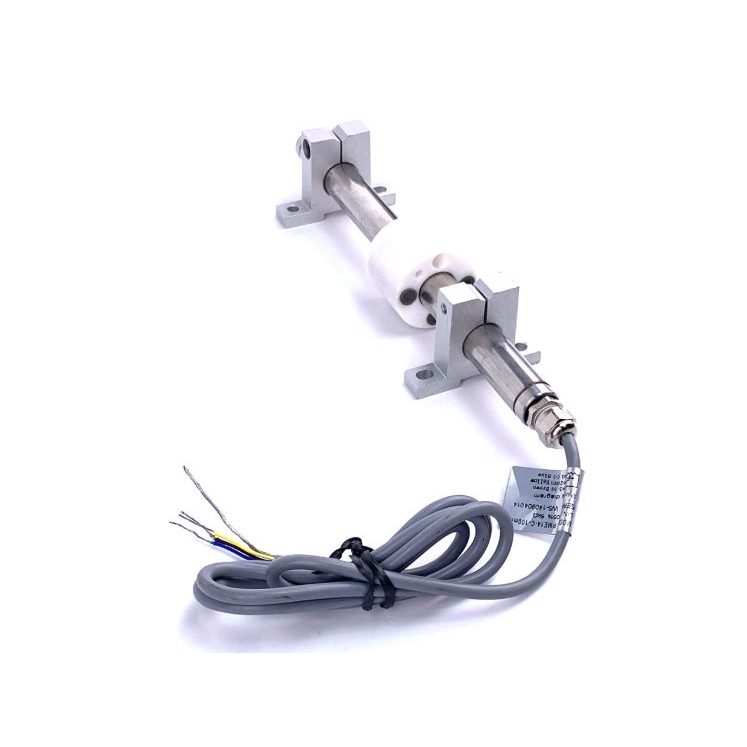

    Connection interface Cable
    Supply voltage ≤36V DC
    Maximum supply voltage 36V
    Linearity ±0.1%
    Resistance tolerance ±10%
    Pointer / slider resistance ≤0.5N
    Maximum acceleration ≤10 m/s²
    Displacement speed ≤5 m/s
    Hysteresis-free displacement sensitivity 0.05–0.1 mm
    Service life (cycles) Up to 100,000,000 cycles
    Measurement range  14–50 mm

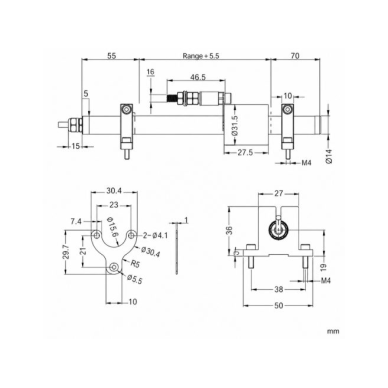

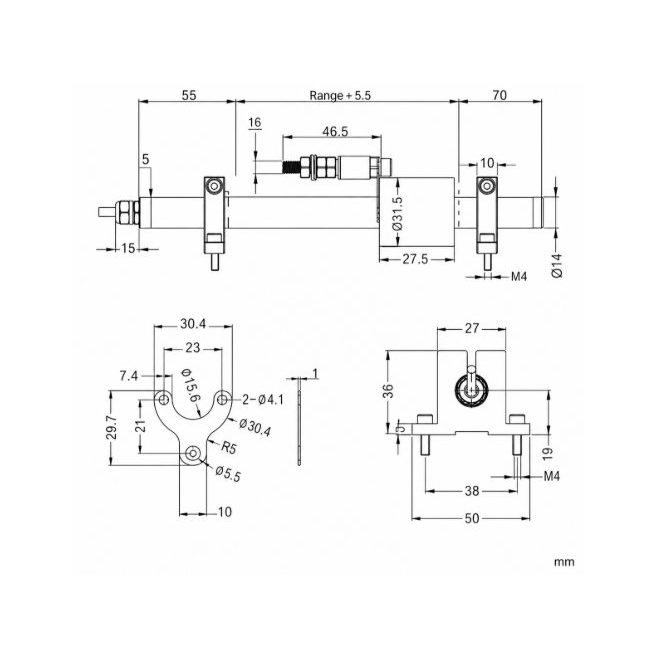

    Mounting type Bracket mounting
    Housing material Aluminum
    Ingress protection class IP68
    Protection class IP65
    Operating temperature -40℃ ... +120℃
    Storage temperature -50℃ ... +150℃

    Applications

    • Industrial automation – for monitoring the position of mechanisms, sliders, guides, and moving assemblies.
    • Hydraulic and pneumatic systems – for controlling cylinder travel or actuator position.
    • Equipment control – when an analog signal regarding actual position is needed, rather than just an end-position signal.
    • Measurement and testing rigs – for displacement measurement, repetitive motion control, and testing processes.
    • Packaging, manufacturing, and assembly lines – for monitoring and controlling the position of moving components.

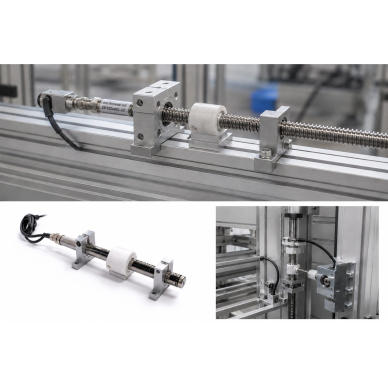

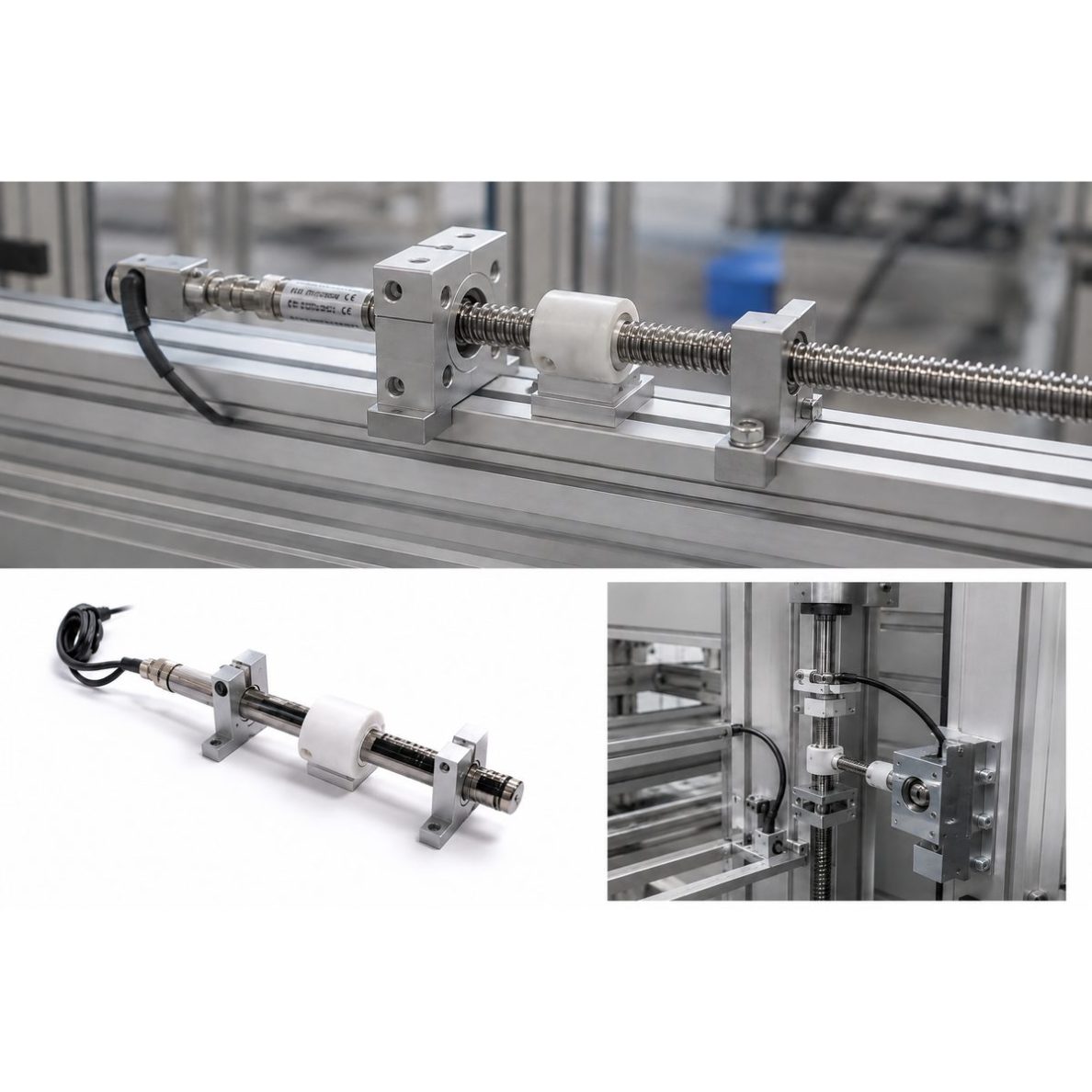

    Practical mounting example

    For example, the sensor can be mounted to a pneumatic or hydraulic cylinder, slider, or linear mechanism. As the mechanism moves, the sensor transmits an analog signal to the controller, which can be used to determine the exact position, travel, or movement limits.

    Such a solution is suitable for equipment where a simple end-position switch is insufficient, as it is necessary to see intermediate positions, control the process based on actual displacement, or perform precise measurement logging.

    Professional use

    For the automation specialist: A suitable solution when an analog position signal is required for a PLC, equipment control system, or data acquisition module. It can be used for positioning and stroke control of moving assemblies.

    For the engineer / designer: Relevant when designing linear motion systems where it is necessary to consider the measurement range, output signal, supply voltage, IP protection, temperature limits, and mechanical mounting.

    For the maintenance specialist: Can be used as a replacement or additional displacement sensor in industrial equipment where reliable position measurement, high cycle count, and environmental resistance are important.

    Advantages

    • Magnetoresistive measurement principle – suitable for linear displacement and position measurement.
    • Analog output – easy to use with PLCs, controllers, and measurement systems.
    • ±0.1% linearity – good accuracy for industrial position measurement.
    • High cycle life – up to 100,000,000 cycles.
    • IP68 protection class – excellent protection against environmental factors.
    • Wide temperature range – operates from -40℃ to +120℃.
    • Aluminum housing – robust solution suitable for industry.
    • Bracket mounting – convenient for adaptation to various mechanisms.
    • 14–50 mm variants – can be selected based on the required travel.

    Limitations

    • Requires precise selection of measurement range – must correspond to the actual displacement of the mechanism.
    • Analog signal must be compatible with the controller – check the specific output type.
    • Mechanical alignment is critical – improper alignment can reduce measurement accuracy.
    • Verify specific IP class based on version – both IP68 and IP65 ratings mentioned.
    • Not suitable as a simple end-position switch if only an ON/OFF signal is needed.

    Safety and installation notes

    The displacement sensor must be installed and connected according to the manufacturer's instructions. Before installation, it is necessary to evaluate the supply voltage, output signal type, mechanical mounting, travel range, and environmental conditions.

    • Do not exceed 36V DC supply voltage unless otherwise specified in the documentation for a specific model.
    • Ensure mechanical alignment during installation so that the sensor is not subjected to side loads.
    • Do not exceed permissible displacement speed – specified up to 5 m/s.
    • Consider operating temperature – rated for -40℃ to +120℃.
    • Electrical connection should be performed by a qualified specialist, especially when connecting to a PLC, measurement module, or industrial automation system.

    Quick selection guide

    Suitable when a compact magnetoresistive sensor for linear displacement measurement is needed and the control system requires an analog signal. This sensor is suitable for industrial equipment, hydraulic and pneumatic systems, sliders, positioning mechanisms, and test benches.

    Series
    PME14
    Output
    Analog
    Measurement range
    14–50 mm
    Supply
    ≤36V DC
    Suitable when you need to:
    • measure linear displacement or position;
    • receive an analog signal into a PLC or controller;
    • monitor the travel of a cylinder, slider, or mechanism;
    • use the sensor in an industrial environment;
    • select a compact 14–50 mm range position sensor.
    Check before ordering:
    • required range – 14 mm, 25 mm, 50 mm, or other;
    • controller input compatibility with the analog sensor signal;
    • whether environmental conditions match IP65 / IP68 and temperature limits;
    • possibility to ensure correct mechanical alignment at the mounting site.
    Important reminder:
    Before ordering, it is necessary to verify the specific PME14 version: measurement range, output signal type, cable length, wiring diagram, and actual IP protection class according to the manufacturer's documentation. Different variants may have different connections and output signals.

    FAQ – Frequently asked questions

    What is this sensor for?
    It is intended for linear displacement and position measurement in industrial equipment, automation systems, hydraulic, pneumatic, or mechanical assemblies.
    What kind of signal does it output?
    According to the provided information, the sensor features an analog output. Before ordering, clarify which variant is required – A1, A2, V1, or V2.
    What is the supply voltage?
    The specified supply voltage is up to 36V DC. The maximum operating voltage is also rated at 36V.
    Is the sensor resistant to moisture and dust?
    It carries an IP68 ingress protection rating and IP65 protection rating. Since both values are provided, check the specific model documentation before ordering.
    Can this sensor replace an end-position switch?
    It can be used for position monitoring, but it is not a simple ON/OFF end-position switch. This sensor is designed for analog displacement measurement, so the control system must be capable of receiving an analog signal.

    Precise magnetoresistive sensor for linear position and displacement measurement

    A magnetoresistive displacement sensor is a practical solution in industrial automation when you need to precisely measure the position, stroke, or linear displacement of a moving mechanism and transmit an analog signal to a controller.

    With ±0.1% linearity, up to 36V DC supply, IP68 / IP65 protection, aluminum housing, and a wide temperature range, this sensor is suitable for a variety of automation, hydraulic, pneumatic, positioning, and measurement projects.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
