DIN rail twilight switch with universal 12–240 V AC/DC supply and external sensor: 1–50,000 lx, 1CO 16 A AC1, 0–2 min delay, 1 module.

Product description

Modular photo relay with external sensor | 16 A | 1–100 lx | VEXEN TWR1

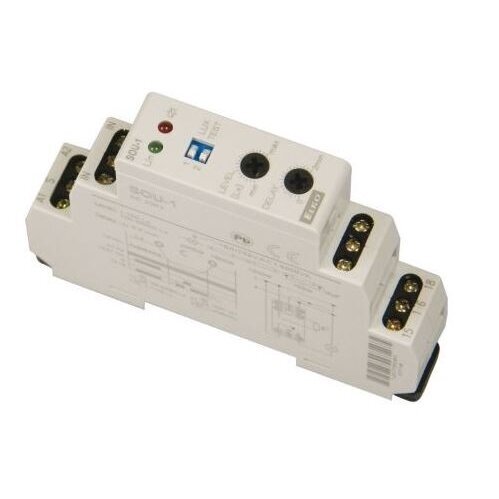

SOU-1/UNI is a twilight switch that switches its output according to real illuminance and can be supplied with any voltage from 12 to 240 V – AC or DC. The relay is mounted in the panel on a DIN rail (1 module), while light is measured by an external sensor mounted outdoors on a wall. Two ranges – 1–100 lx and 100–50,000 lx.

Key point:
The universal supply lets you use the same relay where 230 V AC is not available or the control circuit is low voltage: in 12 V and 24 V DC systems, solar and battery installations, and automation panels with a 24 V supply. The 1CO contact switches up to 16 A AC1 or up to 384 W at 24 V DC.

Supply
12–240 V AC/DC

Sensitivity
1–50,000 lx (2 ranges)

Output
1CO, 16 A AC1

Delay
0–2 min, adjustable

Mounting
1 module, DIN rail

Operating principle

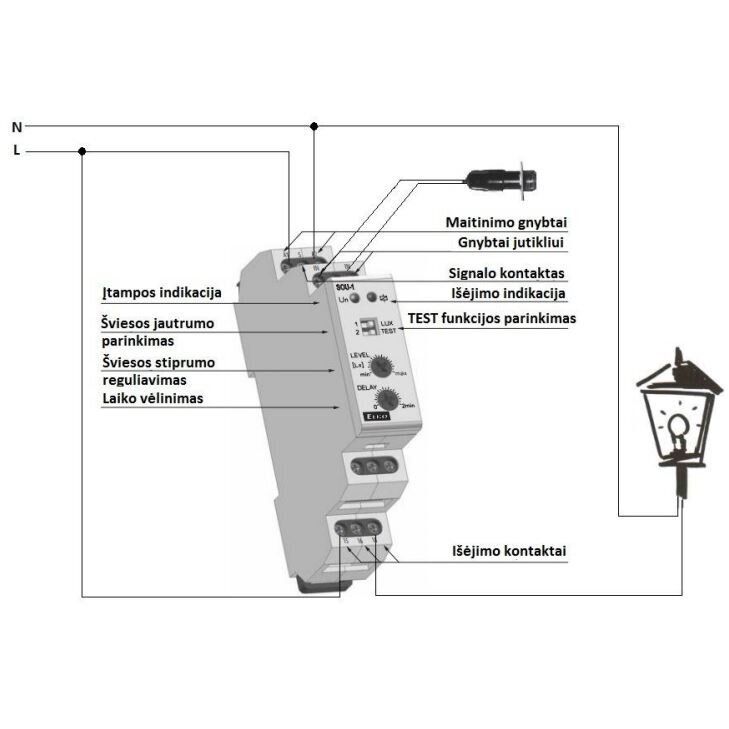

The external sensor continuously measures illuminance. When light falls below the set threshold, the relay switches output contact 15–16–18 and turns the load on; when light rises above the threshold plus hysteresis, the contact returns to its initial position.

A selector chooses range LUX1 (1–100 lx) or LUX2 (100–50,000 lx), and the exact threshold is set with a knob. The 0–2 min delay prevents the relay from reacting to car headlights or a passing cloud.

Input S is used for additional control, e.g. a timer blocking the lighting at night. In the TEST position the output is forced on – this checks the load connection. A green LED shows supply, a red LED shows an active output.

Why 12–240 V AC/DC?
Farmsteads with solar panels and batteries, garden houses, campsites, telecom and security cabinets often have only 12 V or 24 V DC. An ordinary 230 V AC photo relay will not work there, while the UNI version is supplied directly from the same system and controls, e.g., 12/24 V LED lighting without a converter.

Technical specifications

Product type	Modular twilight switch (photo relay) with external sensor
Manufacturer / model	GanzKK (Hungary) SOU-1/UNI
Supply voltage	12–240 V AC/DC (AC 50–60 Hz), −15 % / +10 %, terminals A1–A2
Output	1 changeover contact (1CO), terminals 15–16–18
Contact material	AgSnO₂
Switching current	16 A (AC1), inrush current 30 A (< 3 s)
Switching capacity	4000 VA (AC1), 384 W (DC)
Switching voltage	250 V AC / 24 V DC
Light sensitivity range	1–50,000 lx: LUX1 1–100 lx and LUX2 100–50,000 lx
Switching delay	0–2 min, adjustable; with hysteresis
Control input S	additional control / blocking, e.g. by a timer
Modes	LUX1 / LUX2 / TEST
Indication	green LED – supply, red LED – output
Sensor	external, with holder for wall mounting
Sensor cable	up to 50 m (standard wire)
Terminals	screw; solid wire up to 1 × 2.5 mm² or 2 × 1.5 mm²; with ferrule up to 1 × 2.5 mm²
Mechanical / electrical life	1 × 10⁷ / 0.7 × 10⁵ cycles (AC1)
Protection rating	IP40 from the front panel, IP20 terminals
Dimensions	90 × 17.6 × 64 mm, 1 module
Mounting	DIN rail (EN 60715), any position
Operating temperature	−20…+55 °C (storage −30…+70 °C)
Overvoltage category / pollution degree	III / 2

Main functions

Universal supply 12–240 V AC/DC – one relay for 12 V, 24 V, 48 V and 230 V circuits.
Two sensitivity ranges – 1–100 lx for dusk and 100–50,000 lx for daylight.
1CO changeover contact – a circuit can be switched on at dusk or during daylight.
Adjustable delay 0–2 min – short light changes do not switch the output.
Input S and TEST position – blocking by a timer and a quick load check.
Sensor cable up to 50 m – the sensor can be mounted far from the panel.

How does it differ from similar models?

Eti SOU-1 – The same function and ranges, but 230 V AC supply only; IP65 sensor included.
VEXEN VSOU-1 – 1–50,000 lx, 1CO 16 A and input S, 230 V AC supply, IP56 sensor.
VEXEN TWR1 – 110–240 V AC supply (no DC), 1–100 lx only and a 1NO contact – for simple outdoor lighting.
ES-TS01 – AC 24–264 V supply, 16 A, 1NO – a wide voltage range, but AC only; not suitable for DC systems.

Where is it used?

Farmsteads and garden houses with solar panels and batteries
12/24 V DC LED lighting for yards, paths and signs
Automation panels with a 24 V AC/DC control circuit
Telecom, security and CCTV cabinets
Standard 230 V outdoor lighting – when one model is wanted for all sites
Control of blinds and shading by daylight

Use by need

For the electrician.
One model in stock instead of several – suitable for 12 V, 24 V and 230 V sites, no need to pick a relay by control voltage.

For the farmstead or garden house owner.
12/24 V LED lighting of a solar system switches on at dusk without a converter or an additional 230 V grid.

For the company or farm manager.
In automation panels with 24 V control the relay is connected directly to the existing supply – a simpler circuit and fewer devices.

Practical use

If a garden house has a 24 V DC solar system with a battery and the path LED luminaires (about 100 W) must light up at dusk, supply SOU-1/UNI directly from 24 V DC. Fix the sensor on the north wall, select LUX1, a threshold of about 10 lx and a delay of about 1 min. Connect the luminaires via contact 15–18. At 24 V DC a 100 W load draws about 4.2 A, well below the 384 W DC limit.

Pros

Universal supply 12–240 V AC/DC
Wide range 1–50,000 lx (two sub-ranges)
1CO changeover contact 16 A AC1, up to 384 W DC
Adjustable delay 0–2 min
Input S and TEST position
Only 1 module on the DIN rail

Cons / limitations

The contact switches DC voltage up to 24 V DC only; for higher DC voltage loads use an interposing relay or a contactor
16 A is rated for AC1 (resistive) load – for LED drivers with high inrush current use a modular contactor
No built-in timer – night-time switch-off requires a timer on input S

⚠ Safety and installation notes

Mount the sensor where daylight reaches it but the controlled luminaires do not – otherwise the relay will start switching itself off.
The relay housing is intended for a panel (IP40 from the front, IP20 terminals) – only the sensor is installed outdoors.
In the UNI version, illuminated push buttons (with glow lamps) must not be connected to input S.
In DC circuits observe the 24 V DC switching voltage limit and protect the circuit with a DC fuse or circuit breaker.
Sensor cable up to 50 m; do not route it together with power cables.
Installation must be carried out by a qualified electrician after disconnecting and verifying the absence of voltage.

Quick selection guide

12–240 V AC/DC

1–50,000 lx

1CO 16 A AC1

1 DIN module

Suitable when you need to:

a photo relay for a 12 V or 24 V AC/DC system, a solar or battery installation;
one model for sites with different control voltages;
a changeover contact and control both at dusk and by daylight.

Check before use:

the supply voltage and whether the controlled DC load stays within 24 V DC / 384 W;
load type and inrush current (LED – via a contactor);
where the sensor will be mounted and whether the cable stays within 50 m.

Important reminder: a photo relay controls lighting by light level, but it does not replace protective devices; in DC circuits use fuses or circuit breakers rated for DC.

☝ Elsprendimai.eu recommends:

Modular contactors – when the LED or floodlight group exceeds the relay's capability.
Modular time relays – a timer on input S to switch lighting off at night.
Photo relays and twilight switches – all twilight switches in one place.

FAQ

Can the relay be supplied from a 12 V battery?
Yes – the supply range is 12–240 V AC/DC with −15 % tolerance, so 12 V and 24 V DC systems are suitable.

Can the contact switch 12/24 V DC LED lighting?
Yes, up to 24 V DC and 384 W. For higher power or higher DC voltage use a contactor or an interposing relay.

Is it suitable for standard 230 V lighting?
Yes – the relay also runs on 230 V AC, and the contact switches up to 16 A AC1.

Which range should I choose?
For outdoor lighting – LUX1 (1–100 lx); for blinds and daylight-based control – LUX2 (100–50,000 lx).

What does IP20 in product names mean?
It is the protection of the relay terminals in the panel (front panel – IP40). Only the external sensor is installed outdoors.

How far can the sensor be?
Up to 50 m from the relay, using a standard wire.
