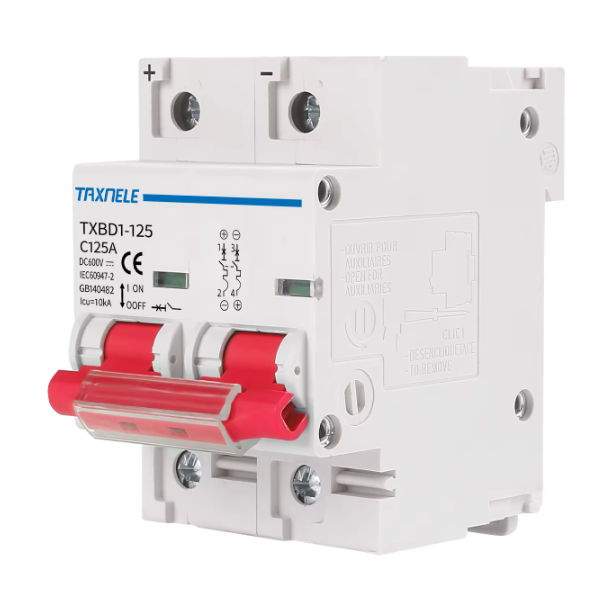

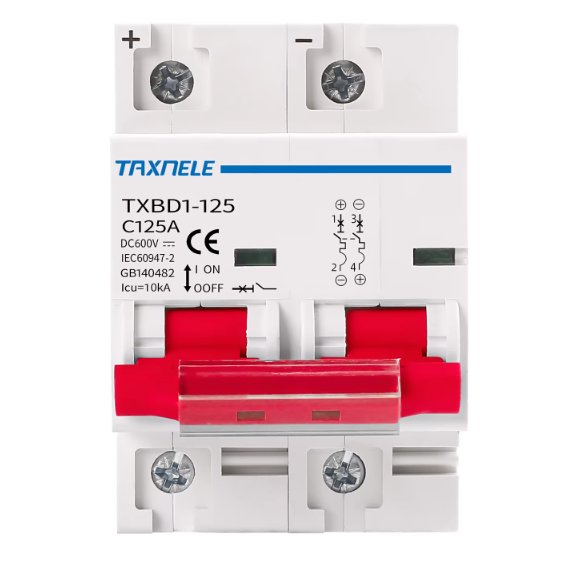

    Modular protective DC circuit breaker for solar modules 2P | 125A | 600VDC | 10kA | DIN

    Code: ES-TXBD1-125

    A miniature circuit breaker (MCB) designed for solar (photovoltaic) energy systems, ensuring safe current control and effective circuit protection against overcurrents or short circuits. It is an essential component for engineers, electricians, and home users looking to install or upgrade solar energy systems with high safety and durability standards.

  • Technical Specifications:

    Product Type: Solar DC Miniature Circuit Breaker (MCB)

    Number of Poles: 2P

    Rated Current (In): 1–125 A

    Rated Operating Voltage: DC 12–600 V

    Rated Insulation Voltage (Ui): 800 VDC

    Maximum Breaking Capacity (Icu): 10 kA

    Mechanical Lifespan: 20,000 cycles

    Electrical Lifespan: 10,000 cycles

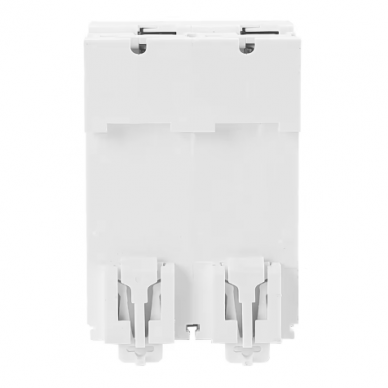

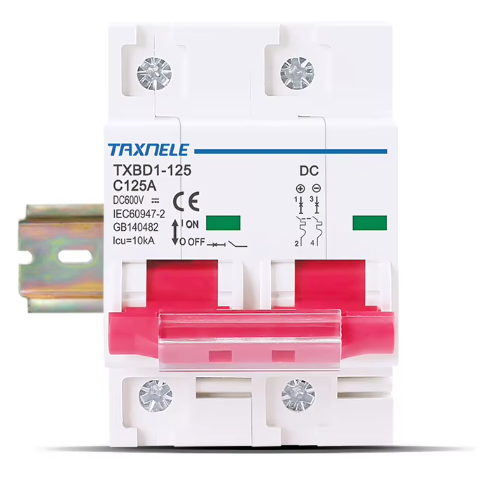

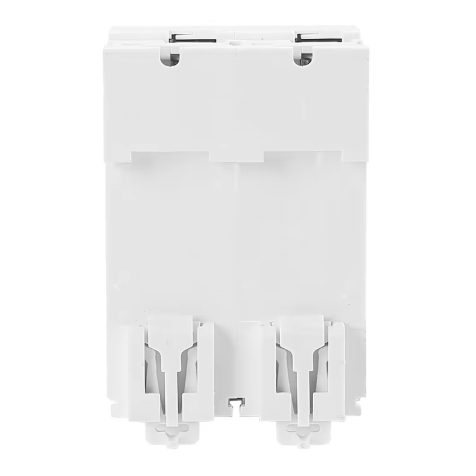

    Mounting: DIN rail

    Enclosure: Resistant to UV, heat, and vibrations

    Features:

    Protection against short circuits and overcurrent in DC circuits

    Safe disconnection even under high current conditions

    Suitable for photovoltaic (PV) systems in both residential and industrial applications

    Compatible with DC systems ranging from 12 V to 600 V

    Compact design allows easy integration into existing systems

    Double pole design ensures safer disconnection

    Applications:

    Solar power plants (PV) up to 600V DC

    Battery protection and disconnection

    DC distribution panels

    Safe disconnection of inverters and battery banks

    Voltage distribution boxes in residential and industrial systems

    Advantages:

    Wide voltage range (12–600 VDC) – suitable for many solar systems

    High current capacity up to 125 A – can be used in high-power devices

    Quick response to overcurrent or short circuit – protects expensive equipment

    Compact design – fits into limited spaces

    Long service life – up to 20,000 mechanical cycles

    DIN rail mounting

    Disadvantages:

    Not suitable for AC (alternating current) circuits

    Requires proper voltage polarity to be maintained

    The DC miniature circuit breaker is a highly reliable and professional solution for anyone working with solar energy systems. It ensures not only operational efficiency but also maximum safety – both in residential and industrial environments. Thanks to its wide voltage and current range, this breaker can be easily adapted to various DC installations, and its long service life guarantees lower maintenance costs and improved system reliability.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
