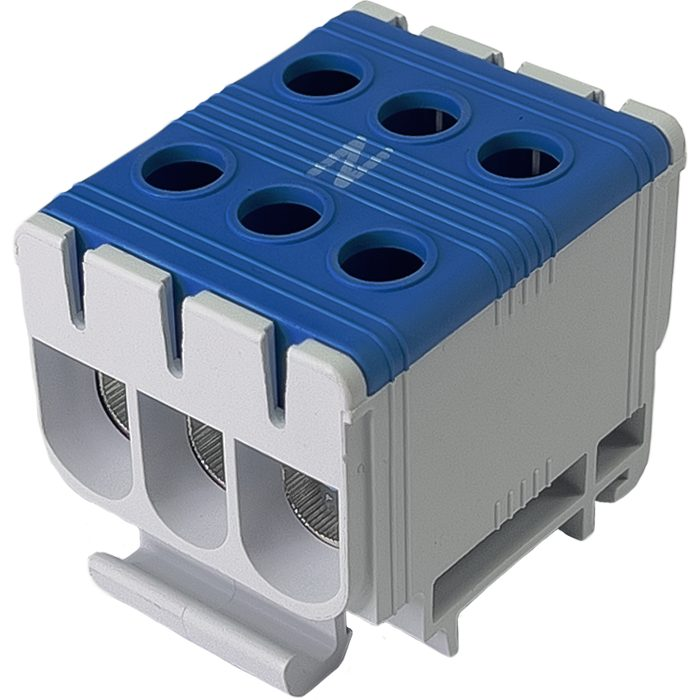

Power terminal | for wire connection | Cu/Al: 135/120A | Al/Cu: 3x2.5-35mm² | DIN | blue | Promfactor Baltic FT1035N3

Technical Data:
Standards: IEC/EN 61238-1, IEC/EN 60947-7-1
Number of poles: 3
Number of contacts: 6
Rated voltage (Un): 1000 V (AC) / 1500 V (DC)
Rated current (In), (Cu/Al): 135/120 A
Conductor cross-section (Cu/Al): 2.5...35/2.5...35 mm2
Screw tightening torque, Nm: 3 - (2.5...16 mm2); 6 - (25...35 mm2)
Housing material: RA66 polyamide (resistant to temperature, mechanical damage)
Terminal material: Aluminum alloy
Protection rating: IP20
Mounting: 35x7.5 mm DIN rail
Operating temperature range: -25°C ... +55°C
Storage temperature range: -25°C ... +70°C

Purpose and Applications:

The connection terminal is designed for:

Electrical distribution cabinets – for reliable wire connections
Industrial installations – used in factories, warehouses, logistics centers
Building electrical installations – suitable for residential and commercial spaces
Automation and control systems – used in distribution boxes, electrical cabinets
Pros:
Versatility – supports both copper and aluminum wires
High rated voltage – up to 1500 V DC and 1000 V AC
Reliable connection – high tightening torque ensures secure contact
Temperature-resistant – operates from -25°C to +55°C
Easy installation – fits standard 35x7.5 mm DIN rails

Cons:
IP20 protection – no protection against dust or moisture, must be installed in enclosed cabinets
Proper tightening torque required – too low may cause connection loss, too high may damage the terminal

A reliable and versatile connection terminal for efficient wiring in electrical distribution cabinets and automation systems. Ensures a secure electrical connection, easy installation, and supports both copper and aluminum wires.
