  • Power distribution terminal | 1P | 245/220 A (Cu/Al) | Cu 16–95 mm² / Al 16–95 mm² | 1000 V AC | DIN 35 | blue (N) | Promfactor Baltic | FT1095N

    Code: FT1095N
    Barcode: 4772151002832

    Promfactor Baltic FT1095N – 1P terminal 245/220 A, 1000 V AC / 1500 V DC, Cu 16–95 / Al 16–95 mm², blue (N), DIN rail mounted.

  • Power distribution terminal | 1P | 245/220 A (Cu/Al) | Cu 16–95 mm² / Al 16–95 mm² | 1000 V AC | DIN 35 | blue (N) | Promfactor Baltic | FT1095N

    FT1095N – a Promfactor Baltic FT series 1P power distribution (connection) terminal for copper and aluminium conductors: Cu 16–95 mm², Al 16–95 mm², rated current 245 A (Cu) / 220 A (Al), rated voltage 1000 V AC / 1500 V DC. The blue housing is intended for the neutral (N) circuit; the terminal is mounted on a 35×7.5 mm DIN rail.

    Key idea:
    The terminal connects and distributes neutral conductors in the panel at one clearly marked point. One pole has 2 contacts – the incoming conductor is connected on one side and the outgoing one on the other, and the aluminium alloy clamps accept both Cu and Al conductors.
    Rated current (Cu/Al)
    245 A (Cu) / 220 A (Al)
    Rated voltage
    1000 V AC / 1500 V DC
    Cross-section
    Cu 16–95 mm² / Al 16–95 mm²
    Poles / colour
    1P (2 contacts), blue – N

    Operating principle

    FT1095N is clipped onto a 35×7.5 mm DIN rail in the distribution board, and the row ends are secured with an EW-35 end stop. The conductor is stripped to the clamp depth; an aluminium conductor is cleaned of oxide and coated with contact paste, then inserted into the clamp and tightened to the torque specified on the product page: 20 Nm (16–95 mm²).

    The terminal pole has 2 contacts (2 in total); the aluminium alloy clamps accept 16–95 mm² copper and 16–95 mm² aluminium conductors. Rated current – 245 A (Cu) / 220 A (Al), rated voltage – 1000 V AC / 1500 V DC, polyamide housing, degree of protection IP20.

    Result – a tidy location for neutral connections: the blue housing clearly indicates the circuit function, connections are easy to check and retighten during maintenance, and the control panel is assembled without improvised connections.

    Benefits FT1095N?
    One terminal for Cu and Al wires (16–95 mm² Cu / 16–95 mm² Al), 245 A (Cu) / 220 A (Al), 1000 V AC / 1500 V DC, N colour coding and 1P design – fewer parts in stock and a clearer control panel layout.

    Technical specifications

    Product type Power distribution (connection) terminal
    Manufacturer / code Promfactor Baltic / FT1095N
    Series FT (1P, 2P, 3P; Cu/Al 1.5–16 … 35–240 mm²; blue, green-yellow, grey)
    Standards IEC/EN 60947-7-1, IEC/EN 61238-1
    Number of poles 1
    Number of contacts 2
    Rated voltage (Un) 1000 V AC / 1500 V DC
    Rated current (In) 245 A (Cu) / 220 A (Al)
    Copper conductors (Cu) 16–95 mm²
    Aluminium conductors (Al) 16–95 mm²
    Screw tightening torque 20 Nm (16–95 mm²)
    Housing material Polyamide PA66
    Clamp material Aluminium alloy
    Degree of protection IP20
    Installation 35×7.5 mm DIN rail
    Operating temperature -25…+55 °C
    Storage temperature -25…+70 °C
    Enclosure colour blue
    Circuit by colour Neutral N
    Code structure FT10xx – max. cross-section mm²; N – blue, G – green-yellow, F – grey; no suffix – 1P, 2 – 2P, 3 – 3P

    Main functions

    • Cu and Al conductors – one terminal accepts copper 16–95 mm² and aluminium 16–95 mm² conductors.
    • Rated current and voltage – 245 A (Cu) / 220 A (Al), 1000 V AC / 1500 V DC – suitable for both AC and DC circuits.
    • Wide cross-section range – from 16 to 95 mm² (Cu) – the incoming cable and branches are connected with terminals of the same series.
    • Colour coding – the blue housing immediately identifies the N circuit – fewer errors during installation and maintenance.
    • 1P, 2 contacts – one pole with input and output clamps – a freely configurable row.
    • Screw clamp – tightening torque 20 Nm (16–95 mm²) – the connection can be checked and retightened during maintenance.
    • Mounting on a 35×7.5 mm DIN rail – the terminal is placed in a common row with other FT series terminals, and the ends are secured with EW-35.
    • Unified series – the same cross-section is available in blue, green-yellow and grey and in 1P, 2P and 3P versions – N, PE and L connections have the same design.
    • Standards – IEC/EN 60947-7-1, IEC/EN 61238-1 – standards applicable to terminals and Cu/Al connections.

    Where is it used?

    • Building incoming and metering control panels
    • Industrial distribution boards
    • Main cable branches
    • AC panels of larger solar power plants
    • Production line supply panels
    • Supply for EV charging parks
    • Connection of 16–95 mm² aluminium cables

    On-demand operation

    For assemblers of industrial and commercial control panels.
    The Cu and Al range of 16–95 mm² is intended for main and incoming cables, and the smallest connectable conductor is 16 mm².
    For control panel assemblers forming an N busbar.
    The blue housing immediately identifies the neutral circuit, so N connections in the control panel are recognisable without additional markers.
    For designers who prefer a modular row.
    1P terminals are fitted one at a time, so it is easy to build a row with exactly as many poles as needed.

    Practical application

    If a 95 mm² aluminium cable is used at the incomer of an industrial panel, then FT1095N (1P, 245 A (Cu) / 220 A (Al), Cu 16–95 mm² / Al 16–95 mm², blue) is used as the N circuit connection point, and the clamps are tightened to 20 Nm according to the conductor cross-section.

    Application guide: how it is used in practice

    FT1095N adapts to different panels – only the cross-section of the connected cable and which conductors are routed onwards change:

    Site What is connected Result Installer's note
    Building main incoming control panel Incoming N conductor up to 95 mm² The incomer is connected to the distribution section Minimum conductor – 16 mm²
    Industrial distribution board Main cable 50–95 mm² Branches to sub-panels Secure the cable so that its weight does not load the terminal
    Aluminium cable connection Al N conductor 16–95 mm² Al cable is connected without additional adapters Strip the Al conductor clean and coat it with contact paste
    Terminal row on a DIN rail FT1095N together with FT1095G, FT1095F N, PE and L connections are arranged in a clear order Fit EW-35 at the ends of the row

    How to select an FT series connection terminal

    Cross-section (Cu / Al), poles, colour Recommended model
    Cu 1.5–16 / Al 1.5–16 mm², 1P, blue, 85 A FT1016N (1P, for the N circuit)
    Cu 1.5–16 / Al 1.5–16 mm², 1P, green-yellow, 85 A FT1016G (1P, for the PE circuit)
    Cu 1.5–16 / Al 1.5–16 mm², 1P, grey, 85 A FT1016F (1P, for the L circuit)
    Cu 2.5–35 / Al 2.5–35 mm², 1P, blue, 135/120 A FT1035N (1P, for the N circuit)
    Cu 2.5–35 / Al 2.5–35 mm², 1P, green-yellow, 135/120 A FT1035G (1P, for the PE circuit)
    Cu 2.5–35 / Al 2.5–35 mm², 1P, grey, 135/120 A FT1035F (1P, for the L circuit)
    Cu 2.5–50 / Al 6–50 mm², 1P, blue, 160/145 A FT1050N (1P, for the N circuit)
    Cu 2.5–50 / Al 6–50 mm², 1P, green-yellow, 160/145 A FT1050G (1P, for the PE circuit)
    Cu 2.5–50 / Al 6–50 mm², 1P, grey, 160/145 A FT1050F (1P, for the L circuit)
    Cu 16–95 / Al 16–95 mm², 1P, blue, 245/220 A FT1095N (1P, for the N circuit) ← this model
    Cu 16–95 / Al 16–95 mm², 1P, green-yellow, 245/220 A FT1095G (1P, for the PE circuit)
    Cu 16–95 / Al 16–95 mm², 1P, grey, 245/220 A FT1095F (1P, for the L circuit)
    Cu 35–150 / Al 35–150 mm², 1P, blue FT1150N (1P, for the N circuit)
    Cu 35–150 / Al 35–150 mm², 1P, green-yellow FT1150G (1P, for the PE circuit)
    Cu 35–150 / Al 35–150 mm², 1P, grey FT1150F (1P, for the L circuit)
    Cu 35–240 / Al 35–240 mm², 1P, blue FT1240N (1P, for the N circuit)
    Cu 35–240 / Al 35–240 mm², 1P, green-yellow FT1240G (1P, for the PE circuit)
    Cu 35–240 / Al 35–240 mm², 1P, grey FT1240F (1P, for the L circuit)
    Cu 1.5–16 / Al 1.5–16 mm², 2P, blue, 85 A FT1016N2 (2P, for the N circuit)
    Cu 1.5–16 / Al 1.5–16 mm², 2P, green-yellow, 85 A FT1016G2 (2P, for the PE circuit)
    Cu 1.5–16 / Al 1.5–16 mm², 2P, grey, 85 A FT1016F2 (2P, for the L circuit)
    Cu 2.5–35 / Al 2.5–35 mm², 2P, blue, 135/120 A FT1035N2 (2P, for the N circuit)
    Cu 2.5–35 / Al 2.5–35 mm², 2P, green-yellow, 135/120 A FT1035G2 (2P, for the PE circuit)
    Cu 2.5–35 / Al 2.5–35 mm², 2P, grey, 135/120 A FT1035F2 (2P, for the L circuit)
    Cu 2.5–50 / Al 6–50 mm², 2P, blue, 160/145 A FT1050N2 (2P, for the N circuit)
    Cu 2.5–50 / Al 6–50 mm², 2P, green-yellow, 160/145 A FT1050G2 (2P, for the PE circuit)
    Cu 2.5–50 / Al 6–50 mm², 2P, grey, 160/145 A FT1050F2 (2P, for the L circuit)
    Cu 16–95 / Al 16–95 mm², 2P, blue, 245/220 A FT1095N2 (2P, for the N circuit)
    Cu 16–95 / Al 16–95 mm², 2P, green-yellow, 245/220 A FT1095G2 (2P, for the PE circuit)
    Cu 16–95 / Al 16–95 mm², 2P, grey, 245/220 A FT1095F2 (2P, for the L circuit)
    Cu 35–150 / Al 35–150 mm², 2P, blue FT1150N2 (2P, for the N circuit)
    Cu 35–150 / Al 35–150 mm², 2P, green-yellow FT1150G2 (2P, for the PE circuit)
    Cu 35–150 / Al 35–150 mm², 2P, grey FT1150F2 (2P, for the L circuit)
    Cu 35–240 / Al 35–240 mm², 2P, blue FT1240N2 (2P, for the N circuit)
    Cu 35–240 / Al 35–240 mm², 2P, green-yellow FT1240G2 (2P, for the PE circuit)
    Cu 35–240 / Al 35–240 mm², 2P, grey FT1240F2 (2P, for the L circuit)
    Cu 1.5–16 / Al 1.5–16 mm², 3P, blue, 85 A FT1016N3 (3P, for the N circuit)
    Cu 1.5–16 / Al 1.5–16 mm², 3P, green-yellow, 85 A FT1016G3 (3P, for the PE circuit)
    Cu 1.5–16 / Al 1.5–16 mm², 3P, grey, 85 A FT1016F3 (3P, for the L circuit)
    Cu 2.5–35 / Al 2.5–35 mm², 3P, blue, 135/120 A FT1035N3 (3P, for the N circuit)
    Cu 2.5–35 / Al 2.5–35 mm², 3P, green-yellow, 135/120 A FT1035G3 (3P, for the PE circuit)
    Cu 2.5–35 / Al 2.5–35 mm², 3P, grey, 135/120 A FT1035F3 (3P, for the L circuit)
    Cu 2.5–50 / Al 6–50 mm², 3P, blue, 160/145 A FT1050N3 (3P, for the N circuit)
    Cu 2.5–50 / Al 6–50 mm², 3P, green-yellow, 160/145 A FT1050G3 (3P, for the PE circuit)
    Cu 2.5–50 / Al 6–50 mm², 3P, grey, 160/145 A FT1050F3 (3P, for the L circuit)
    Cu 16–95 / Al 16–95 mm², 3P, blue, 245/220 A FT1095N3 (3P, for the N circuit)
    Cu 16–95 / Al 16–95 mm², 3P, green-yellow, 245/220 A FT1095G3 (3P, for the PE circuit)
    Cu 16–95 / Al 16–95 mm², 3P, grey, 245/220 A FT1095F3 (3P, for the L circuit)
    Cu 35–150 / Al 35–150 mm², 3P, blue FT1150N3 (3P, for the N circuit)
    Cu 35–150 / Al 35–150 mm², 3P, green-yellow FT1150G3 (3P, for the PE circuit)
    Cu 35–150 / Al 35–150 mm², 3P, grey FT1150F3 (3P, for the L circuit)
    Cu 35–240 / Al 35–240 mm², 3P, blue FT1240N3 (3P, for the N circuit)
    Cu 35–240 / Al 35–240 mm², 3P, green-yellow FT1240G3 (3P, for the PE circuit)
    Cu 35–240 / Al 35–240 mm², 3P, grey FT1240F3 (3P, for the L circuit)
    Cu/Al 2.5–35 mm², 3P+N+PE FT503500 (five-pole block for a three-phase line)
    Cu 2.5–50 / Al 6–50 mm², 3P+N+PE FT505000 (five-pole block for a three-phase line)
    Rule: choose the terminal according to the smallest and largest conductor to be connected (Cu and Al ranges differ in FT1050 models), the colour according to the circuit (N – blue, G – green-yellow PE, F – grey for phase L), and the number of poles according to how many separate lines need to be connected; for a three-phase line with N and PE in one block, FT503500 and FT505000 are available.
    When to choose another solution: other colours – FT1095G, FT1095F; other number of poles – FT1095N2, FT1095N3; for thicker cables – FT1150 (35–150 mm²) or FT1240 (35–240 mm²); 3P+N+PE blocks – FT503500, FT505000; distribution terminals DTB080–DTB500; insulated terminals F807–F815; DIN rails FD010100–FD011000; end stop EW-35.

    Pros

    • Rated current 245 A (Cu) / 220 A (Al), voltage 1000 V AC / 1500 V DC
    • Copper 16–95 mm² and aluminium 16–95 mm² conductors
    • Colour coding of the N circuit (blue)
    • 1P, 2 contacts – freely configurable row
    • Standards IEC/EN 60947-7-1, IEC/EN 61238-1
    • Polyamide PA66 housing, operating temperature -25…+55 °C
    • Mounting on a 35×7.5 mm DIN rail

    Cons / limitations

    • Degree of protection IP20 – install only in closed panels or cabinets
    • The minimum wire is 16 mm², so for thinner conductors choose FT1050 or FT1035; for conductors thicker than 95 mm² – FT1150 or FT1240
    • Fixed colour – for a different circuit you will need FT1095G, FT1095F
    • Single pole – a three-phase line requires several terminals or the FT503500 / FT505000 block
    • Correct tightening torque and Al conductor preparation (oxide removal, contact paste) are essential

    Safety and installation notes

    • Installation and connection must be carried out only by a qualified electrician after disconnecting the supply and verifying that the circuit is de-energised.
    • Do not exceed the rated current of 245 A (Cu) / 220 A (Al) and the rated voltage of 1000 V AC / 1500 V DC.
    • Tighten the clamps to the specified torque – 20 Nm (16–95 mm²) – and check the connections after the first load and during periodic maintenance.
    • The terminal is IP20 – install only in a closed panel or cabinet, operating temperature -25…+55 °C.
    • Use the blue terminal only for the neutral (N) circuit; fit an EW-35 end stop at the ends of the row.

    Quick selection guide

    1P
    245/220 A
    1000 V AC / 1500 V DC
    Cu 16–95 / Al 16–95 mm²
    blue (N)
    DIN 35
    IP20
    Suitable when you need:
    • connect or distribute neutral (N) conductors in the control panel;
    • connect copper 16–95 mm² and aluminium 16–95 mm² conductors up to 245 A (Cu) / 220 A (Al);
    • one pole per conductor, with a freely configurable row.
    Check before use:
    • the smallest and largest conductor to be connected – whether it fits Cu 16–95 mm² / Al 16–95 mm²;
    • load current – no more than 245 A (Cu) / 220 A (Al);
    • circuit – the blue housing corresponds to N; other circuits will require FT1095G, FT1095F.
    Important reminder: FT1095N – 1P blue terminal for the N circuit; versions in other colours and pole counts, as well as EW-35, are ordered separately.

    FAQ

    What does the letter N mean in the code FT1095N?
    The letter N denotes a blue housing for the N circuit; in the FT series, N stands for the blue, G for the green-yellow and F for the grey version.
    What wire cross-sections can be connected?
    Copper 16–95 mm² and aluminium 16–95 mm² conductors; Al conductors must be cleaned of oxide and coated with contact paste before connection.
    How many poles and contacts does FT1095N have?
    FT1095N is a 1P terminal with 2 contacts (2 per pole); in the FT series, a code without a suffix means 1P, suffix 2 – 2P, suffix 3 – 3P.
    What are the rated current and voltage?
    Rated current 245 A (Cu) / 220 A (Al), rated voltage 1000 V AC / 1500 V DC.
    What tightening torque should be used for the screws?
    Depending on the conductor cross-section: 20 Nm (16–95 mm²).
    How is the terminal installed?
    The terminal is clipped onto a 35×7.5 mm DIN rail, and an EW-35 end stop is fitted at the ends of the row.

    Power distribution terminal | 1P | 245/220 A (Cu/Al) | Cu 16–95 mm² / Al 16–95 mm² | 1000 V AC | DIN 35 | blue (N) | Promfactor Baltic | FT1095N

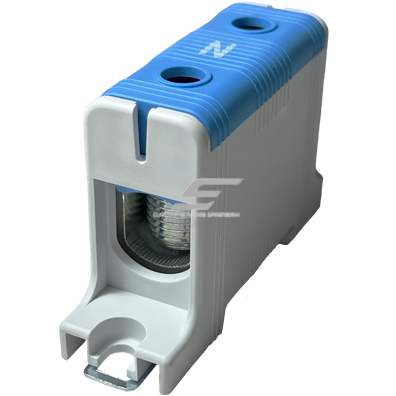

    Promfactor Baltic FT1095N – 1P power distribution terminal 245 A (Cu) / 220 A (Al), 1000 V AC / 1500 V DC, for copper 16–95 mm² and aluminium 16–95 mm² wires, blue housing for the N circuit, IP20, DIN rail mounting, IEC/EN 60947-7-1, IEC/EN 61238-1.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
  • Alternative products

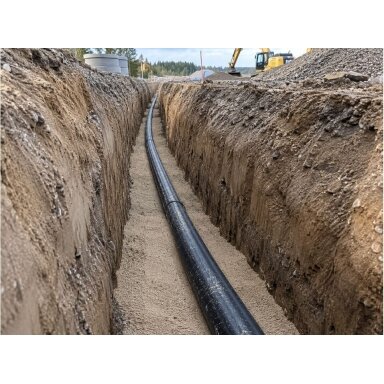

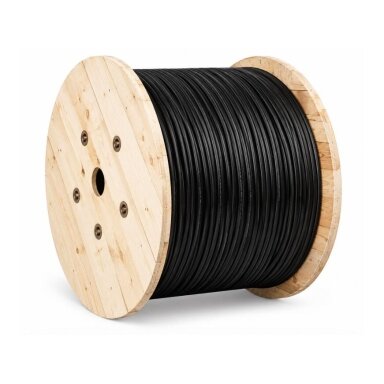

    Aluminium power cable | 4x50mm² | AXMK | Class 2 | 1500m | Black
