Programmable digital thermostat | actuator module for TPA/TLO radiator | 230V | 5-24VAC/DC | IP20 | ADAX | Glamox Heating SLA 5/24

Thermostat actuator module | 5–24 V AC/DC control signal | 230 V | IP20 | for Glamox Heating TPA/TLO radiators | SLA 5/24

Glamox Heating SLA 5/24 – a thermostat actuator module designed for Glamox Heating TPA/TLO electric radiators and control from a separate external thermostat controller.

SLA 5/24 operates as an intermediate module between the radiator and the controlling thermostat. According to the supplied technical information, the radiator switches on when SLA 5/24 receives a 5–24 V AC or DC control signal from the thermostat controller.

The module and thermostat controller are connected by wire in a separate control circuit. SLA 5/24 itself operates in a 230 V system, has an IP20 protection rating and is supplied with a 5-year warranty.

SLA 5/24 is intended for systems where a Glamox Heating TPA/TLO radiator is switched by a low-voltage 5–24 V AC/DC signal. The external thermostat controller makes the temperature control decision, while SLA 5/24 executes the command in the radiator.

Control principle: the thermostat controller sends a 5–24 V AC/DC signal, and SLA 5/24 switches the radiator on according to this signal.

According to the supplied technical table, SLA 5/24 is controlled by a 5–24 V signal. The signal can be alternating current (AC) or direct current (DC).

Important: the control thermostat must be suitable for the 5–24 V AC/DC control signal required by the SLA 5/24 module.

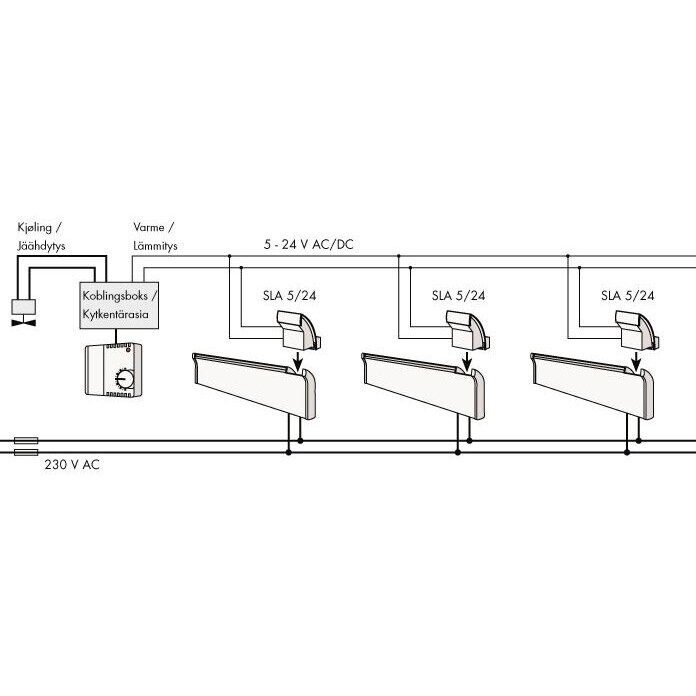

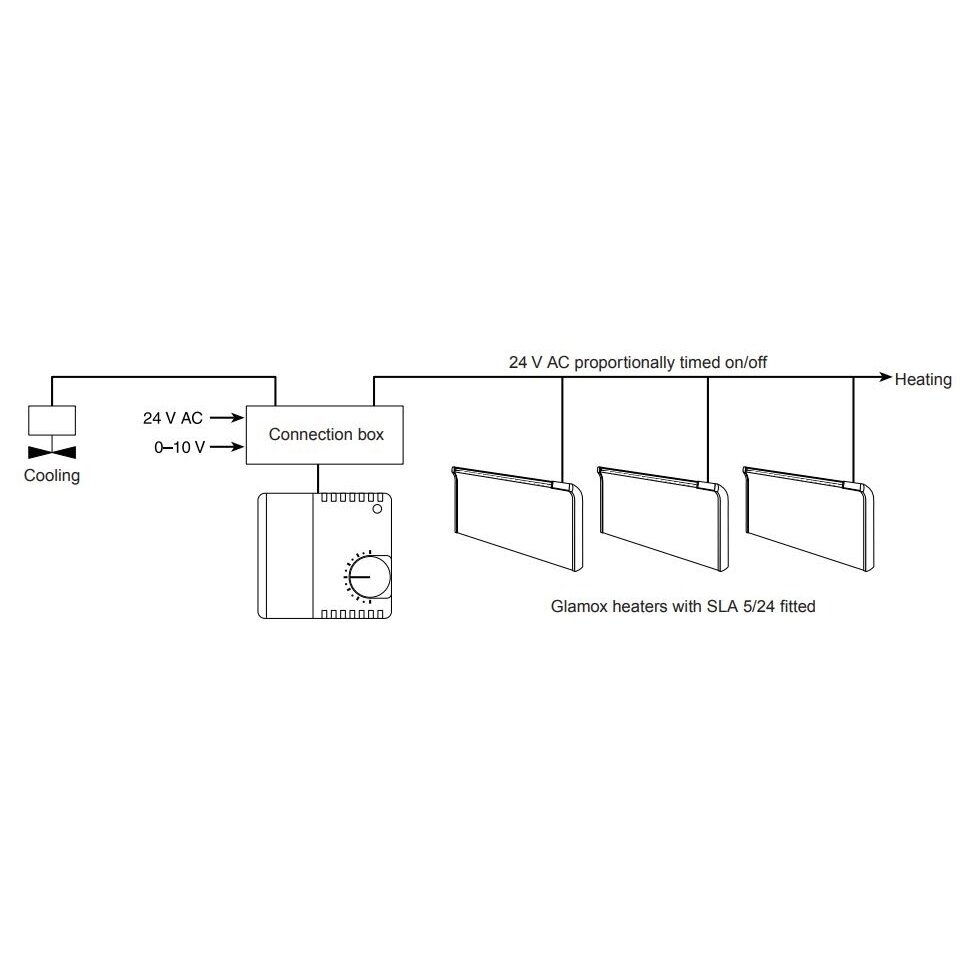

System logic: the external thermostat determines the room temperature demand, while SLA 5/24 acts as the actuator module in the radiator.

• In Glamox Heating TPA electric radiators.
• In Glamox Heating TLO electric radiators.
• In systems where the radiator is controlled by an external thermostat controller.
• In systems using a 5–24 V AC/DC control signal.
• In applications where temperature control is separated from the radiator itself.
• In wired external heating control systems.

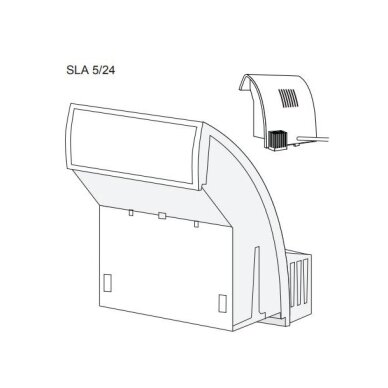

• SLA 5/24 is installed in a compatible Glamox Heating TPA or TLO radiator.

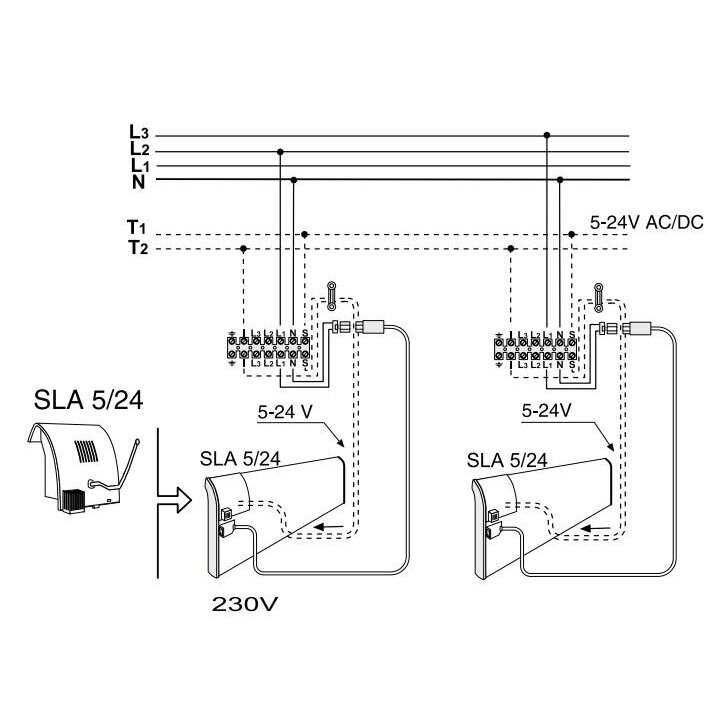

• The module and controlling thermostat are connected by wire in a separate control circuit.
• Control signal – 5–24 V AC or DC.
• Rated module voltage – 230 V.
• Protection rating – IP20.
• The electrical installation and control circuit connection must be carried out by a qualified specialist.

• SLA 5/24 is not a standalone room thermostat.
• The main control element is the external thermostat controller.
• The controlling device must be compatible with 5–24 V AC/DC signal control.
• Compatibility with the specific TPA/TLO radiator must be checked before ordering.
• The control and 230 V power circuits must be installed in accordance with electrical installation requirements.

Glamox Heating SLA 5/24 | 5–24 V AC/DC controlled actuator module | for TPA/TLO radiators

Glamox Heating SLA 5/24 – a 230 V thermostat actuator module for Glamox Heating TPA/TLO radiators. The module is controlled by a 5–24 V AC or DC signal from an external thermostat controller, to which it is connected via a separate wired control circuit. IP20 protection rating and 5-year warranty.
