Products catalog

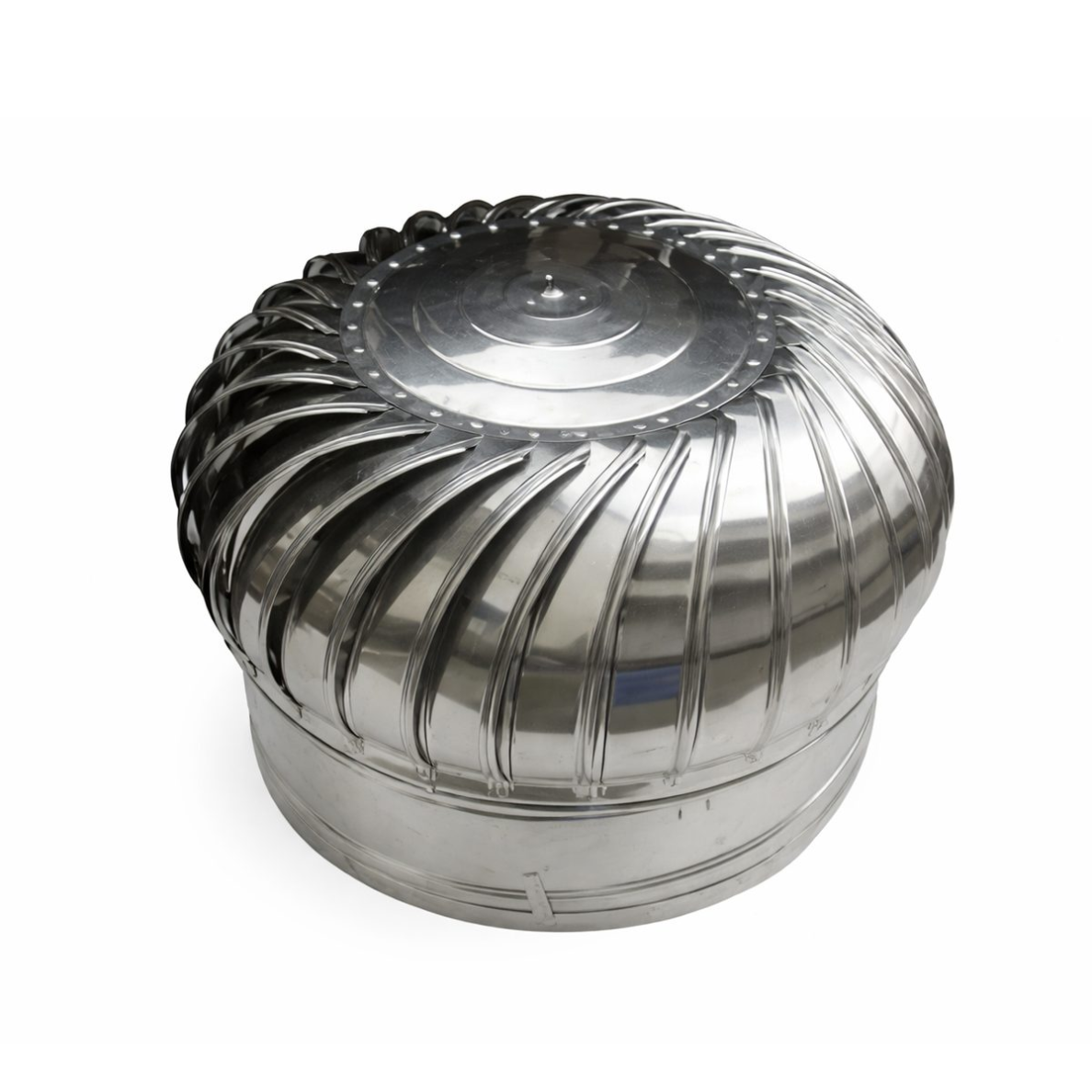

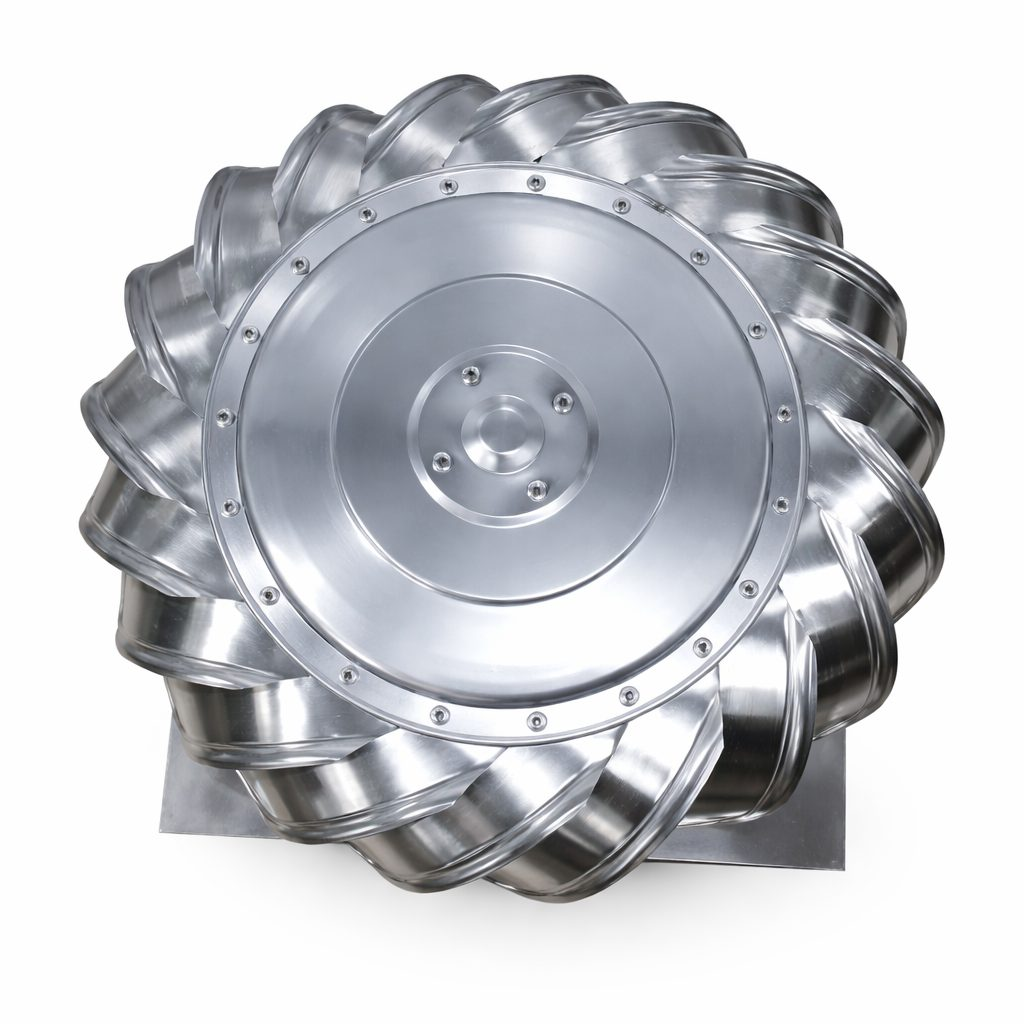

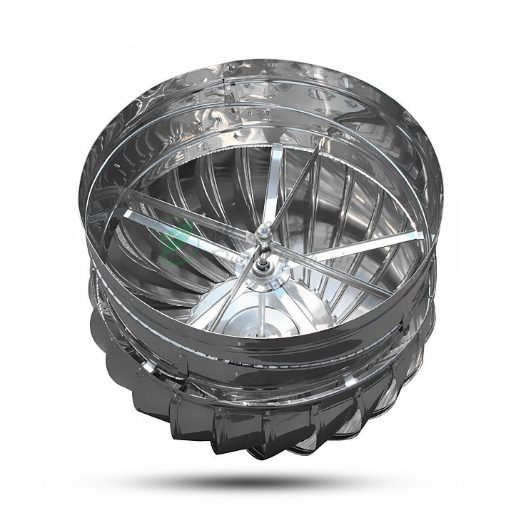

  • Roof rotary deflector 110 mm | ball bearings | stainless steel | no electricity

    Code: ES-YMD110

    Stainless steel roof rotary deflector 110 mm with ball bearings and stainless steel vanes. Naturally extracts warm and humid air without electricity.

  • Stainless steel roof rotary deflector 110 mm

    A roof rotary deflector is a turbine driven by wind and temperature difference that extracts warm, humid or polluted air from a building. No electricity needed, no motor.

    Key point

    The housing and vanes are made of stainless steel, and the head rotates on ball bearings. It is a solution for buildings where durability and an aggressive environment matter: livestock farms, warehouses, workshops. For the turbine to extract air, the building must have air inlet openings.

    Diameter
    110 mm
    Material
    Stainless steel
    Bearings
    ball
    Type
    No electricity

    ⚠ For ventilation only

    The deflector is intended for ventilation ducts only – to extract humid and warm air. Do not install it on flues of stoves, fireplaces, sauna heaters or boilers: hot flue gases and acidic condensate will damage it, and there is a risk of fire and carbon monoxide (CO) poisoning.

    How it works

    • The turbine is installed over a roof opening or on a base at the highest point.
    • Wind and rising warm air spin the head, which extracts air from the building.
    • Outdoor air must enter through inlet openings low in the walls – otherwise extraction is weak.
    operating principle and estimated air extraction | elsprendimai.eu
    ☝ Click the diagram to open an enlarged version.

    Estimated air extraction – 110 mm

    Wind speed 2 m/s 4 m/s 6 m/s
    Air extraction, m³/h 30 55 85

    Indicative estimate, not manufacturer data: actual flow depends on duct length and resistance, temperature difference and air supply to the room. Without wind, the duct works by natural draught.

    Technical specifications

    Product type Roof rotary deflector (wind turbine)
    Diameter 110 mm
    Material Stainless steel
    Vanes Stainless steel
    Bearings Ball
    Power supply Not required
    Installation On the roof / on a base
    Purpose Air extraction
    Manufacturer Elsp Group

    Where it is used

    • Livestock and poultry farms – removal of moisture and odours
    • Warehouses, hangars, workshops – removal of excess heat
    • Workshops, garages
    • Agricultural buildings

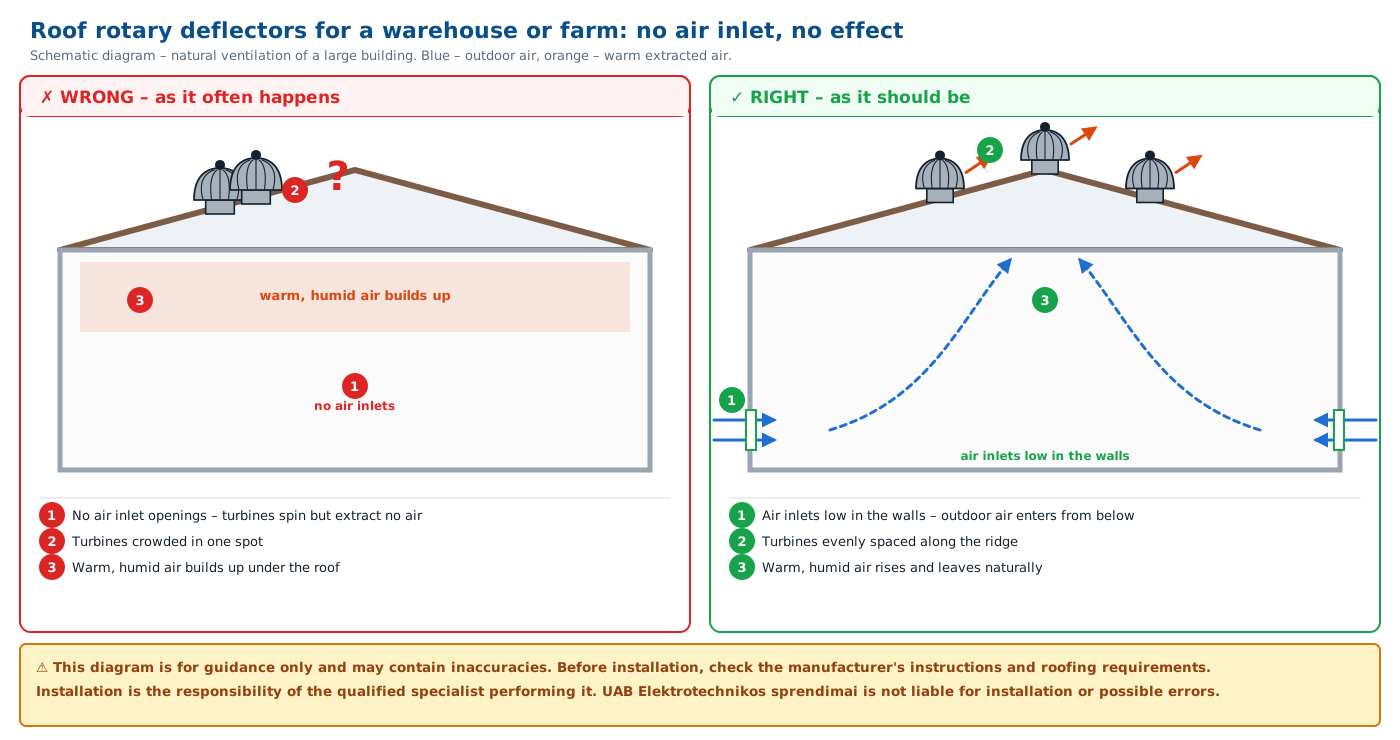

    Installation diagram: common mistakes and the correct way

    Stainless steel roof rotary deflector 110 mm – installation diagram: wrong and right | elsprendimai.eu
    ☝ Click the diagram to open an enlarged version.
    ⚠ The diagram is for guidance only and may contain inaccuracies. Before installation, check it against the manufacturer's instructions and the roofing requirements.
    Responsibility for installation lies with the qualified specialist performing it. UAB „Elektrotechnikos sprendimai“ is not liable for installation or possible errors.
    ☝ Elsprendimai.eu recommends:

    ✓ Pros

    • Works without electricity or a motor
    • Stainless housing and vanes – suitable for aggressive environments
    • Ball bearings – low friction, smooth rotation
    • Quiet operation

    → Limitations

    • Extraction depends on wind and temperature difference
    • Without air inlet openings the effect is minimal
    • The number and layout of turbines must be matched to the building volume

    ⚠ Installation and maintenance

    • Install at the highest point of the roof; place several turbines evenly along the ridge.
    • Provide air inlet openings low in the walls.
    • Fix mechanically and seal the joint according to the roofing requirements.
    • Once a year check that the head rotates freely.
    • Roof work is work at height: use fall protection equipment.

    FAQ

    How many turbines does a building need?

    It depends on the building volume, the required air change rate and wind conditions – send us the building data and we will help you assess it.

    Does it work without wind?

    Less effectively – extraction is maintained by rising warm air, but the greatest effect is achieved when the wind blows.

    Why are inlet openings needed?

    The turbine can only extract as much air as enters the building – without inlets it turns but draws air weakly.

    Is it suitable for a flue?

    No – the turbine is designed to extract room air.

    In short

    Stainless steel roof rotary deflector 110 mm – natural ventilation of large buildings without electricity. Combine with air inlet openings. Unsure about the size or roofing? Send us the duct diameter and roof type – we will help you choose.

    Phone: +370 620 72733
    E-mail: info@elsprendimai.eu

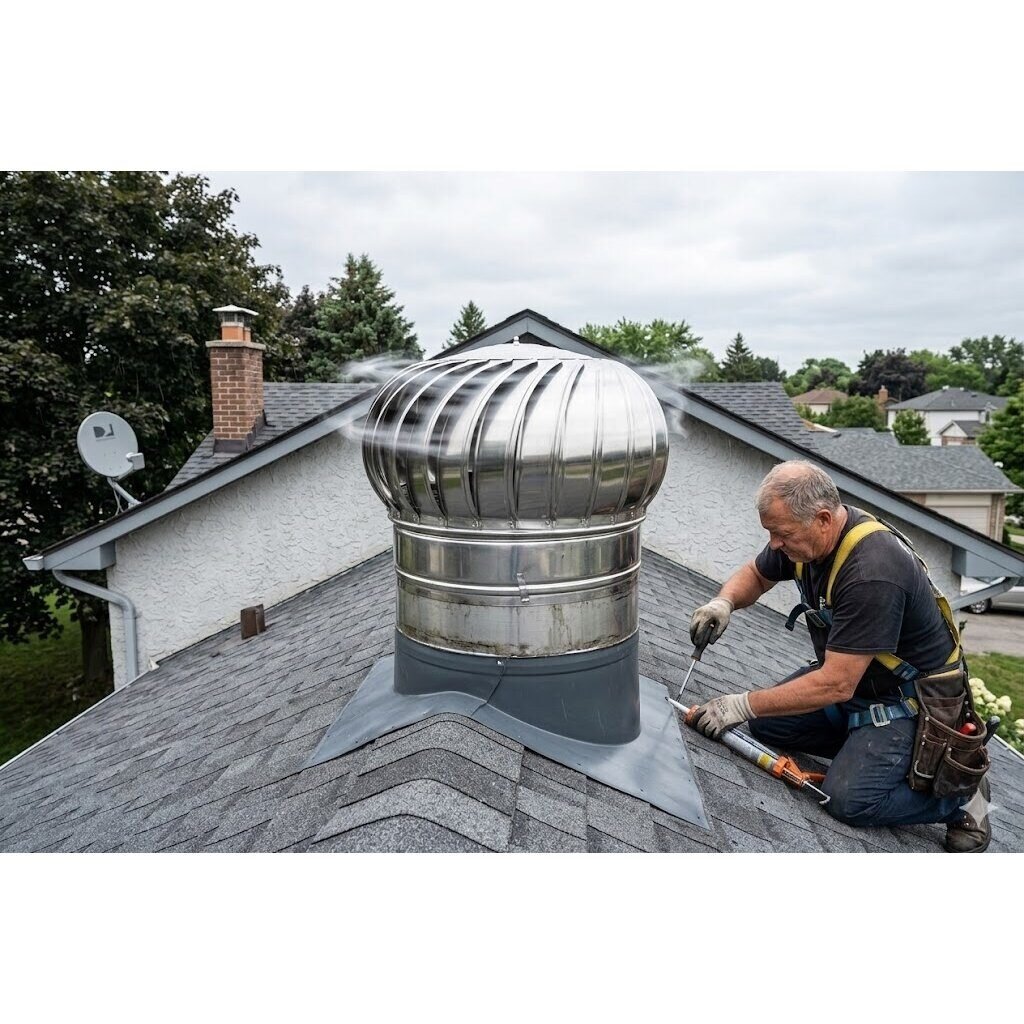

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
