  •   Sealed joint box | with electrical connections | with gel filling | 53x49x22 | 1-6mm² | IPX8
      Sealed joint box | with electrical connections | with gel filling | 53x49x22 | 1-6mm² | IPX8 1
      Sealed joint box | with electrical connections | with gel filling | 53x49x22 | 1-6mm² | IPX8 2

    Sealed joint box | with electrical connections | with gel filling | 53x49x22 | 1-6mm² | IPX8

    Code: BRAVO3-6
    Inquire about this item
    Price 7.29 € VAT incl.
    ( 6.02 € VAT excl. )
    Want another price? Suggest yours!

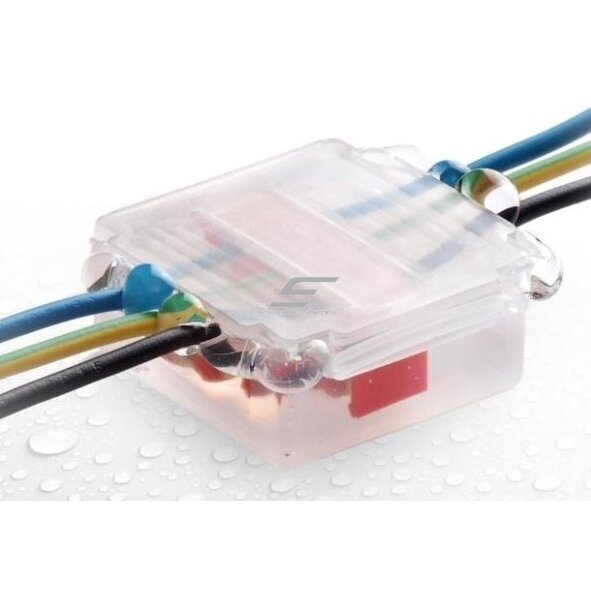

    Gel-filled box with integrated connectors, designed for quick and safe electrical wire connections even under the most demanding environmental conditions. This solution enables fast linear or branch connections using single- or multi-core wires/cables from 1 to 6 mm². The case is compact, transparent, ready to use, and fully submersible, suitable for use in soil, outdoors, or underwater. The gel is halogen-free, not classified as hazardous (according to the CLP directive), and has no expiration date.

  • Product description

    Technical Specifications:

    Compatible wire type: Solid and flexible insulated wires

    Wire cross-section: 1–6 mm²

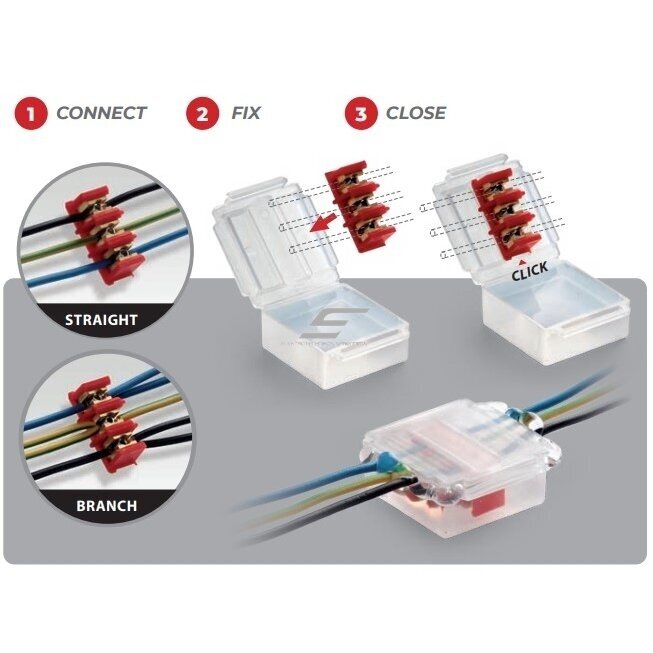

    Connection types:

    Straight: 2 x 1–6 mm², 3 x 1–6 mm²

    Branch: 2 x 1–6 mm², 3 x 1–6 mm²

    Dimensions: 53 x 49 x 22 mm

    Power supply availability: Immediately after installation

    Protection rating: IPX8 (fully submersible)

    Temperature:

    Operating: up to +90 °C

    Installation: from -40 °C to +50 °C

    Gel properties:

    Halogen-free

    UL 94-HB flammability rating

    UV-resistant

    Not listed as hazardous under CLP regulation

    No expiration date

    Certifications:

    CEI EN 50393 (tested underwater after installation in a box)

    Protection class 2 according to CEI 64-8

    Features:

    Quick and easy installation without tools

    Reusable – can be unscrewed and reconfigured

    Transparent housing – allows visual inspection

    Suitable for indoor and outdoor use

    Fully waterproof and moisture-resistant

    Suitable for underground installation

    Operates in a wide temperature range

    Suitable for straight and branch connections

    Applications:

    Outdoor and underground electrical wiring connections

    Lighting connections in gardens or yards

    Electrical installations for irrigation systems, pools, or fountains

    Industrial or construction sites requiring waterproof and UV-resistant connections

    Temporary or permanent electrical repairs

    Pros:

    Ready to use – saves time and labor

    Suitable even for underwater or underground use (IPX8)

    Transparent – easy to check connection

    No hazardous substances or expiration date

    Reusable – allows reconfiguration

    Small and compact – fits into tight spaces

    Complies with international standards (CEI EN 50393, CEI 64-8)

    Cons:

    Not suitable for large cross-section wires (>6 mm²)

    Frequent opening may reduce sealing performance

    Not suitable for high voltage applications

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
