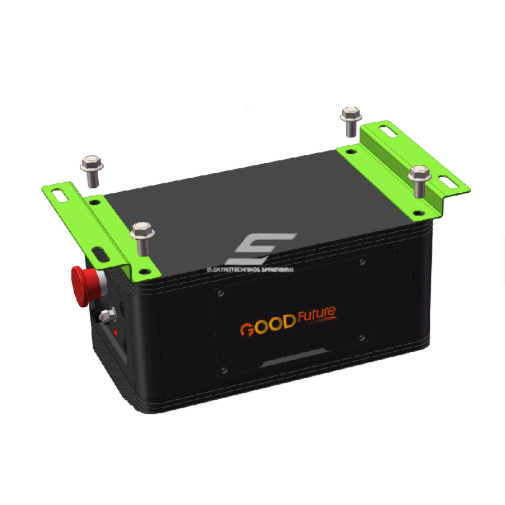

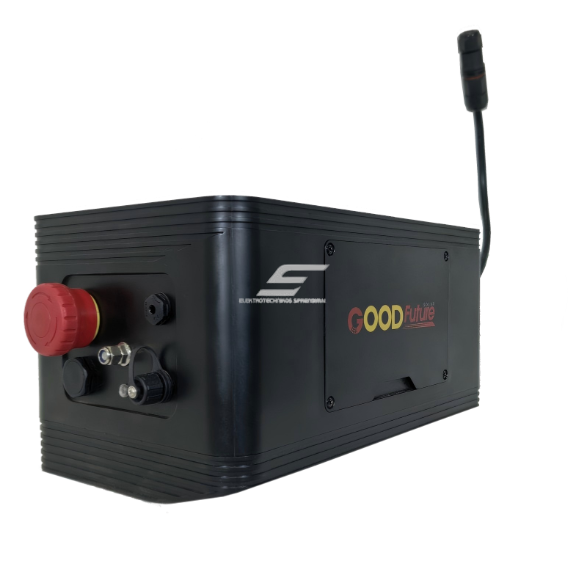

Single-axis solar tracking system controller | 24V DC | ±60° | shadow reduction function | automatic solar tracking | IP65

Technical Specifications

Type: single-axis solar tracking system controller
Input voltage: 250–1500 VDC
Output voltage: 24 VDC
Rated current: 4 A
Energy consumption: ≤0.1 kWh per day
Tracking type: single-axis
Tracking angle: ±60°
Tracking accuracy: ±1°
Tracking method: astronomical algorithm + back tracking
Control microchip: MCU (microcontroller)
Control algorithms: astronomical; “back tracking” (shadow reduction)

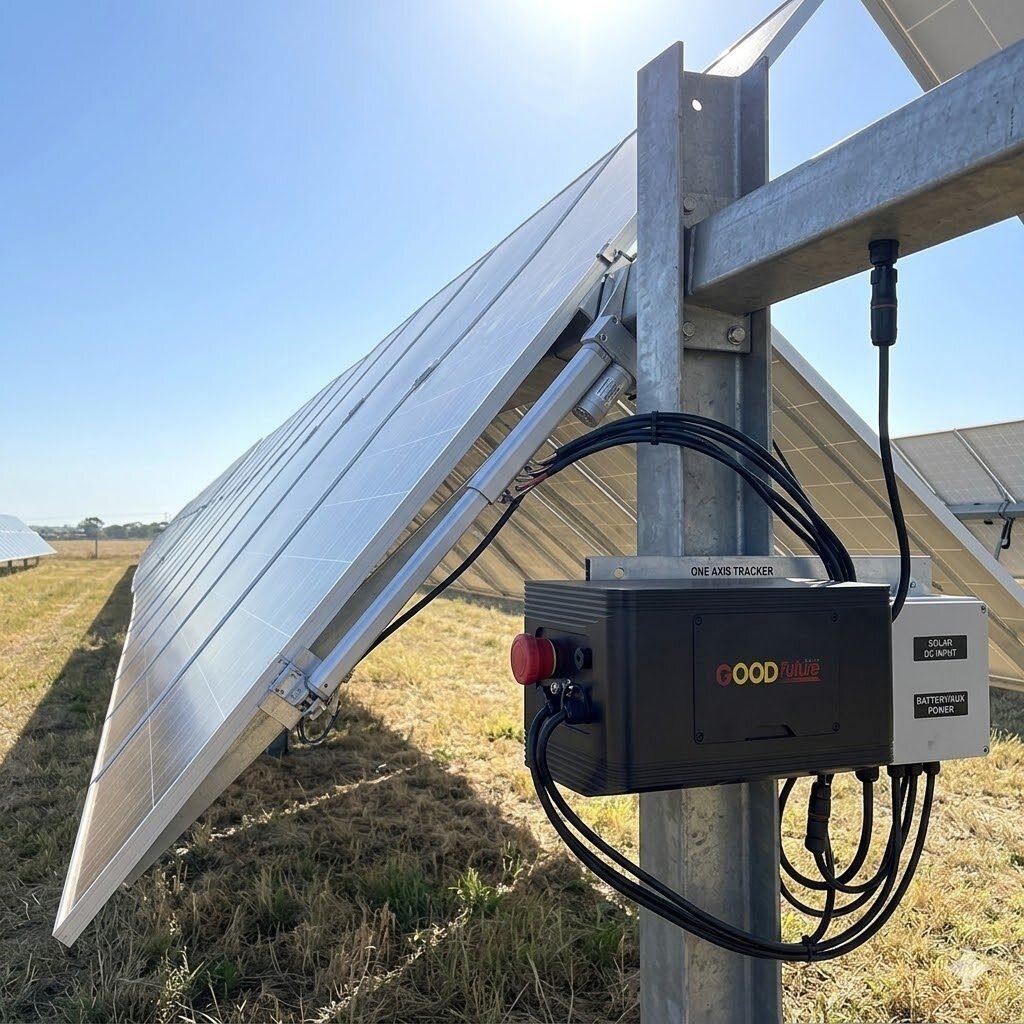

Drive type: slew drive motor or electric linear actuator
Protection class: IP65
Operating temperature: -20 °C to +60 °C
Integrated battery: lithium battery (included in the package)
Certificates: ISO9001; ISO14001; ISO45001

Functions

Automatic solar tracking - uses astronomical calculations to accurately determine the sun position and optimize the module angle
“Back tracking” technology - automatically reduces module angle to avoid shading between rows
High tracking accuracy - accuracy up to ±1° allows maximum use of solar energy
Wide voltage range - suitable for systems with 250–1500 VDC, compatible with various inverters and modules
Low energy consumption - only ≤0.1 kWh/day, therefore has minimal impact on overall system efficiency
Easy installation and commissioning - fast deployment reduces project time and installation costs

Usage

For home users: suitable for residential solar power plants, small solar systems, maximum energy generation from limited space
For electricians / installers: easy to install and integrate, simple connection to DC network, fast system start-up, compatible with various drives
For engineers / designers: ideal solution for solar projects, commercial PV systems, solar parks, energy optimization solutions, allows increasing energy generation, reducing shading losses, optimizing system operation

Advantages

high tracking accuracy (±1°)
“back tracking” function
wide voltage range (250–1500 VDC)
low energy consumption
IP65 protection – suitable for outdoor conditions
integrated battery
fast installation and commissioning
compatible with different drives
certified (ISO standards)

Disadvantages

requires a solar tracking mechanical system
higher investment compared to fixed systems
requires project-based adaptation
