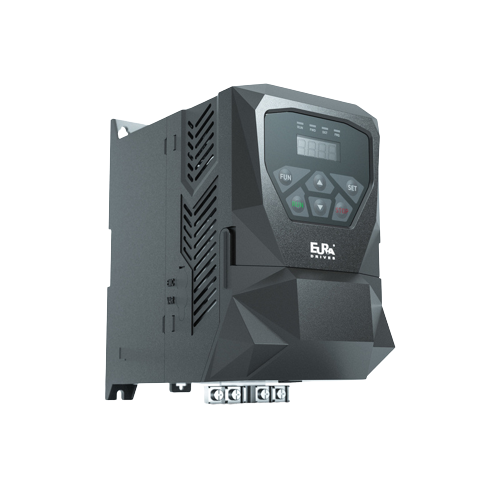

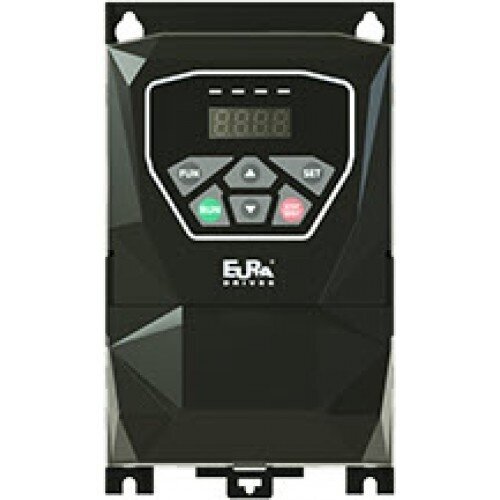

Single-phase frequency inverter 2.2 kW | 10 A | 230 VAC | IP20 | designed for controlling single-phase motors | E600-0022 S2 Eura Drives

Technical Specifications
Input voltage: 1 x 230 V AC
Output voltage: 3 x 230 V AC
Rated power: 2.2 kW
Rated current: 10 A
Frequency: 50–60 Hz
Protection class: IP20
Mounting: DIN rail or surface mounting
Communication: RS485 (Modbus RTU)
Integrated EMC filter: Yes
Control modes: V/F curve, PID control, automatic start/stop
Cooling: Integrated fan

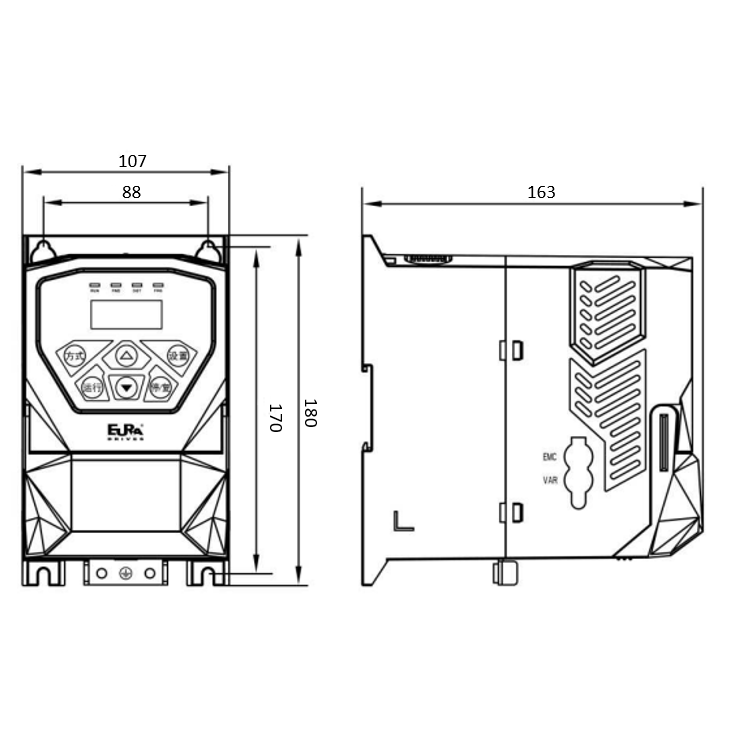

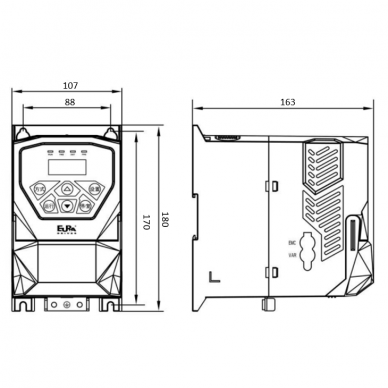

Dimensions: 107 × 163 × 180 mm

Functions and Features

Smooth speed control – ensures precise motor speed regulation and soft start/stop.

PID control – automatically adjusts current according to load (useful for pumps and fans).

EMC filter – minimizes electromagnetic interference and ensures stable operation in sensitive systems.

Modbus RTU communication – enables integration into smart control systems.

Protection functions: against overload, overvoltage, undervoltage, short circuit, overheating, and phase loss.

Easy programming – intuitive menu and control buttons for fast parameter setup.

Quiet operation – optimized ventilation and soft PWM modulation reduce noise.

Applications

For home users: fans, ventilation systems, water pumps, heating devices.

For engineers: ventilation, pumps, conveyors, and precise motor speed control.

For electricians: easy DIN rail installation, integrated EMC filter, and compatibility with various equipment.

Advantages

Compact design – easy to mount on DIN rail.

Integrated EMC filter – no need for external filters.

Wide voltage range (AC/DC 230V).

Modbus RTU support for smart system integration.

Comprehensive protection – safe operation of motor and equipment.

Energy saving and soft start – reduces stress on the electrical network.

Disadvantages

IP20 protection – recommended for indoor use or control cabinets.

Not suitable for direct connection to a 400 V three-phase supply.
