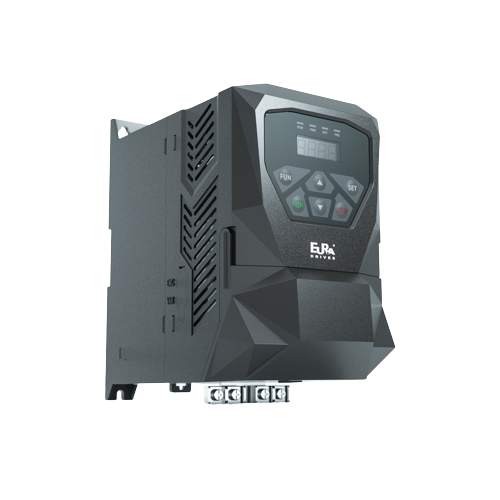

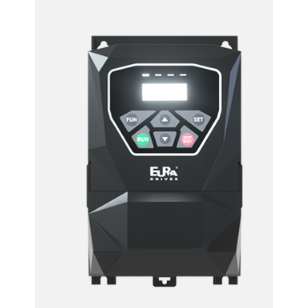

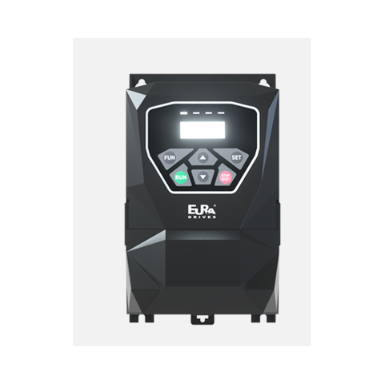

Three-phase frequency inverter 3 kW | 7,6 A | 400 VAC | IP21 | with EMC filter | for controlling three-phase motors | E600-0030 T3 Eura Drives

Technical Specifications
Power: 3 kW
Current: 7.6 A
Input voltage: 3x400 VAC
Input frequency: 44…67 Hz
Protection rating: IP21

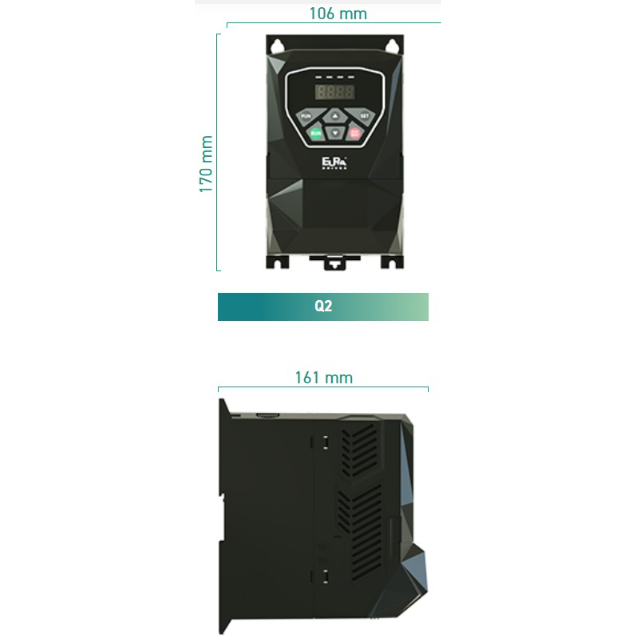

Dimensions (W x H x D): 106 × 170 × 161 mm
Control modes: V/Hz – linear, quadratic, or programmable curve
Overload capacity: 150% of rated current for 60 s / every 10 min
PWM frequency: 0.8…6 kHz
PID control: integrated
Braking chopper: built-in transistor
Communication: MODBUS (ASCII/RTU)
Display: LED, 4-digit, 7-segment – for operating parameters and fault indication
Ambient temperature: -10…+40 °C
Humidity: up to 90% (non-condensing)
Standards: EN61800-3 (EMC), EN61800-5-1 (Safety)

Functions and Advantages
Precise motor control – maintains stable speed and torque from 1 Hz.
PID controller – automatically maintains pressure, flow, or temperature without external controllers.
Jog mode – for quick setup, testing, or startup.
DC braking – adjustable duration and intensity.
Protection functions:
Against overcurrent, voltage fluctuations, overload, short circuit, overheating, analog input loss.
Digital and analog I/O:
4× digital inputs (configurable)
1× analog input (0–10 V, (0)4–20 mA)
1× analog output (0–10 V)
1× relay output (3 A, 230 V)
Safety function STO (in Q2 models) – compliant with SIL standards.

Applications
For engineers and automation specialists: ideal for industrial systems – fans, pumps, conveyors, presses, and cooling equipment.
For electricians: easy installation; all components integrated – can be mounted directly on the machine.
For residential or commercial use: suitable for controlling higher-power three-phase motors such as garage ventilation systems.

Pros
Integrated EMC filter – complies with CE/UL/CCC requirements
Compact size, easy installation
Wide frequency range (0.5–650 Hz)
Reliable protection against overloads and short circuits
Integrated PID and MODBUS communication
Excellent price/performance ratio
Energy saving – optimizes motor performance based on load

Cons
IP21 protection – not suitable for dusty or humid environments without extra protection.
No graphical menu – simple LED display used.
