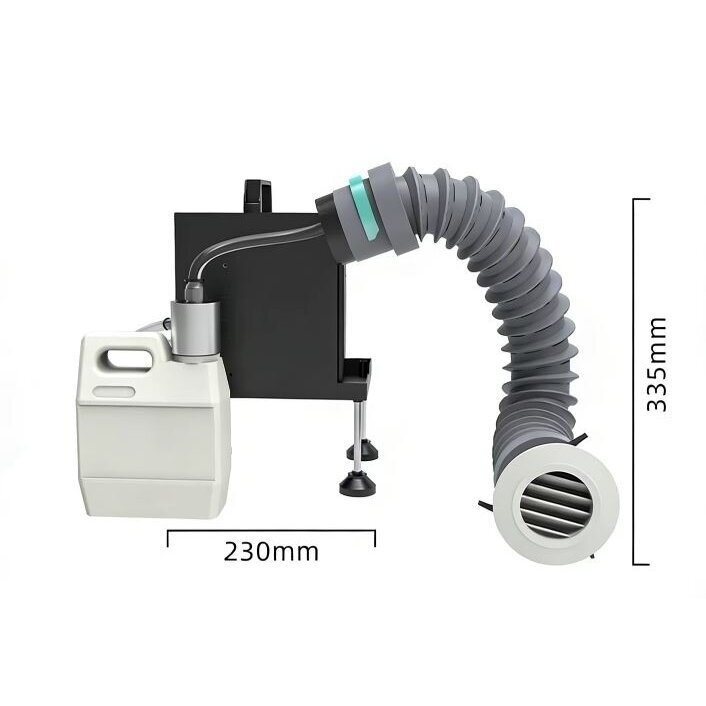

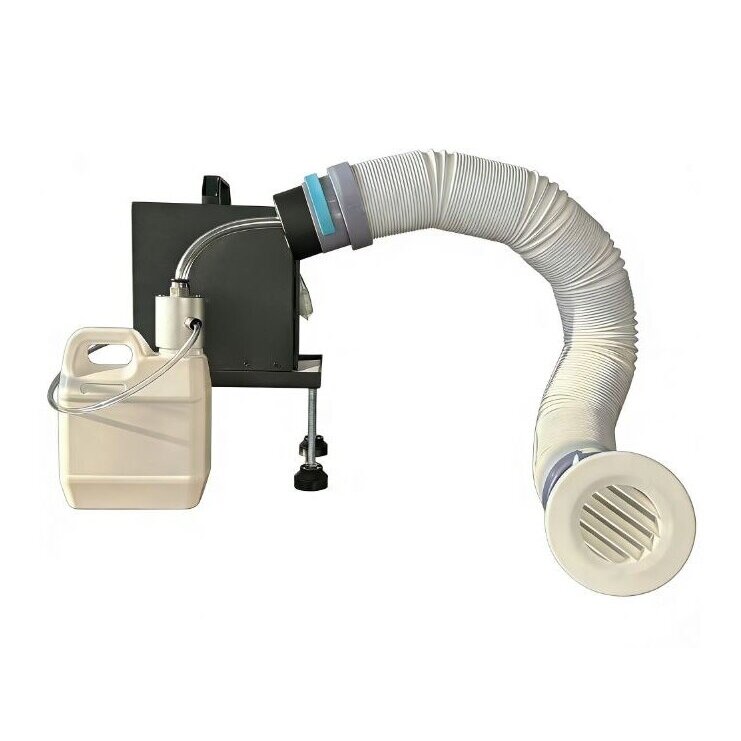

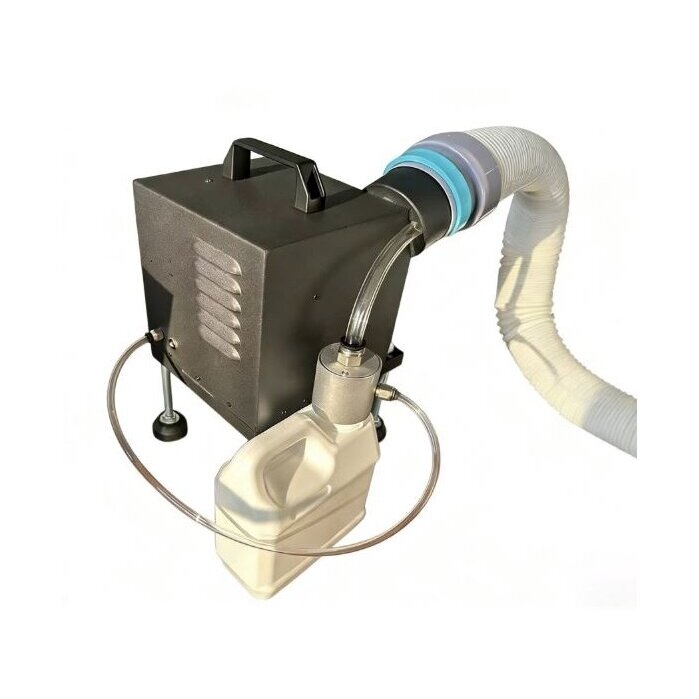

Smart aroma diffuser | 10W | 12V | 1000ml | 2000m³ | 230x168x335mm | white | Bluetooth

Smart aroma diffuser | 10W | 12V | 1000ml | 2000m³ | 230x168x335mm | white | Bluetooth

High-performance commercial scent diffuser designed for scenting large spaces with a volume of up to 2000 m³. The system uses fragrance liquid atomization and a fan to distribute the scent, features a 1 l capacity, programmable operating time, and smartphone control via Bluetooth and a mobile application. The design is suitable for concealed installation, where only the scent air outlet remains visible in the room.

This is a stationary scenting system for commercial premises, designed for larger spaces. The fragrance liquid is atomized, and the resulting scented airflow is directed into the room through a duct by a fan. The intensity and operating settings can be adjusted by smartphone via Bluetooth.

Fragrance atomization is combined with the airflow generated by the fan, allowing the scent to be distributed throughout a larger room. The stated application volume of the system is up to 2000 m³.

• Fragrance liquid atomization unit.
• Fan-assisted scent distribution.
• Dual-flow atomization technology.
• High-airflow fan unit.
• Scent outlet through a separate duct.
• 1 l fragrance liquid container.

The scent diffuser can be controlled by smartphone via Bluetooth and a mobile application. The fragrance intensity and device operating parameters can be adjusted.

• Bluetooth connection.
• Control via mobile application.
• Fragrance intensity adjustment.
• Programmable / time-interval-controlled fragrance diffusion.

The system supports time-controlled fragrance diffusion. This allows scenting to be adapted to the operating hours of the room and enables setting when and at what intensity the device should operate.

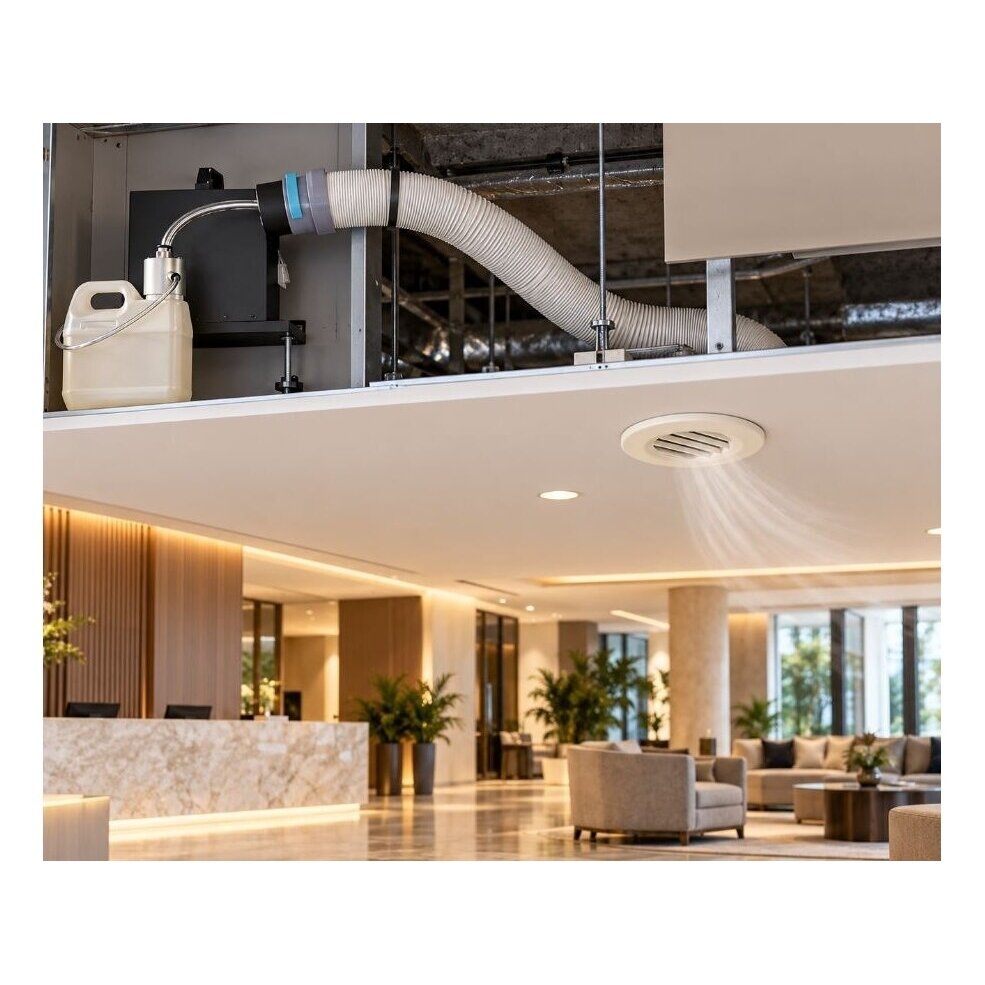

The device can be installed out of sight, for example above a suspended ceiling. Only the scent outlet may remain visible in the room.

• The main unit can be concealed in the ceiling space.
• An air / scent outlet of approximately Ø75 mm is specified.
• A separate service access opening can be provided for device maintenance.
• The fragrance airflow is directed into the room through a flexible duct.

The device uses a 1 litre container for fragrance liquid. The container is connected to the atomization system, from which the liquid is supplied to the fragrance generation unit.

The design includes a separate drip collection tray. It is intended to collect possible drops of fragrance liquid and reduce the likelihood of liquid reaching the installation surface.

The support feet of the device have height-adjustable pads. They allow the position of the device to be adjusted at the installation location.

A flexible reinforced duct is used for the scented airflow. It connects the fan unit to the scent outlet installed in the room.

• Scenting of commercial premises.
• Suitable for spaces up to 2000 m³.
• 1 l fragrance liquid container.
• Fragrance liquid atomization.
• Fan-assisted scent distribution.
• Bluetooth control.
• Mobile application control.
• Fragrance intensity adjustment.
• Programmable operating time.
• Concealed installation possible.
• Height-adjustable support feet.
• Liquid drip collection tray.
• Flexible reinforced air duct.

• Hotels.
• Hotel lobbies and common areas.
• Commercial premises.
• Offices.
• Retail and service areas.
• Large residential spaces.
• Projects requiring concealed installation of a scenting system.

1. Select the installation location of the device, taking into account the position of the fragrance outlet.
2. Place the device in a stable position and, if necessary, adjust the height of the support feet.
3. Connect the scent outlet duct to the fan outlet.
4. Route the duct to the planned scent outlet in the room.
5. For concealed installation, provide a service access opening for maintenance of the device.
6. Connect the fragrance liquid container to the atomization system.
7. Connect the 12 V power supply.
8. Pair the device with a smartphone via Bluetooth and set the desired operating mode.

When designing the system, the room volume, fragrance outlet position, duct routing and accessibility of the device for maintenance should be taken into account. The stated maximum application volume is up to 2000 m³, but actual fragrance distribution will depend on the specific room layout and airflow.

• Use the device with its designated 12 V power supply.
• At the installation location, ensure access to the 1 l container and the main components of the device.
• Avoid sharp bends in the duct route that may restrict airflow.
• Periodically check the liquid container and drip collection tray.
• For concealed installation, provide a service access opening.

Commercial Scent Diffuser | up to 2000 m³ | 1 l | Bluetooth / APP | 10 W

Commercial scenting system for large spaces, using fragrance liquid atomization and fan-generated airflow. The stated application volume is up to 2000 m³, capacity – 1 l, power supply – 12 V, power – 10 W. Fragrance intensity and operating time can be adjusted by smartphone via Bluetooth and a mobile application, while the main unit can be installed out of sight.
