Smart freestanding / wall-mounted electric radiator with digital thermostat | 500W | 230V | 420x430x87mm | WiFi + Bluetooth | IP24 | white | ADAX NEO Compact 05 KWT White

Electric radiator | convector | WiFi + Bluetooth | 500 W | 420 × 430 × 87 mm | IP24 | white | ADAX NEO Compact 05 KWT White

ADAX NEO Compact 05 KWT White is a new-generation 500 W electric convector radiator with an integrated programmable WT2 WiFi + Bluetooth thermostat. The NEO Compact series is designed for modern residential, commercial and other interiors, combining a slim body, Scandinavian design and precise electronic temperature control.

The radiator can be controlled directly using the thermostat buttons or remotely through the ADAX WiFi app on a smartphone or tablet. Integrated Bluetooth simplifies initial pairing, while the IP24 protection rating allows the appliance to be used not only in standard residential or commercial spaces, but also in more humid rooms, provided applicable electrical installation requirements are observed.

ADAX NEO Compact 05 KWT White combines electric convection heating, a precise electronic thermostat and smart WiFi control in one appliance. The 500 W model is compact – its dimensions are only 420 × 430 × 87 mm, making it suitable for places where a narrow radiator is important. Temperature can be adjusted within a 5–35 °C range.

Ready for installation: the radiator is supplied with a removable wall-mounting bracket, 1.35 m power cable and plug. The thermostat and power cable are located on the right-hand side of the radiator.

ADAX NEO Compact radiators feature a slim, modern and understated form. The series was designed by the Scandinavian design company Hareide Designmill, while the technical construction was developed by ADAX engineers. A height of 420 mm and a depth of only 87 mm allow the radiator to be easily integrated into a wide range of interiors.

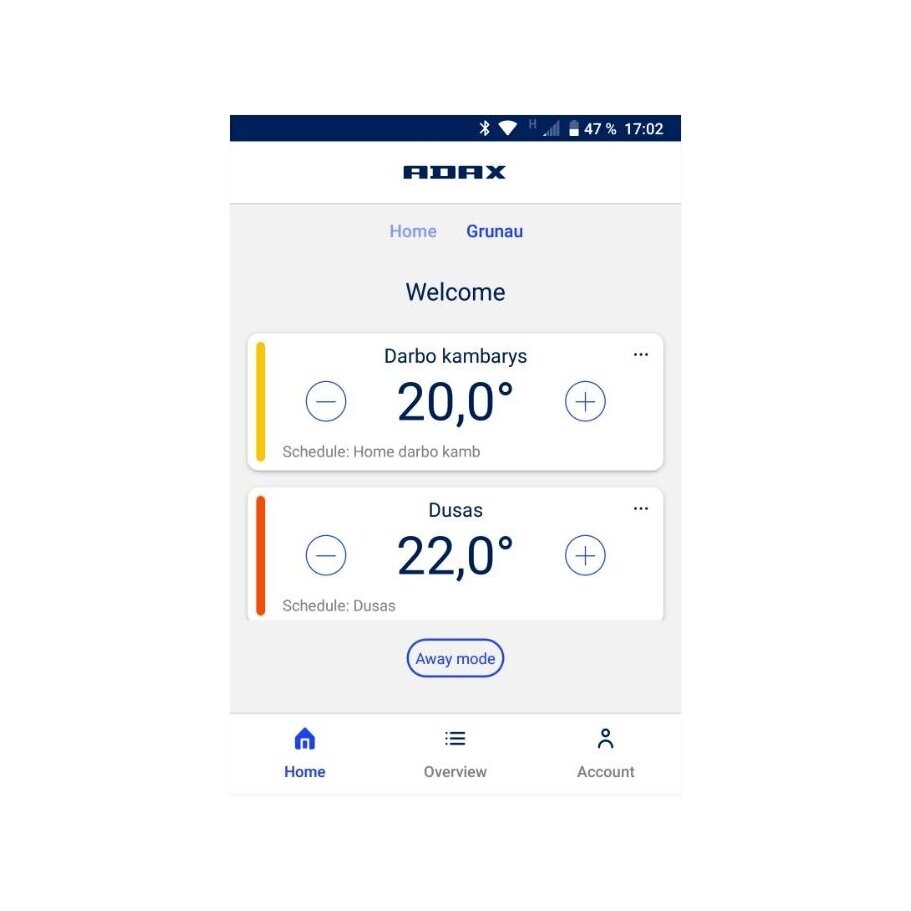

• Control via smartphone or tablet.
• App available for iOS and Android platforms.
• Internet-based radiator control regardless of location.
• Viewing current and desired temperatures.
• Remote adjustment of desired temperature.
• Creation and editing of daily and weekly temperature schedules.
• Comfort and economy day / night temperature settings.
• Information about possible faults or operating problems in the app.

The WT2 thermostat can be integrated with supported smart-home control systems:

• Google Home;
• Amazon Alexa;
• Homey;
• Tibber;
• Future Home.

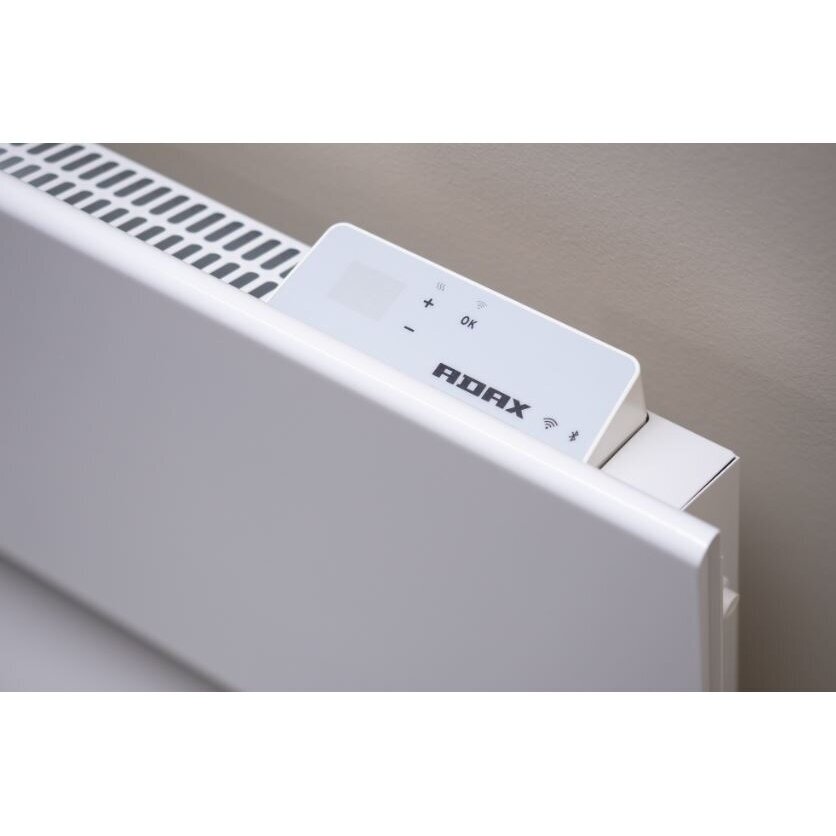

1. Display – shows the desired set temperature.
2. Red indicator – lights when the radiator is actively heating.
3. Blue indicator – WiFi indication; used to show thermostat connection status.
4. [OK] – used to activate various thermostat functions.
5. [+] – increases the desired temperature.
6. [−] – decreases the desired temperature.

The radiator is switched on and off using the switch located on the right-hand side of the radiator.

The thermostat can be protected against unwanted operation. The function is activated or deactivated by holding [+] and [−] simultaneously for approximately 5 seconds until “CC” starts flashing on the display. Repeat the procedure to disable the lock.

The display illumination function is switched on or off by holding [−] and [OK] simultaneously for approximately 5 seconds until the display flashes three times. When permanent illumination is disabled, the display switches off after approximately 30 seconds and lights again when [+], [−] or [OK] is pressed.

To restore factory settings, hold [+] and [OK] until “RESET” flashes rapidly on the display. After reset, the temperature is set to 20 °C.

After a power failure and restoration of the electrical supply, the radiator starts heating according to the last set temperature.

• Residential rooms.
• Bedrooms and home offices.
• Apartments and detached houses.
• Offices and commercial premises.
• Bathrooms and laundry rooms where the installation location complies with applicable requirements.
• Rooms where remotely programmable electric heating is required.

1. The radiator is normally wall-mounted using the removable bracket supplied.
2. At least 250 mm of free space must be left above the radiator.
3. At least 50 mm must be left below the radiator.
4. The thermostat and power cable are located on the right-hand side of the radiator – this must be considered when selecting the installation location.
5. The radiator can be placed on the floor using separately purchased feet.
6. In humid rooms, the installation location must comply with applicable electrical safety zones and requirements.

• 500 W is the rated power of this specific model.
• Radiator power should be selected according to the heat loss and design heating demand of the specific room.
• The IP24 protection rating does not in itself mean that the radiator may be installed anywhere in a humid room.
• The front-panel temperature may reach up to 75 °C.
• Do not cover the radiator in a way that restricts natural air circulation.

ADAX NEO Compact 05 KWT White | electric radiator | 500 W | WiFi + Bluetooth | IP24

ADAX NEO Compact 05 KWT White is a 500 W white electric convection radiator with a programmable WT2 WiFi + Bluetooth thermostat. Model dimensions are 420 × 430 × 87 mm, temperature adjustment range 5–35 °C, protection rating IP24. Supplied with a wall bracket and 1.35 m power cable with plug. Smartphone control, weekly programming and integration with supported smart-home systems are available.
