Smart freestanding / wall-mounted electric radiator with thermostat | 2500W | 230V | 420x1170x87mm | Bluetooth | IP24 | white | ADAX VP12 H25 KBT White

Electric radiator | convection | Bluetooth programmable | 2500 W | 420 × 1170 × 87 mm | IP24 | white | ADAX VP12 H25 KBT White

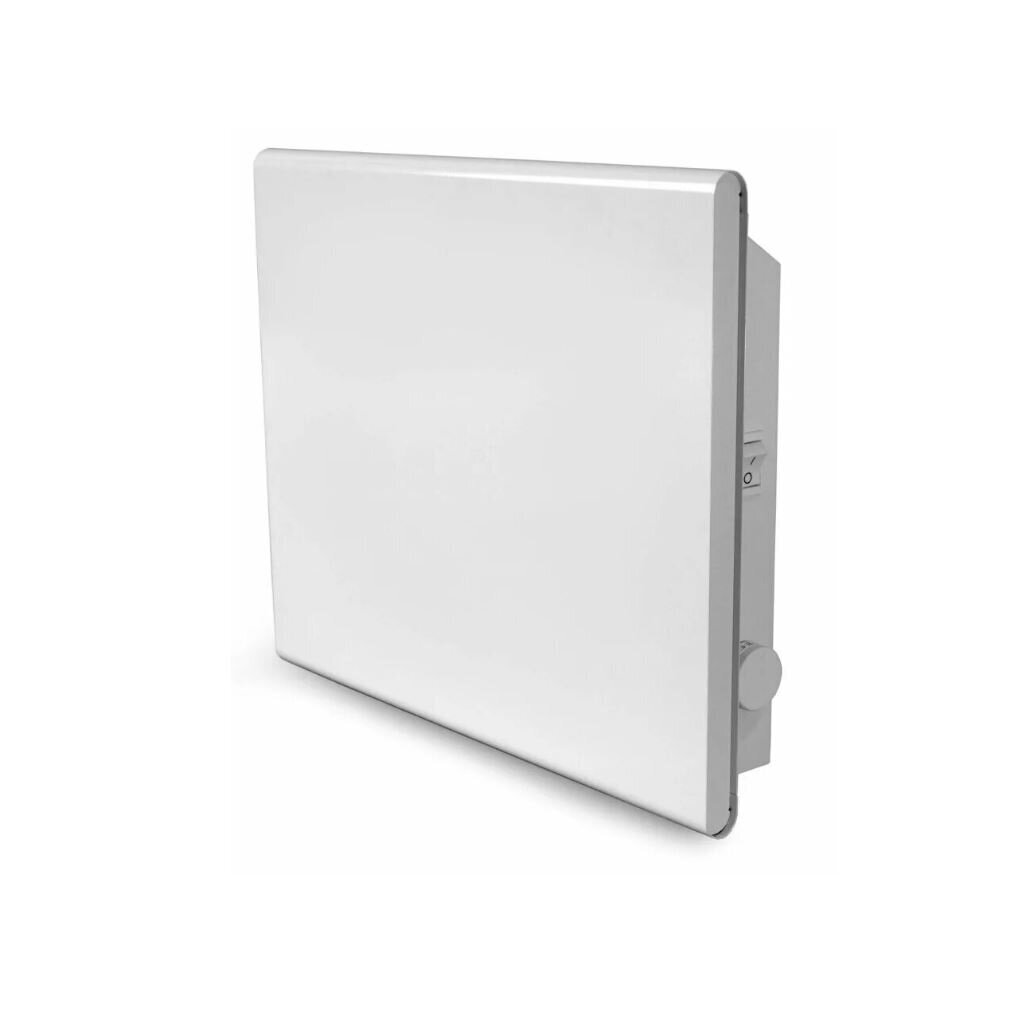

ADAX VP12 H25 KBT White – a 2500 W electric convection radiator with an electronic / Bluetooth programmable thermostat. This is the highest-power version among the listed VP12 H.. KBT models, intended for applications where higher electric heating capacity is required while retaining simple manual temperature control and programmable operating schedules.

The radiator can be used completely independently – without programming the thermostat, it maintains the temperature selected with the control knob like a standard electronic thermostat. Temperature can be adjusted within 5–35 °C, with a default temperature of 22 °C. Bluetooth connection is used for programming schedules and additional functions.

ADAX VP12 H25 KBT White combines 2500 W convection electric heating, an electronic thermostat and Bluetooth-programmable schedules. Model dimensions are 420 × 1170 × 87 mm, so the greater radiator width should be taken into account before installation. Temperature is adjustable within 5–35 °C.

Default setting: when the radiator is switched on, the temperature is set to 22 °C. The user can select the desired temperature from 5 to 35 °C using the control knob.

The main purpose of the app for this model is management of radiator operating schedules and activation of additional functions.

Temperature cannot be controlled directly in the app. It is set using the radiator control knob. To synchronize schedules and functions, the mobile device must be within Bluetooth range.

1. Download the ADAX WiFi app from the Apple or Google app store.
2. Select “+Add device”.
3. Press “Next”.
4. Select the device type “Eco BT Bluetooth only heater”.
5. Turn the temperature control knob between the minimum and maximum positions until the indicator starts flashing.
6. A flashing indication means the radiator is ready to connect.
7. Once the radiator is detected, continue according to the instructions displayed in the app.

• Standby mode – indicators are off.
• Heating – the indicator shows active radiator heating.
• Ready to connect – flashing indication shows Bluetooth pairing mode.
• Child protection – indication shows that the lock is active.
• Factory reset – corresponding indication shows the reset process.

In the event of a power failure, the radiator maintains the operation of its internal clock for up to 24 hours. If the power interruption lasts longer than 24 hours, the thermostat returns to the last used temperature.

This app-based function allows the radiator to determine when heating must start so that the user's desired temperature is reached at the set time. For example, if the room should be 22 °C at 09:00, the radiator starts heating earlier so that the required temperature is reached on time.

The radiator can detect a rapid drop in room temperature typical of an open window. When such a change is detected, normal heating is switched off and the 7 °C frost-protection mode is activated. After the window is closed and the temperature starts rising again, the radiator returns to the previous program or constant-temperature mode.

Thermostat control can be protected against unauthorized use by children or other persons. The function is activated or disabled through the ADAX app.

To restore factory settings, turn the control knob between the minimum and maximum positions until the factory reset indicator starts flashing.

• Residential premises.
• Living rooms and other rooms requiring higher heating output.
• Apartments and detached houses.
• Offices and commercial premises.
• Bathrooms and other more humid rooms, provided installation requirements are observed.
• Rooms requiring programmable higher-power electric heating.

1. Mount the radiator using the removable wall brackets supplied.
2. Leave at least 250 mm above the radiator.
3. Leave at least 50 mm below the radiator.
4. Before installation, take into account the 1170 mm radiator width.

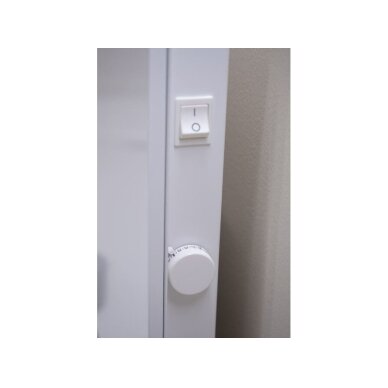

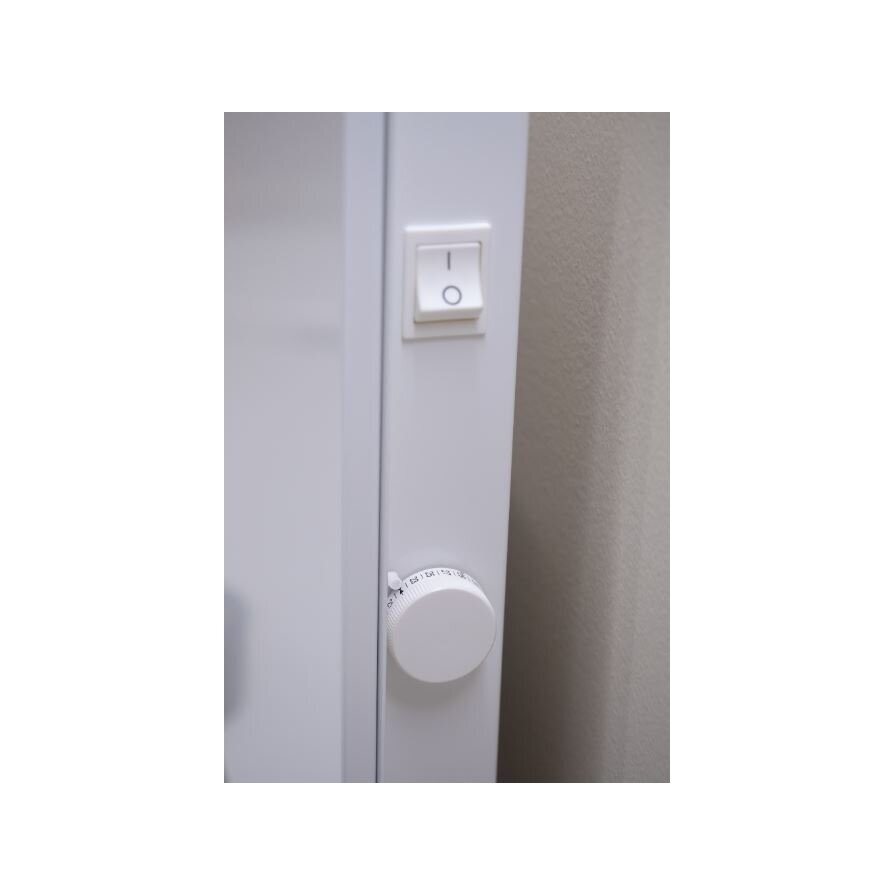

5. The thermostat and power cable are located on the right-hand side of the radiator.
6. The radiator can be placed on the floor using optional feet sold separately.
7. In humid rooms, applicable electrical safety requirements must be observed.

• 2500 W is the rated power of this model.
• The required radiator output must be selected according to the heat loss of the room.
• Due to the 1170 mm width, the installation space must be evaluated in advance.
• Bluetooth-programmable functions must be synchronized within Bluetooth range.
• Temperature cannot be changed directly in the app.
• The front surface temperature may reach up to 75 °C.
• The radiator air circulation openings must not be covered.

ADAX VP12 H25 KBT White | electric radiator | 2500 W | Bluetooth | IP24

ADAX VP12 H25 KBT White – a 2500 W white electric convection radiator with an electronic / Bluetooth programmable thermostat. Model dimensions 420 × 1170 × 87 mm, temperature adjustment range 5–35 °C, IP24 protection rating and double insulation. Supplied with wall brackets and a 1.35 m power cable with plug. The app allows management of operating schedules, adaptive start, open-window detection and child protection.
