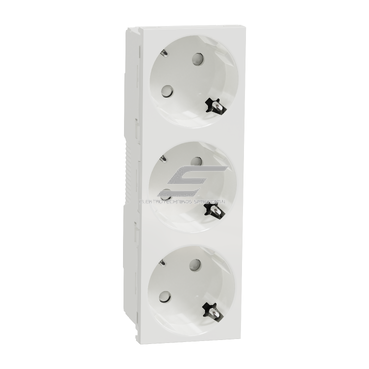

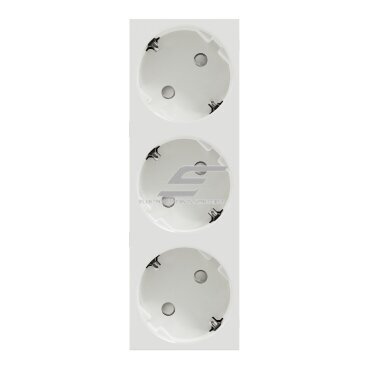

Socket outlet | 3-gang | 45 mod | 16A | 250V | schuko | with grounding | flush-mounted | white | Unica Schneider Electric

Technical Specifications

Manufacturer: Schneider Electric​

Series: New Unica​

Type: Triple socket outlet (3x 2P+E)​

Standard: CEE 7/3 (Schuko)​

Grounding: Lateral, 45° angle​

Rated current: 16 A​

Rated voltage: 250 V AC​

Frequency: 50/60 Hz​

Mounting: Recessed (flush-mounted)​

Number of modules: 6 modules​

Mounting depth: 30 mm​

Total depth: 39.4 mm​

Dimensions (H x W): 135 × 45 mm​

Color: White (RAL 9003)​

Surface: Glossy​

Material:

Housing: PC GF10 FR (flame-retardant polycarbonate with glass fiber)​

Cover: PC (polycarbonate)​

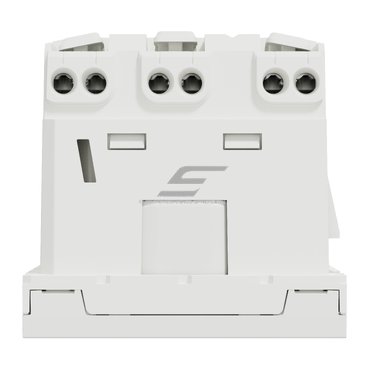

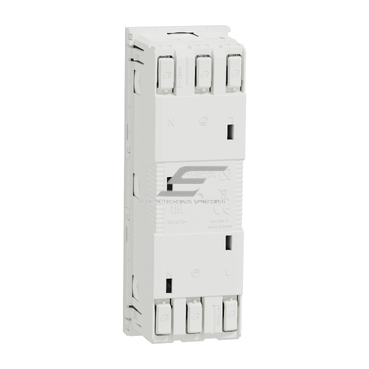

Cable connection: Screwless (push-in terminals)​

Flexible: 0–2.5 mm²​

Solid: 0–2.5 mm²​

Child protection: Yes (mechanical shutter)​

IP protection class: IP21​

IK impact resistance class: IK04​

Insulation resistance:
5 MΩ at 500 V
​

Dielectric strength: 2000 V​

Electrical durability: 5000 switching cycles (cos φ = 0.8)​

Load resistance: 100 operations at 1.25 In and 1.1 Un, cos φ = 0.6​

Certificates: SEMKO, DEMKO, EAC​

Standard: IEC 60884-1​

UV resistance: Yes​

Chemical resistance: Resistant to soapy water, alcohol (70% and 96%), lactic acid, quaternary ammonium, bleach, ammonia, crystal cleaner, H₂O₂, hexane, acetone, window cleaner, gasoline, oil​

Operating temperature: -5…+35 °C​

Storage temperature: -5…+50 °C​

Weight: 0.106 kg​

Features and Benefits

Triple socket in one housing – saves space, especially in kitchens, work areas, or offices​

Child protection – integrated mechanical shutter increases safety at home​

Fast installation – push-in screwless terminals ensure quick and reliable installation​

Glossy surface and modern design – suitable for modern interiors​

Resistance to chemicals and UV – durability​

Robust housing – flame-retardant and impact-resistant plastic​

Applications

Residential areas – living rooms, children's rooms, bedrooms​

Offices and commercial spaces – workstations, meeting rooms​

Kitchens and utility areas – where multiple devices need to be connected frequently​

Educational institutions – classrooms, offices, laboratories​

Pros:

Triple socket – one aesthetic installation, more functionality​

Child protection – safety for families with young children​

Durable, resistant, and reliable design

Easy screwless installation

UV and chemical resistance

Complies with international standards (IEC, CE, EAC)

Cons:

Requires deep flush-mounted box for installation

For indoor use only (IP21) – not suitable for damp or outdoor environments​

The Schneider Electric New Unica triple recessed socket is an excellent choice for those seeking a modern, safe, and reliable electrical installation solution in one place. It is ideal for both residential and business sectors.
