Products catalog

  • Socket outlet | schuko | industrial | flush-mounted | 16A | 250V | 2P+E | with cover | IP54 | Scame | 570.2561 | 8001636301297

    Code: 5702561
    Barcode: 8001636301297

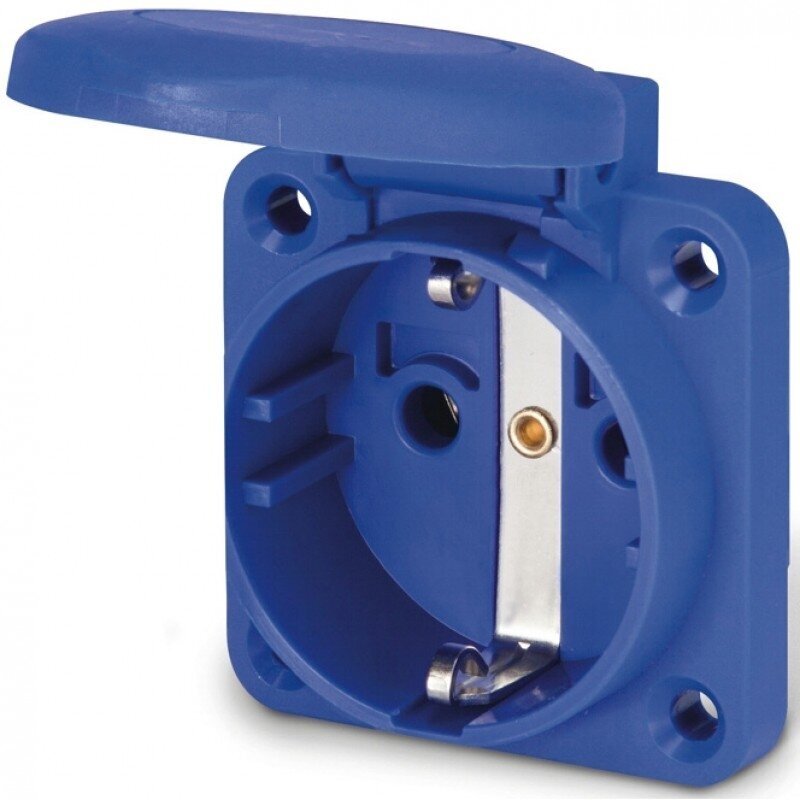

    Industrial flush-mounted SCHUKO socket Scame 570.2561 - a reliable solution where safe, mechanically resistant and moisture-protected electrical connection is required.

    16A / 250V / 2P+E socket with cover and IP54 protection is suitable for industrial, commercial and technical premises. High build quality, thermoplastic housing and IK08 impact resistance ensure long-term operation even in demanding conditions.

  • Technical specifications

    Type: SCHUKO, industrial, flush-mounted
    Rated current: 16A
    Rated voltage: 250V
    Number of poles: 2P+E
    Degree of protection (IP): IP54
    Impact resistance: IK08
    Operating temperature: -25°C / +60°C
    Material: thermoplastic
    Color: blue

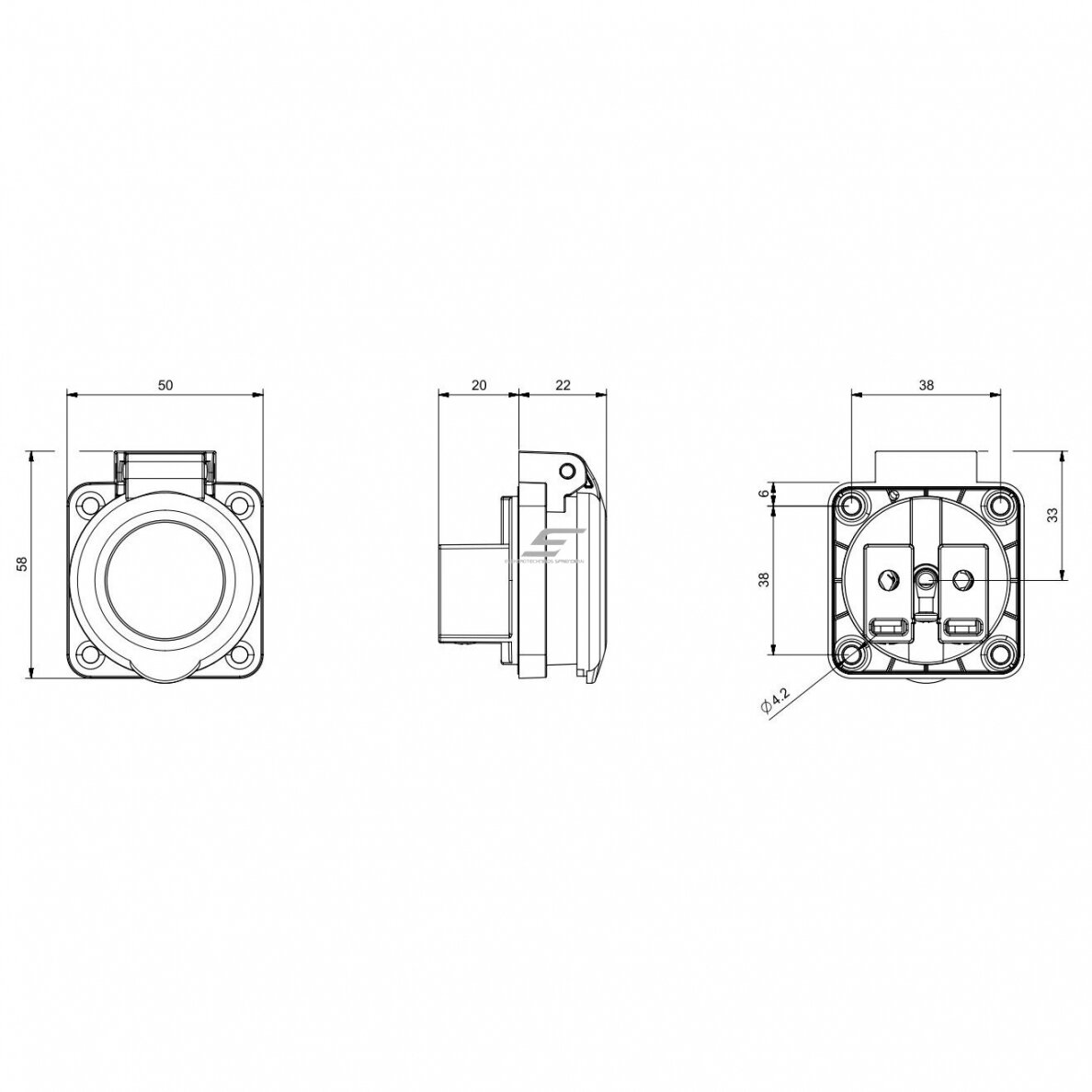

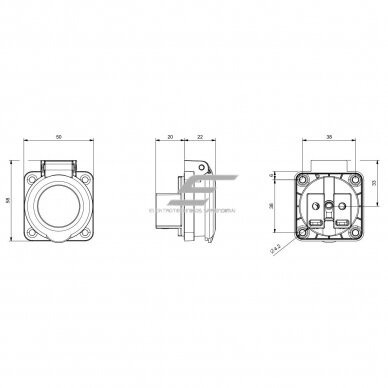

    Dimensions: 50 x 58 mm
    Mounting type: flush-mounted
    Standard: IEC 60884-1 (2002)
    Certificates: CE, EAC
    Compliance: RoHS 2011/65/EU

    Functions

    Safe grounding (2P+E system)
    Protection against dust and water splashes (IP54)
    Mechanical impact protection (IK08)
    Integrated protective cover
    Stable contact connection
    Resistant to temperature fluctuations

    Application

    For home users: Garages; Workshops; Basements; Utility buildings; Outdoor installations under a roof
    For engineers and designers: Electrical installations in industrial facilities; Power supply points in technical rooms; Production areas; Commercial premises
    For electricians: Installation of distribution boards and flush-mounted systems; Modernization projects; New construction sites; Heavy-duty installation solutions

    Advantages

    Industrial-type construction
    IP54 protection against dust and moisture
    IK08 impact resistance
    Certified according to IEC standard
    Resistant to temperature fluctuations
    Durable thermoplastic material
    Reliable manufacturer - Scame

    Disadvantages

    Not suitable for full water immersion
    Only 16A load - not suitable for higher power devices
    Flush-mounted installation requires an installation box

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
