  • Solar module 430W | 1444x1810x26mm

    Code: 292384

    This solar module is a high-quality energy generation device designed for use in both private and commercial solar energy projects. In terms of technical specifications, this module offers high efficiency and reliability, ensuring a high-quality power supply. It is designed to meet international standards, including IEC 60904-3, with measurements taken according to STC (Standard Test Conditions) methodology, ensuring reliable and accurate data.

  • Technical Specifications:

    Pmax (maximum power): 430 W ±10%
    Isc (short-circuit current): 10 A ±10%
    Impp (maximum current): 9.4 A ±10%
    Voc (open-circuit voltage): 56.6 V ±10%
    Vmpp (maximum voltage): 45.8 V ±10%
    Vsys (system voltage): 600 V ±10%
    Safety class: II
    Maximum current overcurrent (protection rating): 12 A
    Dimensions (length x width x height): 1444 x 1810 x 26 mm
    Weight: 80 kg
    All measurements are performed according to STC (1000 W/m², 25 ± 2 ºC, AM1.5) per IEC 60904-3
    Usage: This solar module is designed for energy generation using sunlight. It can be used in both residential and commercial solar power systems. The module is suitable for installation in both rooftop and ground-mounted solar power plants, where efficient and reliable energy generation is required. Due to its high efficiency and stability, it is ideal for installation in solar power systems that ensure continuous and efficient electricity supply.

    Advantages:

    High power: With a nominal power of 430 W, this module generates a large amount of electricity, ensuring efficient use of solar energy.
    High efficiency level: The technical specifications show that the module has a high conversion efficiency under standard testing conditions.
    Reliability and safety: The module meets international safety and quality standards, including IEC 60904-3 and safety class II.
    Wide operating voltage range: With a high open-circuit voltage (56.6 V), this module ensures stable energy supply even under various environmental factors.
    Disadvantages:

    Weight: The weight (80 kg) can be quite heavy, especially when installing a large number of modules, so installation may require more labor and specialized equipment.
    Size: The large dimensions (1444 mm x 1810 mm) may be inconvenient for installation in confined spaces.
    Energy loss due to temperature changes: Although the module is designed under STC conditions, in real-world conditions, exposure to higher temperatures may result in energy loss.

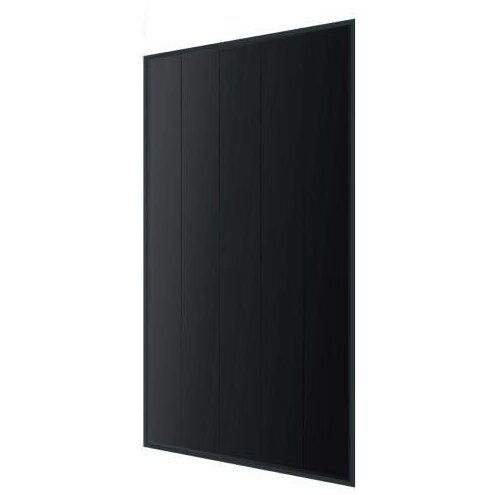

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
