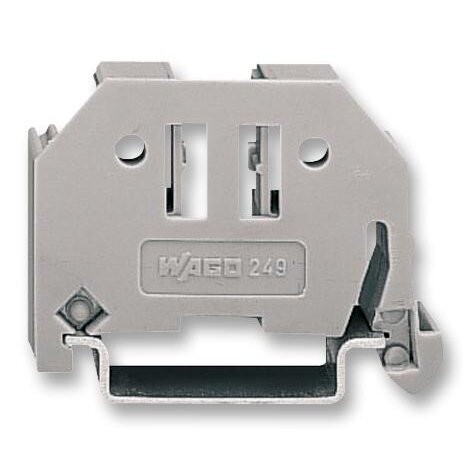

Spring brake on DIN | 0.08-2.5 mm² | WAGO 249-116

Technical Specifications

Product Type: Wire stabilizing clamp for use with WAGO terminal blocks.

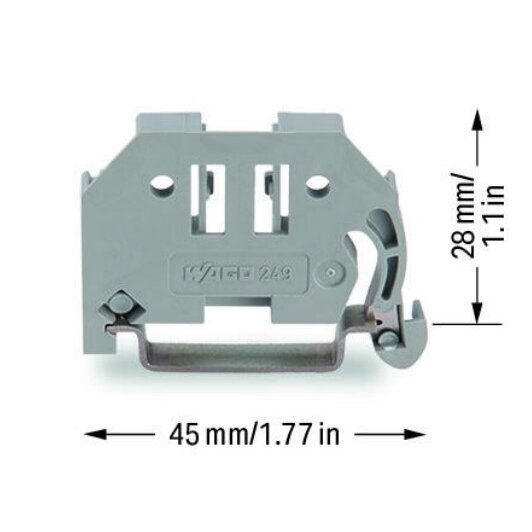

Dimensions: The specific dimensions of the WAGO 249-116 wire stabilizing clamp are small and designed to fit standard WAGO terminals. The exact details are not available in public sources as they depend on the WAGO terminal system being used.
Material: Made from high-quality metal, usually steel, ensuring strength and durability. It may be coated with an anti-corrosion layer to protect against environmental factors.
Usage: Suitable for stabilizing wires with a cross-section from 0.08 to 2.5 mm².
Function: Ensures secure wire connections, preventing them from being pulled out or loosening from the WAGO terminal blocks after connection. The clamp is attached to the wire terminals to increase connection safety.
Maximum Current: Although the clamp does not connect directly to the electrical circuit, it is used with wires carrying currents up to 24 A, depending on the wire and WAGO terminal specifications.

Certificates
CE Certification: Complies with European Union directives and regulations on safety, health, and environmental protection.
RoHS Compliance: Ensures that the product meets the restrictions on harmful substances (e.g., lead, mercury, and other hazardous materials).
ISO 9001: Manufacturing quality management system ensuring the highest product quality.

Safety
Loosening Protection: The primary function of the WAGO 249-116 wire stabilizing clamp is to ensure a safe and stable connection of electrical wires to WAGO terminals. It reduces the risk of electrical connection failure due to mechanical movement.
Short Circuit Protection: By using the stabilizing clamp, wires remain in position, protecting against potential short circuits caused by improper wire movement or loosening.
Mechanical Durability: WAGO clamps are designed to withstand mechanical stress and provide long-lasting durability for use in various electrical installations.

Compatibility
Compatibility with WAGO Products: The WAGO 249-116 clamp is designed for use with WAGO terminal blocks, including multi-layer connectors and terminal systems commonly used in automation systems, electrical installations, and control panel systems.
Wire Types: Compatible with solid, stranded, and flexible wires ranging from 0.08 to 2.5 mm².
Modular System Compatibility: Often used with modular terminal block systems that can be easily adapted to various electrical projects.

Functionality
Mechanical Stabilization: The stabilizing clamp effectively stabilizes wires to ensure their mechanical strength, especially when wires are subject to vibrations or movement (e.g., in industrial environments or transportation).
Ease of Installation: Due to its design, it easily integrates into existing WAGO systems and does not require special tools for installation. Simply insert it into the terminal block with the wire.
Reliability: Ensures high reliability of electrical connections, long service life, and safety even in harsh industrial environments.

Applications
Automation Systems: Used in various automation and control systems where stable wire connections are required.
Control Panels: Commonly used in control panels to ensure the stability and safety of electrical connections.
Electrical Installations: Widely used in building electrical installations, including offices, factories, and residential buildings, to ensure long-term wire connections to terminal blocks.
Industrial Processes: Ideal for industrial equipment where wires are exposed to vibrations or other mechanical stresses.

The WAGO 249-116 wire stabilizing clamp is a highly reliable and widely used solution for securing and stabilizing electrical connections, ensuring safety, reliability, and ease of use in various electrical installations.
