  • New item   Switch | 2-gang | 10A | flush-mounted | IP20 | white | Sedna Design | Schneider Electric | SDD111105

    Switch | 2-gang | 10A | flush-mounted | IP20 | white | Sedna Design | Schneider Electric | SDD111105

    Code: SDD111105
    Inquire about this item
    Price 5.55 € VAT incl.
    ( 4.59 € VAT excl. )
    Want another price? Suggest yours!

    Schneider Electric Sedna Design SDD111105 is a white flush-mounted 2-gang switch for lighting control in residential and commercial premises. Two rockers control two lighting circuits independently – for example two lamp groups of a chandelier, or a light and an extractor fan.

  • Product description

    Switch | 2-gang | 10A | flush-mounted | IP20 | white | Sedna Design | Schneider Electric | SDD111105

    Schneider Electric Sedna Design SDD111105 is a white flush-mounted 2-gang switch for lighting control in residential and commercial premises. Two rockers control two lighting circuits independently – for example two lamp groups of a chandelier, or a light and an extractor fan.

    Key point:
    Two circuits from one wall box – no need for two separate switches. 10 AX rating, screwless terminals and the standard 73×73 mm mechanism make installation fast, and the Sedna Design range lets you match switches, sockets and frames across the whole project.
    Rating
    10 AX, 250 V AC
    Circuits
    2 (2 rockers)
    Terminals
    Screwless
    Colour
    White RAL 9003

    How it works

    The mechanism with fixing frame is installed in a standard flush box and secured with claws or screws.

    The phase (L) goes to the common terminal and the two circuit wires to the two output terminals. Each rocker opens or closes its own circuit independently.

    Result: a neat, firmly fixed switch, ready for the Sedna Design cover frame of your choice.

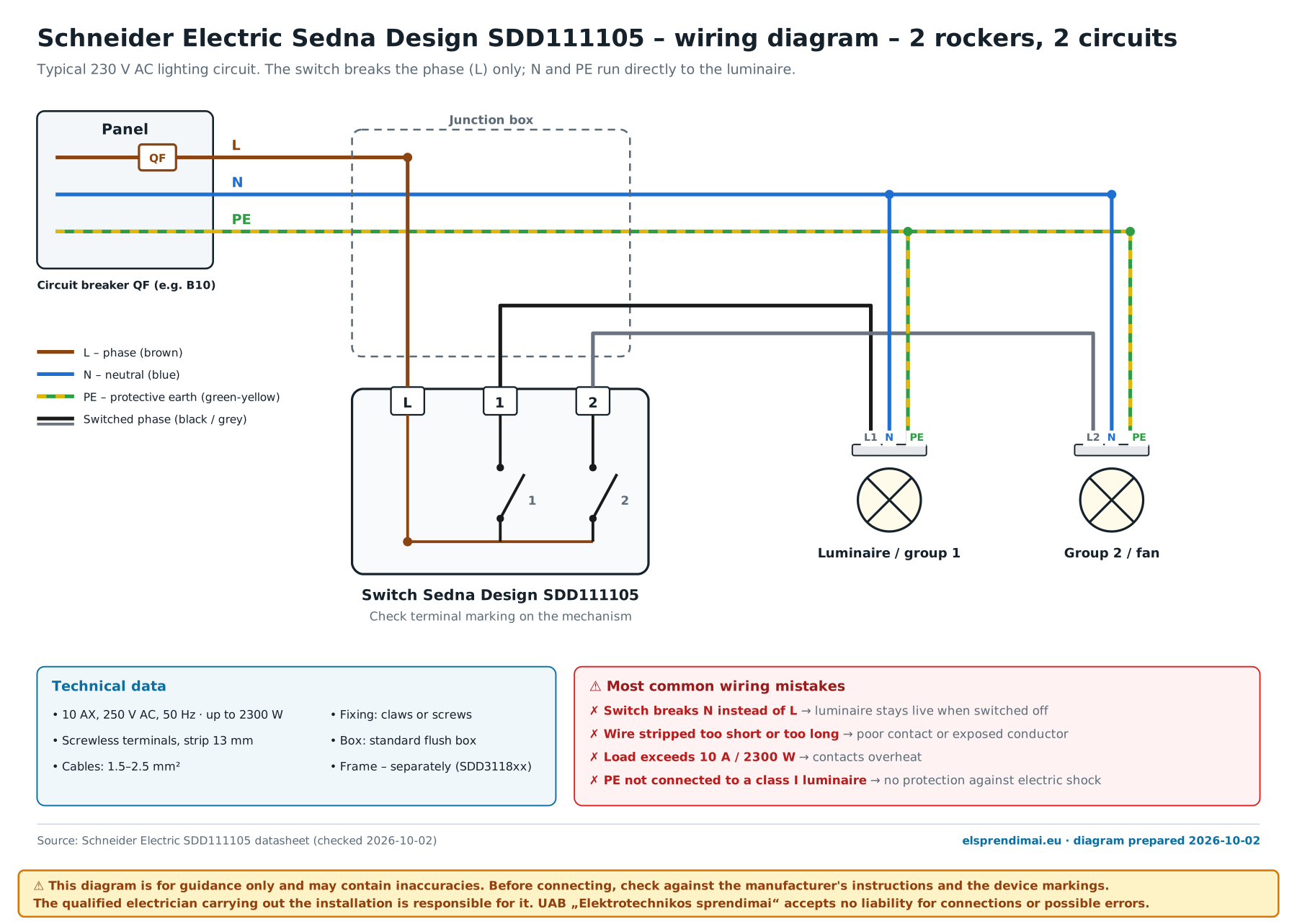

    Wiring diagram

    Schneider Electric Sedna Design SDD111105 wiring diagram

    ☝ Click the diagram to open an enlarged version.

    ⚠ This diagram is for guidance only and may contain inaccuracies.
    Before connecting, check against the manufacturer's instructions and the device markings. The qualified electrician carrying out the installation is responsible for it. UAB „Elektrotechnikos sprendimai“ accepts no liability for connections or possible errors.
    ☝ Elsprendimai.eu recommends: with SDD111105 choose the SDD311801 frame. If a socket (e.g. SDD111021) goes next to it, choose the 2-gang frame SDD311802.
    Why choose SDD111105?
    When a luminaire has two lamp groups, or a bathroom needs separate light and fan control, one 2-gang switch takes one place in the frame and saves a wall box.

    Technical specifications

    Product type Flush-mounted switch – mechanism with rocker and fixing frame
    Manufacturer / range Schneider Electric, Sedna Design & Elements
    Code SDD111105
    Rockers / circuits 2 / 2
    Rated current and voltage 10 AX, 250 V AC, 50 Hz
    Max. power 2300 W
    Terminals Screwless, stripping length 13 mm
    Cable cross-section 1.5–2.5 mm²
    Fixing Claws or screws
    Dimensions (H×W×D) 73 × 73 × 37 mm, projecting depth 24 mm
    Colour / finish White RAL 9003, glossy
    Material Thermoplastic ABS, UV-stabilised
    Protection degree IP20
    Standard IEC 60669-1, CE
    Weight 64 g
    Frame Not included – Sedna Design frames SDD311801–SDD311804

    Main functions

    • Two-circuit control – two independent rockers in one place
    • 10 AX – suitable for LED and inductive loads up to 2300 W
    • Screwless terminals – wires are inserted without a screwdriver, the contact does not loosen
    • Claws or screws – fits both old and new flush boxes
    • Modular design – matches all Sedna Design frames

    Where is it used?

    • Living rooms with two-group chandeliers
    • Bathrooms – light and fan (installed outside zone 2)
    • Kitchens – general and worktop lighting
    • Corridors with two lighting lines
    • Offices – general and additional lighting
    • Staircases and halls

    Use by need

    For the installer.
    Screwless terminals and standard fixing cut installation time – especially on projects with dozens of points.
    For apartment renovation.
    One style for all switches, sockets and frames – easy to put the order together.
    For home buyers.
    A simple, clean white switch that suits most interiors.

    Practical use

    If a chandelier has two lamp groups, run a four-core cable (two switched phases, N and PE) to the luminaire – one rocker switches part of the lamps, the other the rest. Close the switch with an SDD311801 frame or combine it in a multi-gang frame.

    Pros

    • 10 AX rating – headroom for LED and inductive loads
    • Screwless terminals – fast and reliable connection
    • Fixing with claws or screws
    • IEC 60669-1 standard, CE marking
    • Same design in cream and anthracite (SDD112105 / SDD114105)

    Cons / limitations

    • Frame not included – sold separately (SDD3118xx)
    • IP20 – dry rooms only; for damp locations choose sealed models
    • Not a two-way switch – for control from two places use two-way switches, e.g. SDD111108

    Safety and installation notes

    • Disconnect power and verify absence of voltage before installation
    • The switch must break the phase (L), not the neutral (N)
    • Strip wires 13 mm and insert them fully
    • Do not exceed 10 A and 2300 W
    • Installation must be carried out by a qualified electrician

    Quick selection guide

    10 AX / 250 V
    2 rockers
    IP20
    RAL 9003
    Suitable when you need:
    • to control two circuits from one place
    • to save space in the frame
    • a white switch from the Sedna Design range
    Check before use:
    • load does not exceed 10 A / 2300 W
    • the right frame size is selected
    • the room is dry (IP20)
    Important reminder: The switch does not protect the circuit against overload – that is the job of the circuit breaker in the panel.

    FAQ

    Is the frame included?
    No, the frame is sold separately – Sedna Design SDD311801–SDD311804 fit.
    What does 10 AX mean?
    10 A rated current, tested with inductive and capacitive loads such as LED drivers.
    Which cable sizes can be connected?
    The manufacturer specifies 1.5–2.5 mm²; strip length 13 mm.
    Is it suitable for bathrooms?
    Only outside the wet zones – protection degree is IP20.
    Are other colours available?
    Yes – cream and anthracite: SDD112105 / SDD114105.

    Switch | 2-gang | 10A | flush-mounted | IP20 | white | Sedna Design | Schneider Electric | SDD111105

    White flush-mounted 2-gang switch Schneider Electric Sedna Design SDD111105: 10 AX, 250 V, screwless terminals, IP20. Matches Sedna Design cover frames.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
