  • New item   Cover frame | 1-gang | white | Sedna Design | Schneider Electric | SDD311801

    Cover frame | 1-gang | white | Sedna Design | Schneider Electric | SDD311801

    Code: SDD311801
    Inquire about this item
    Price 1.07 € VAT incl.
    ( 0.88 € VAT excl. )
    Want another price? Suggest yours!

    Schneider Electric Sedna Design SDD311801 is a white 1-gang cover frame for switches, sockets and other Sedna Design mechanisms. It covers one mounting point.

  • Product description

    Cover frame | 1-gang | white | Sedna Design | Schneider Electric | SDD311801

    Schneider Electric Sedna Design SDD311801 is a white 1-gang cover frame for switches, sockets and other Sedna Design mechanisms. It covers one mounting point.

    Key point:
    The frame completes the installation: it hides the box edges and wall irregularities around the mechanism. One frame fits any Sedna Design mechanism – switch, socket, data or TV outlet.
    Gangs
    1
    Dimensions
    85 × 85 × 10 mm
    Mounting
    Horizontal / vertical
    Colour
    White RAL 9003

    How it works

    First, Sedna Design mechanisms with fixing frames are installed in the boxes.

    The cover frame is placed over the mechanisms and locked, then rockers or socket covers are fitted.

    Result: a flat, neat installation point with no visible box edges.

    Dimensions and installation

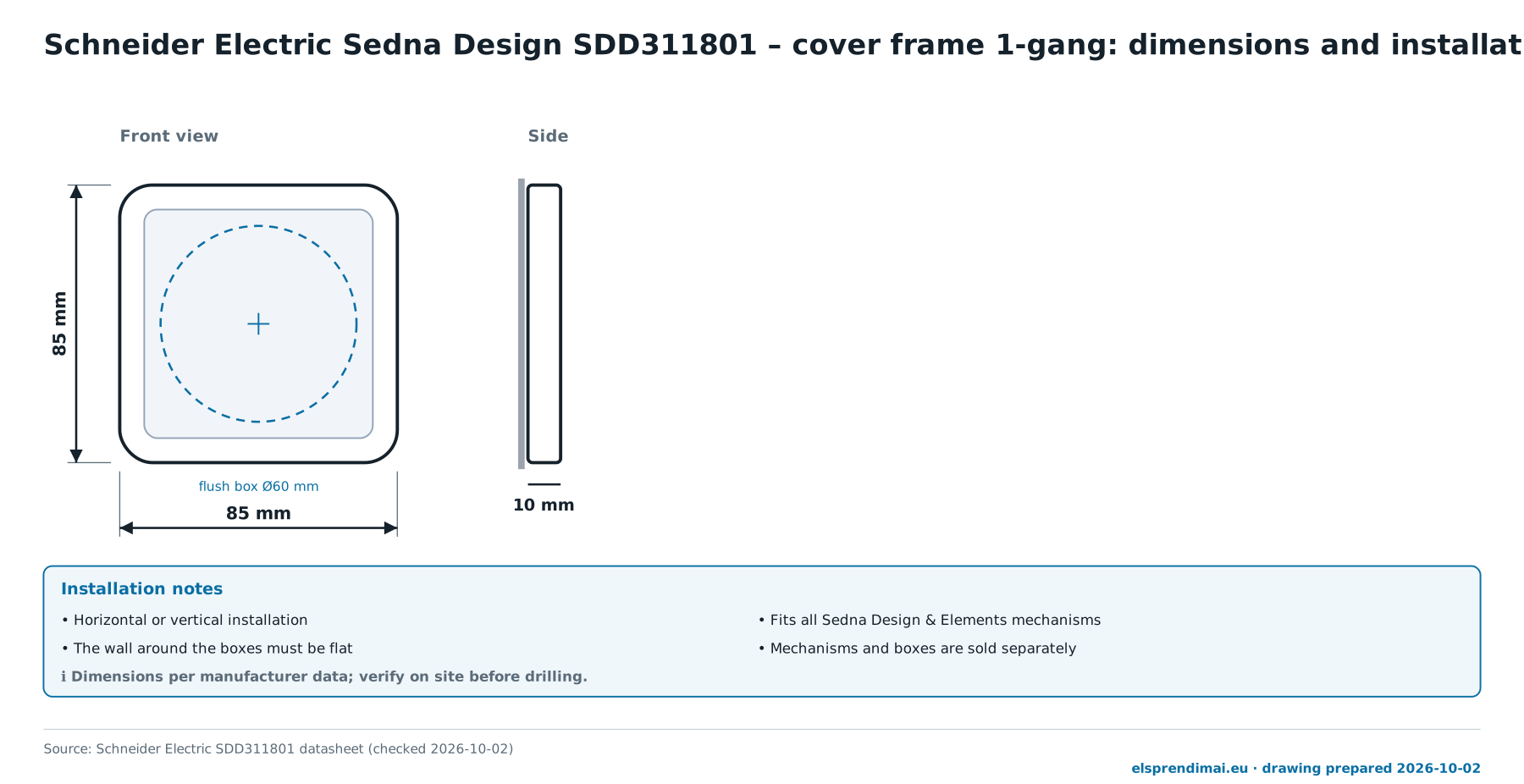

    Schneider Electric Sedna Design SDD311801 frame dimensions

    ☝ Click the drawing to open an enlarged version.

    ☝ Elsprendimai.eu recommends: fit this frame with the SDD111101 switch or the 2-gang switch SDD111105, the SDD111021 socket or the SDD111451 data outlet.
    Why choose SDD311801?
    This is the most used frame – for a single switch or socket. Only 10 mm thick, it sits close to the wall.

    Technical specifications

    Product type Cover frame for flush installation
    Manufacturer / range Schneider Electric, Sedna Design & Elements
    Code SDD311801
    Number of gangs 1
    Dimensions (H×W×D) 85 × 85 × 10 mm
    Mounting direction Horizontal and vertical
    Colour / finish White RAL 9003, glossy
    Material Thermoplastic ABS, UV-stabilised
    Protection degree IP20
    Certifications FIMKO, SEMKO, NEMKO, VDE, AENOR
    Weight 10 g
    Compatibility Sedna Design & Elements mechanisms (e.g. SDD111101, SDD111105)

    Main functions

    • 1 gang – for one mechanism
    • Horizontal or vertical mounting – to suit the wall and furniture layout
    • 10 mm thick – slim, sits close to the wall
    • UV-stabilised ABS – white stays white longer
    • Universal – fits all Sedna Design mechanisms

    Where is it used?

    • Single switches in rooms and corridors
    • Single sockets
    • Data, TV or audio outlets
    • Apartment and house renovation
    • Offices
    • Hotels

    Use by need

    For the installer.
    One frame type for all Sedna Design mechanisms – fewer items in the estimate.
    For renovation.
    Frames and mechanisms can be replaced without changing standard boxes.
    For home buyers.
    White, glossy, clean-lined frame that suits most interiors.

    Practical use

    To finish a single switch or socket, this frame and a Sedna Design mechanism such as the SDD111101 switch are all you need.

    Pros

    • Fits all Sedna Design mechanisms
    • Horizontal and vertical mounting
    • Slim – 10 mm
    • UV-stabilised white RAL 9003
    • Same design in cream and anthracite (SDD312801 / SDD314801)

    Cons / limitations

    • Frame only – mechanisms sold separately
    • IP20 – for dry rooms
    • Single gang – for several points choose SDD311802–SDD311804

    Safety and installation notes

    • Fit the frame only on a completed, de-energised installation
    • Check that the mechanisms are firmly fixed before fitting
    • The wall around the box must be flat – otherwise gaps remain
    • Clean with a damp cloth, no solvents

    Quick selection guide

    1 gang
    85 mm
    IP20
    RAL 9003
    Suitable when you need:
    • to cover a single switch or socket
    • a white Sedna Design frame
    • a slim, neat frame
    Check before use:
    • the mechanisms are from the Sedna Design range
    • the box is standard
    • the wall around the box is flat
    Important reminder: The frame is decorative – it does not increase the protection degree or replace mechanism fixing.

    FAQ

    Are mechanisms included?
    No, this is the frame only – switches and sockets are sold separately.
    Which mechanisms does it fit?
    All Sedna Design & Elements mechanisms, e.g. SDD111101, SDD111105.
    Can it be mounted vertically?
    Yes, the manufacturer specifies horizontal and vertical mounting.
    What are the dimensions?
    85 × 85 × 10 mm.
    Are other colours available?
    Yes – cream and anthracite: SDD312801 / SDD314801.

    Cover frame | 1-gang | white | Sedna Design | Schneider Electric | SDD311801

    White 1-gang cover frame Schneider Electric Sedna Design SDD311801: 85 × 85 × 10 mm, horizontal and vertical mounting, fits all Sedna Design mechanisms.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
