Switch / changeover switch | 2-gang | 10A | 230V | surface-mounted | plastic | retro style | white

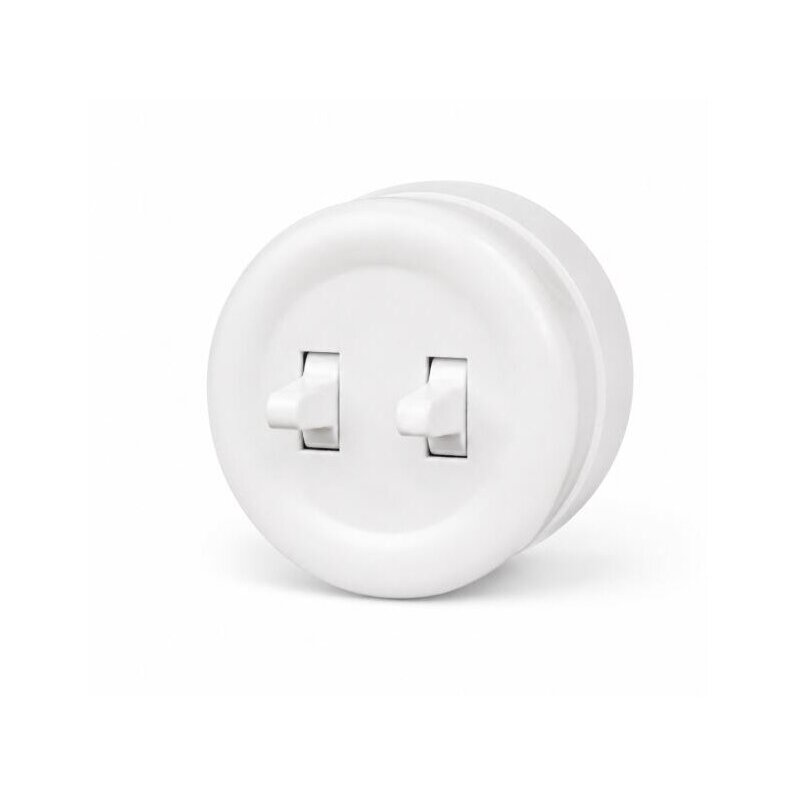

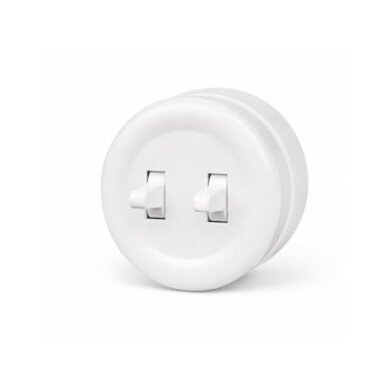

White 2-gang surface-mounted switch – retro style, 10A, 250 V, IP20

2-gang surface-mounted light switch is designed for surface-mounted electrical installations and can be used to control two separate lighting circuits or other compatible circuit functions, depending on the specific wiring diagram.

The switch features a classic retro and loft-style design, making it suitable for interiors where electrical installation components remain visible and become part of the overall design. The white housing can be combined with surface-mounted socket outlets, frames, decorative cables and insulators of the same style.

The housing is made of heat-resistant thermoplastic. Switch dimensions: 62 mm diameter and 47 mm height. Electrical ratings: 10A, 250 V AC, protection rating – IP20.

• Controlling two separate groups of luminaires.
• Main and decorative lighting.
• Two different lighting zones in a room.
• Changeover switching circuits, if supported by the contact configuration of the specific switch.

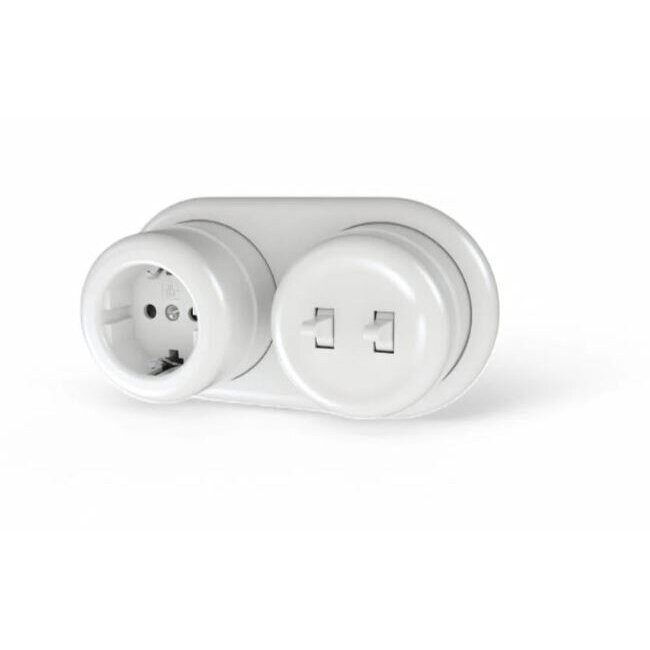

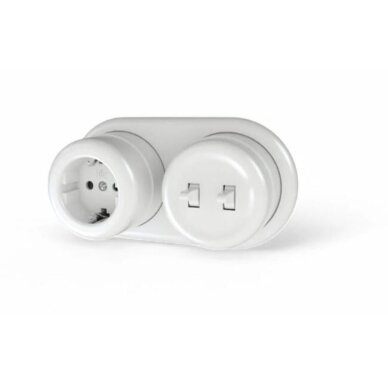

• Combine with white surface-mounted socket outlets.
• Use surface-mounted frames of the same style.
• In exposed retro installations, it can be combined with decorative cable insulators.
• Coordinate the electrical installation components with the colours of the walls, furniture and light fittings.
• Maintain a consistent switch mounting height throughout the room.

• 2-key design.
• Surface-mounted installation.
• Retro, loft and vintage design.
• White housing colour.
• Heat-resistant thermoplastic housing.
• Changeover switch function.
• 10AX rated current.
• 250 V AC rated voltage.
• IP20 protection rating.
• 62 mm housing diameter.
• 47 mm housing height.
• Suitable for visible surface-mounted electrical installations.

1. Disconnect the power supply. Before carrying out installation work, check that the circuit is de-energised.
2. Select the installation location. The switch must be installed in a dry and easily accessible location.
3. Check the wall substrate. Select fasteners suitable for its construction.
4. Plan the cable entry. Conductors must not be pinched, damaged or under tension.
5. Check the contact diagram. Before connecting the wires, identify the functions of the specific terminals.
6. Connect the conductors. Make the connections according to the terminal markings of the specific switch and the designed wiring diagram.
7. Check the terminal connections. The conductors must be securely connected.
8. Secure the switch to the wall. Do not overtighten the plastic housing.
9. Install the outer housing section.
10. Restore power and test both keys. Check that each intended control function operates correctly.

• Use only in a properly installed electrical system.
• Do not exceed the specified 10AX / 250 V electrical rating.
• Disconnect the power before installing or dismantling the switch.
• Do not use a damaged or cracked housing.
• Protect the switch from water and condensation.
• Do not install near strong heat sources.
• Periodically check that the housing and fasteners have not become loose.
• Clean with a soft dry or slightly damp cloth.
• Do not use aggressive solvents or abrasive cleaning agents.

White 2-key surface-mounted switch for retro installations

The 2-key surface-mounted switch is intended for surface-mounted electrical installations and can be used to control separate lighting circuit functions. The provided information also specifies a changeover switch function.

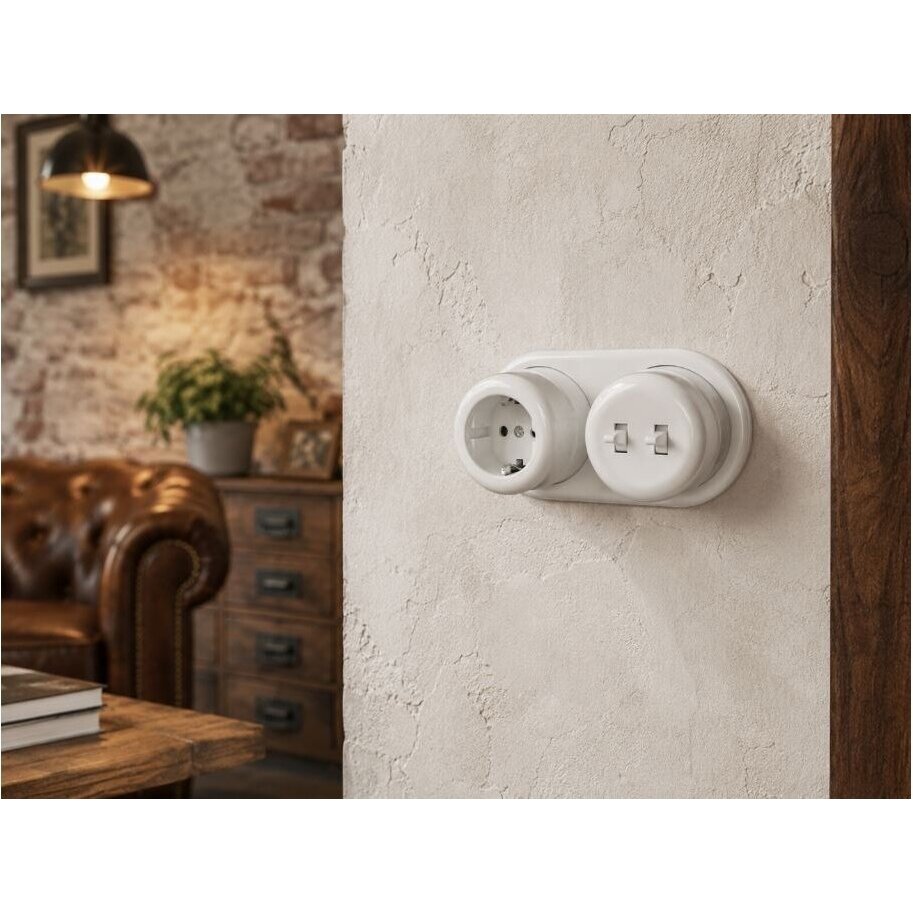

The classic retro and loft-style design is suitable for vintage interiors, restored manor houses, country homes, wooden houses, lofts, hotels, restaurants and residential spaces.

The IP20 protection rating means that the switch is intended for dry indoor areas. Its surface-mounted design allows it to be combined with visible retro-style electrical installations, decorative cables, insulators, frames and socket outlets of the same style.
