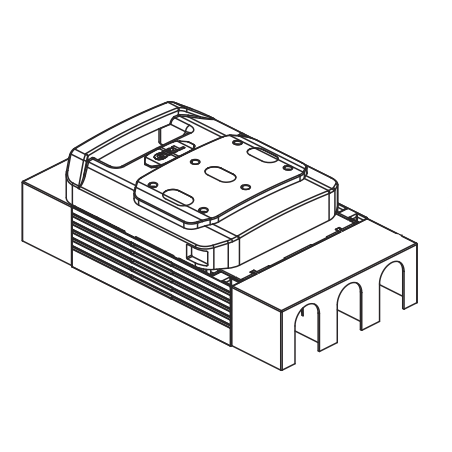

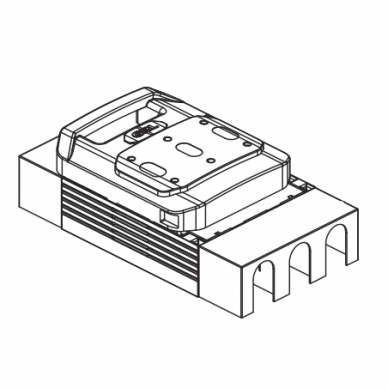

  • Terminal cover | 250A | 690VAC | for fuse disconnector block

    Code: DN53142

    Terminal covers designed for DNH1-250 fuse switch disconnector blocks. Intended to ensure safe insulation of electrical contacts, reducing the risk of accidents and increasing system reliability. High-quality construction suitable for both new installations and the modernization of existing systems.

  • Technical Specifications:
    Compatibility: DNH1-250 fuse switch disconnector holder blocks
    Quantity in set: 2 pcs
    Material: High-strength plastic, resistant to UV radiation and high temperatures
    Dimensions:

    Length (l): 183.5 mm

    Width (w): 68 mm

    Height (h): 65 mm

    Depth (d): 33 mm

    Features:

    Protects contacts from accidental touch

    Improves safety during operation and use

    Simple and fast installation

    Enhances installation aesthetics and neatness

    Application:

    Designed for electrical distribution systems

    For industrial and commercial electrical cabinets

    For protecting cable connection points

    Suitable for modernization and safety improvement projects

    Pros:

    Increases electrical installation safety

    Convenient installation and maintenance

    Suitable for various working environments

    Set includes 2 pcs, suitable for full protection

    Cons:

    Additional component – requires allocated space in limited installation areas

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
