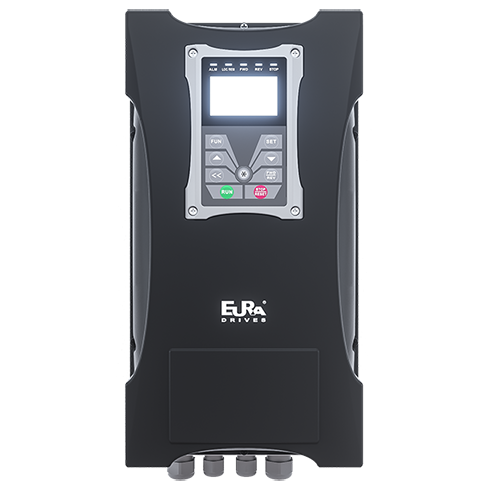

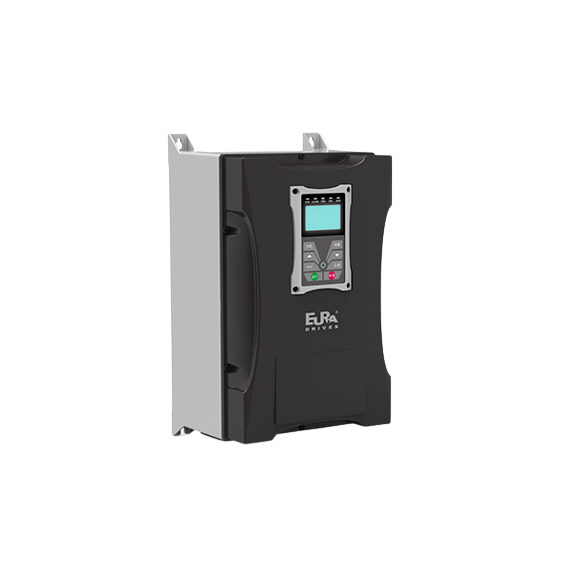

Three-phase frequency inverter | 3 kW | 7A | 400VAC | IP66 | with EMC filter | designed for controlling three-phase motors | EP66-0030T3 Eura Drives

Technical Specifications
Power: 3 kW
Input voltage: 3 x 400 V AC
Output voltage: 3 x 400 V AC
Rated current: 7 A
Input current: 9 A
Frequency: 44–67 Hz
Integrated braking resistor: Yes
Minimum braking resistor: 150 Ω / 150 W
Protection class: IP66 – completely dust-tight and resistant to water jets
EMC filter: Integrated
Display: 4-line LCD showing operating parameters and allowing easy programming

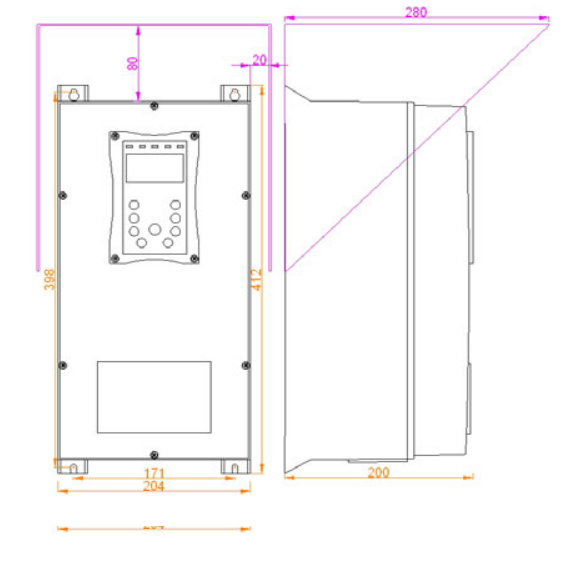

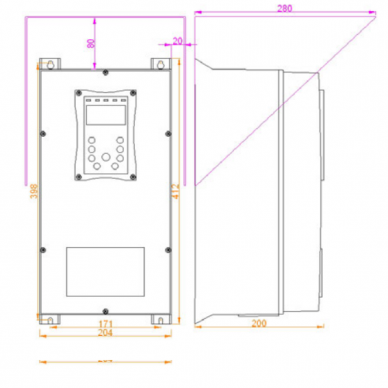

Dimensions (W x H x D): 200 × 412 × 200 mm
Weight: 6.2 kg
Frame size: I1

Functions

Smooth speed control: ensures gradual motor start and stop.

Energy saving: optimizes motor performance according to load, reducing power consumption.

Integrated EMC filter: minimizes electromagnetic interference for stable operation.

Built-in braking resistor: controls braking energy without external devices.

LCD screen: easy parameter monitoring and configuration.

Overload, short circuit, and overheating protection: ensures long service life and equipment safety.

Applications

For engineers and automation specialists: Ideal for industrial systems – control of fans, pumps, conveyors, presses, and refrigeration equipment.

For electricians: Easy installation with all components integrated – can be mounted directly on the equipment.

For domestic or commercial use: Suitable for controlling higher-power three-phase motors, e.g., garage ventilation or industrial door systems.

Advantages

IP66 protection – suitable for humid, dusty, or outdoor environments.

Integrated EMC filter – reduces network interference.

Built-in braking resistor – faster motor deceleration.

Clear LCD display – convenient programming and monitoring.

Disadvantages

Heavier weight – requires a strong mounting surface.
