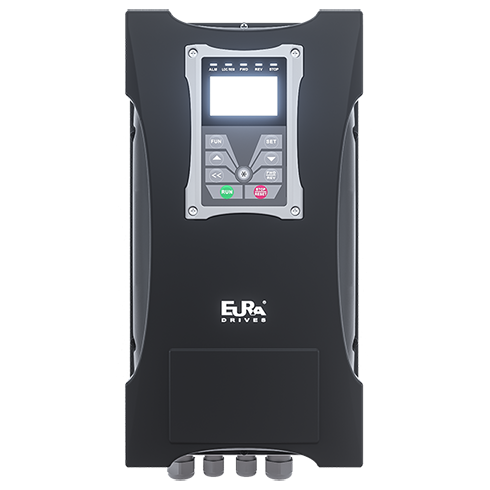

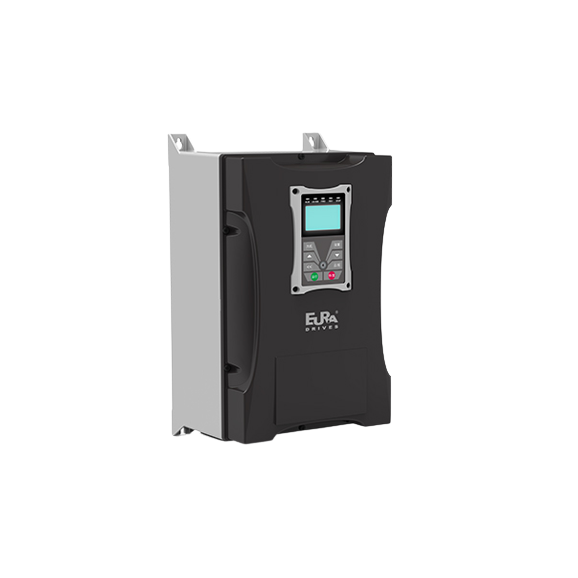

Three-phase frequency inverter | 7,5 kW | 17A | 400VAC | IP66 | with EMC filter | designed for controlling three-phase motors | EP66-0075T3 Eura Drives

Technical Specifications
Power: 7.5 kW
Input voltage: 3 x 400 V AC
Output voltage: 3 x 400 V AC
Rated current: 17 A
Input current: 20 A
Frequency: 44–67 Hz
Integrated braking resistor: Yes
Minimum braking resistor: 75 Ω / 500 W
Protection class: IP66 – completely dust-tight and resistant to powerful water jets
EMC filter: Integrated
Display: 4-line LCD showing operating parameters and allowing easy programming

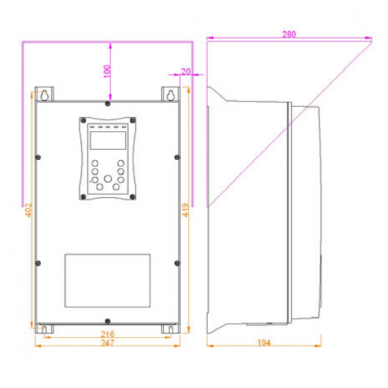

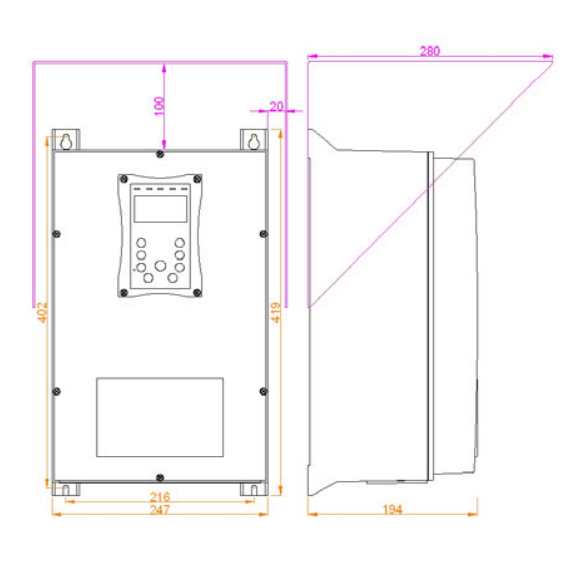

Dimensions (W x H x D): 242 × 418 × 200 mm
Weight: 8.2 kg
Frame size: I2

Functions

Smooth speed control: ensures gradual motor start and stop.

Energy saving: optimizes motor performance according to load, reducing power consumption.

Integrated EMC filter: minimizes electromagnetic interference for stable operation.

Built-in braking resistor: controls braking energy without external devices.

LCD screen: easy monitoring and configuration of parameters.

Overload, short-circuit, and overheating protection: ensures long lifespan and equipment safety.

Applications

For engineers and automation specialists: Ideal for industrial systems – control of fans, pumps, conveyors, presses, and cooling units.

For electricians: Easy installation. All components are integrated, allowing direct mounting on the equipment.

For domestic or commercial use: Suitable for controlling high-power three-phase motors, such as garage ventilation or industrial door systems.

Advantages

IP66 protection class – suitable for humid, dusty, or outdoor environments.

Integrated EMC filter – reduces network interference.

Built-in braking resistor – faster motor deceleration.

Clear LCD display – convenient programming and monitoring.

Disadvantages

Heavier weight – requires a strong mounting surface.
