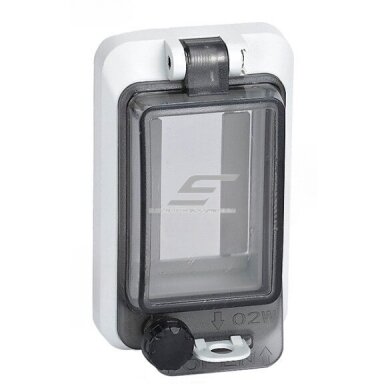

  • Transparent protective window cover for modular devices | 2 modules | 100×57×28 mm | IP67 | for distribution boxes | NTL1002

    Code: NTL1002

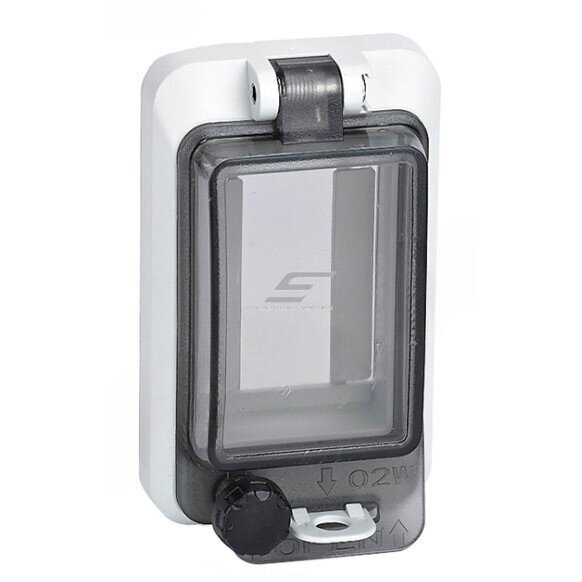

    Transparent hinged protective window for 2-module devices, 100×57×28 mm, IP67. Mounted in a cut-out in the lid of a distribution board or enclosure.

  • Transparent protective window cover for modular devices | 2 modules | 100×57×28 mm | IP67 | for distribution boxes | NTL1002

    NTL1002 is a transparent hinged window mounted in a cut-out in the lid of an electrical distribution board, enclosure or control cabinet. Through it you see the fronts of 2 modules of devices – circuit breakers, relays, meters, indicators – and by lifting the lid you can operate them without opening the whole board.

    Key point:
    Outdoors or in a damp room, opening the board every time you need to read a meter or reset a breaker is both a risk and a hassle. The window lets you see and operate the devices, while the closed lid with IP67 protection keeps out dust and water.
    Space
    2 modules (18 mm each)
    Dimensions
    100×57×28 mm
    Protection class
    IP67
    Lid
    transparent PC, hinged

    How it works

    A cut-out is made in the lid of the board or enclosure and the window frame is fitted and fixed in it. Modular devices on the DIN rail are arranged so that their fronts with toggles are within the window area.

    The transparent polycarbonate lid lets you check the status of the devices at any time: which breaker is off, what the meter or relay display shows, whether indicators are lit.

    When a breaker needs to be switched, the latch is released and the lid is lifted. Once the lid is closed and latched, sealing is restored.

    Why choose NTL1002?
    An outdoor or damp-room board becomes as convenient as an indoor consumer unit – you see and operate the devices, they stay protected, and the board itself is not opened unnecessarily.

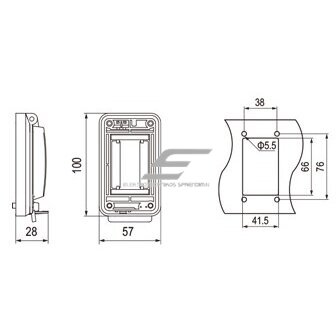

    Technical specifications

    Product type Transparent hinged protective window for modular devices
    Code NTL1002
    Space for devices 2 modules (18 mm wide)
    Outer dimensions 100×57×28 mm
    Protection class IP67 (when properly installed, lid closed)
    Lid material Transparent polycarbonate (PC)
    Lid type Hinged, with latch
    Mounting In a cut-out in the lid / wall of a board, enclosure or cabinet
    Compliance CE, RoHS
    Series NTL – versions from 2 to 18 modules available

    Main functions

    • Visible devices – breaker positions and meter or relay readings can be checked without opening the board.
    • Quick access – lifting the lid gives access to device toggles and buttons.
    • IP67 protection – the closed lid protects the devices against dust and water.
    • Transparent polycarbonate – a robust, clear material that does not obscure readings.
    • Preserved enclosure sealing – the board is not opened unnecessarily, so less moisture and dirt get inside.
    • Neat appearance – all modular devices in one row behind a single window.

    Where is it used?

    • Outdoor distribution boards at houses, in yards, on poles
    • Sealed enclosures for EV charging, yard lighting and gate automation circuits
    • AC boards of solar power plants
    • Damp rooms: basements, boiler rooms, pump rooms, saunas
    • Farm buildings, livestock farms, warehouses
    • Industrial control cabinets and construction site boards

    Use by need

    For electricians.
    Turns a sealed enclosure into a distribution board with visible and accessible devices – without a special enclosure with a door.
    For home or farmstead owners.
    Reset a breaker in an outdoor board by lifting the lid, without opening the whole board in the rain.
    For panel builders.
    Uniform NTL series windows from 2 to 18 modules make it easy to standardise outdoor board assembly.

    Practical example

    If a sealed IP67 enclosure with lighting and gate breakers stands in the yard, every opening means unscrewing the lid and risking water getting inside. With NTL1002 installed, you see the breaker positions immediately, and a tripped breaker can be reset in seconds by lifting the lid.

    Pros

    • Devices visible without opening the board
    • Quick access to breakers
    • IP67 protection with the lid closed
    • Transparent PC lid
    • Suitable for sealed enclosures and cabinets
    • Series from 2 to 18 modules

    Cons / limitations

    • A cut-out must be made in the enclosure – additional installation work
    • IP67 is maintained only with an accurate cut-out and a closed lid
    • Modular devices must be precisely aligned with the window
    • The window size must match the number of device modules

    Safety and installation notes

    • Check the exact cut-out dimensions against the product before cutting.
    • The cut-out must be clean, without cracks or chips, otherwise sealing will suffer.
    • Align the devices on the DIN rail so that the toggles do not press against the lid.
    • After installation, check that the lid closes and latches freely.
    • Carry out electrical installation work only with the power off.
    • Do not close the lid if there are wires or foreign objects between it and the frame.

    Quick selection guide

    2 modules
    100×57×28 mm
    IP67
    transparent PC lid
    Suitable when you need to:
    • see and operate modular devices outdoors or in damp conditions;
    • turn a sealed enclosure into a convenient distribution board;
    • keep the board sealed while checking devices often.
    Check before use:
    • how many device modules need to be visible (versions from 2 to 18 modules);
    • whether a 100×57 mm window fits in the enclosure lid;
    • whether the devices can be arranged in one row behind the window.
    Important reminder: the window is not the board itself – it needs an enclosure to be mounted in, and sealing depends on an accurate cut-out.

    FAQ

    How many devices are visible through the window?
    2 modules of 18 mm, e.g. 2 single-pole circuit breakers.
    Can a breaker be switched without opening the board?
    Yes, lifting the window lid gives access to the device toggles.
    Is it suitable for outdoor use?
    Yes, the IP67 rating is intended for outdoor and damp environments when the window is properly installed.
    What is the window mounted in?
    In a cut-out in the lid of a distribution board, sealed enclosure or cabinet.
    Are other sizes available?
    Yes, the NTL series includes windows from 2 to 18 modules.
    What are the window dimensions?
    100×57 mm, depth 28 mm.

    Transparent protective window cover 2 modules IP67 NTL1002

    Hinged transparent polycarbonate window for 2-module devices, 100×57×28 mm, IP67 – mounted in the lid of a board or sealed enclosure so that breakers and meters stay visible and accessible without opening it.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
  • Alternative products

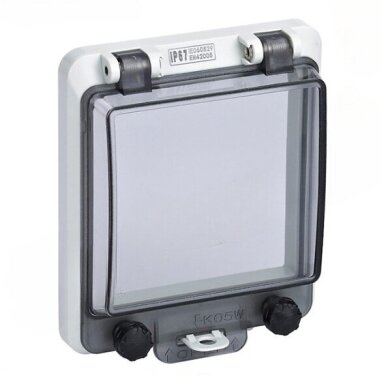

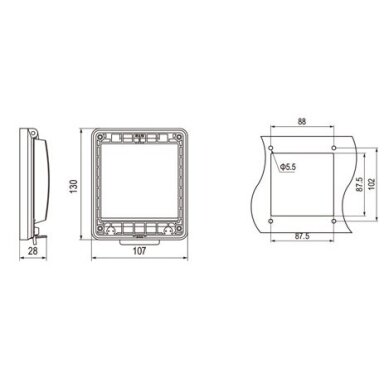

    Transparent square protective window cover | 107×124×33 mm | IP67 | for distribution boxes | NTL1086
    Code: NTL1086

    Transparent hinged square protective window for devices, 107×124×33 mm, IP67. Mounted in a cut-out in the lid of a board or enclosure.

    Price 15.84 € VAT incl.
    ( 13.09 € VAT excl. )

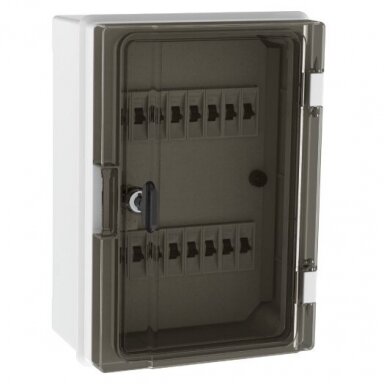

    Plastic surface-mounted hermetic electrical distribution panel | box | 16 modules | halogen-free | with sealing option | 210x300x130mm | transparent doors | IP65 | TEM
    Code: 920.2130.132.016

    The plastic surface-mounted hermetic electrical distribution panel (model TEM 920.2130.132.016) is specifically designed to ensure efficient electricity distribution and safety in various industrial and commercial environments. This panel is made of high-quality plastic, which is lightweight yet durable and resistant to external environmental factors.

    Price 27.72 € VAT incl.
    ( 22.91 € VAT excl. )

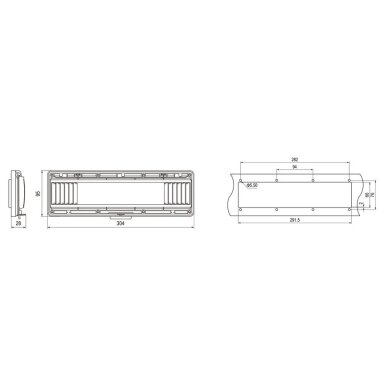

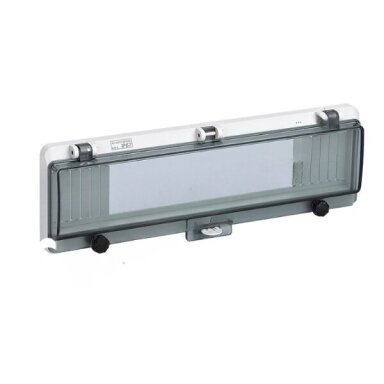

    Transparent protective window cover for modular devices | 16 modules | 304×95×28 mm | IP67 | for distribution boxes | NTL1016
