  • New item   Two-way switch | 2-gang | 10 AX | 250 V | flush | IP20 | anthracite | Sedna Design | Schneider Electric | SDD114108
    New item   Two-way switch | 2-gang | 10 AX | 250 V | flush | IP20 | anthracite | Sedna Design | Schneider Electric | SDD114108 1
    New item   Two-way switch | 2-gang | 10 AX | 250 V | flush | IP20 | anthracite | Sedna Design | Schneider Electric | SDD114108 2

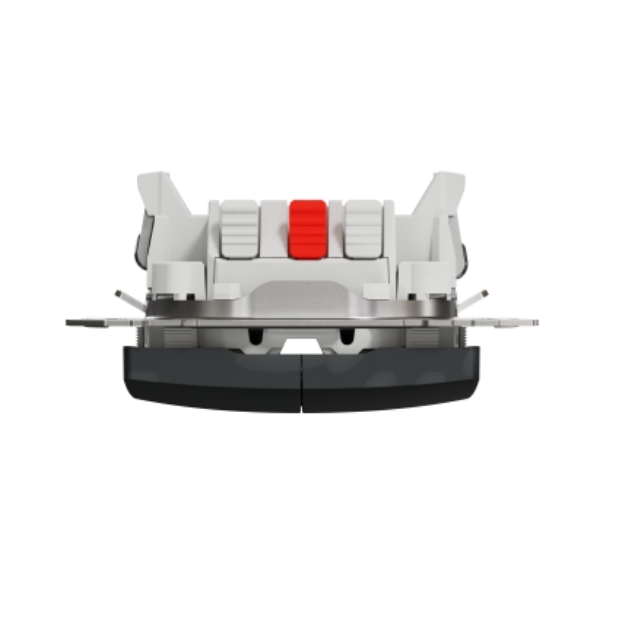

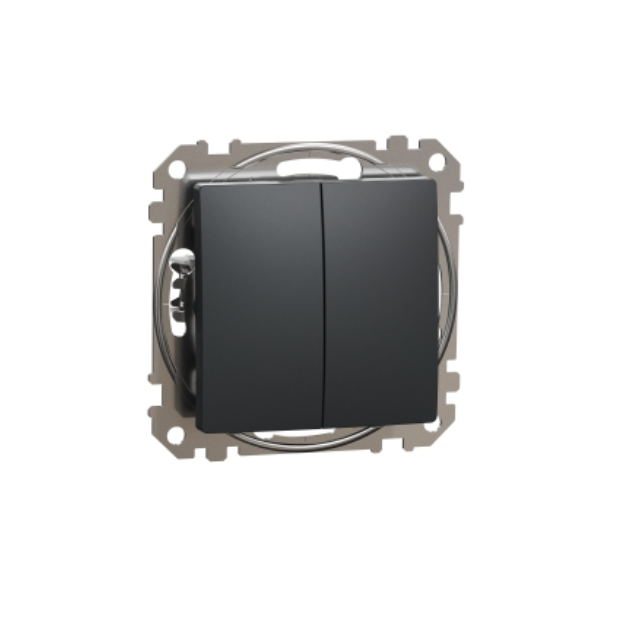

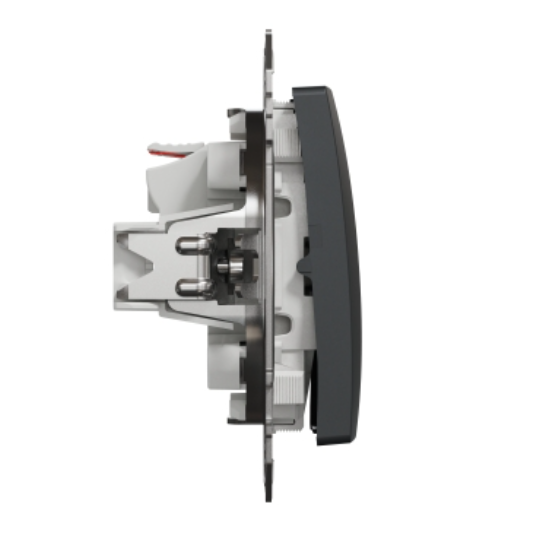

    Two-way switch | 2-gang | 10 AX | 250 V | flush | IP20 | anthracite | Sedna Design | Schneider Electric | SDD114108

    Code: SDD114108
    Inquire about this item
    Price 8.61 € VAT incl.
    ( 7.12 € VAT excl. )
    Want another price? Suggest yours!

    2-gang two-way switch (2 × single-pole two-way), 10 AX, 250 V AC, flush-mounted, IP20, anthracite RAL 7021. Without frame.

  • Product description

    Two-way switch | 2-gang | 10 AX | 250 V | flush | IP20 | anthracite | Sedna Design | Schneider Electric | SDD114108

    Schneider Electric Sedna Design SDD114108 is a 2-gang two-way switch in anthracite. Each rocker controls a separate lighting group from two locations, ideal for corridors, stairways and rooms with several entrances.

    Key point:
    One mechanism replaces two switches: two lighting groups controlled from two places while occupying only one box position. The frame is sold separately – choose 1–5 gang Sedna frames.
    Current / voltage
    10 AX / 250 V AC
    Circuit
    2 × two-way
    Colour
    anthracite RAL 7021
    Protection
    IP20 / IK02

    Operating principle

    The mechanism with fixing frame is installed in a flush box and fixed with screws or claws (46…60 mm).

    Each rocker contact switches the phase between two outputs – together with a second two-way switch elsewhere this gives a staircase circuit.

    A Sedna Design frame of choice is fitted over the mechanism.

    Why choose SDD114108?
    Two lighting groups from two places in one mechanism – fewer boxes and a tidy wall.

    Technical specifications

    Product type Two-way switch, 2-gang (2 × single-pole two-way)
    Manufacturer / code Schneider Electric / SDD114108
    Range Sedna Design & Elements
    Rated current / voltage 10 AX / 250 V AC, 50 Hz
    Load up to 2300 W; LED / CFL – up to 100 W
    Terminals screw, 1.5…2.5 mm², strip 13 mm
    Mounting flush; screws or claws (46…60 mm)
    Contents mechanism with fixing frame and rockers; frame sold separately
    Material / colour ABS, UV-stabilised, matt, anthracite RAL 7021
    Dimensions 73 × 73 × 37 mm, protrusion 24 mm
    Weight 0.061 kg
    Protection IP20, IK02
    Standard IEC 60669-1, CE

    Main functions

    • Two switches in one – two groups from two places.
    • 10 AX – also suits lighting loads with inrush current.
    • Screw or claw fixing – fits new and old boxes.
    • UV-stabilised ABS – colour stays stable.
    • Sedna system – combines with all Sedna Design frames and mechanisms.

    Where is it used?

    • Corridors and hallways
    • Stairways
    • Rooms with two entrances
    • Living rooms with several lighting zones
    • Offices and hotel rooms
    • Apartment and house renovation

    Use by need

    For the electrician.
    Screw terminals and a wide claw range – fast installation.
    For the interior designer.
    Anthracite matches modern interiors and dark frames.
    For the home owner.
    Comfortable control of two light groups from both ends of the corridor.

    Practical use

    If a long corridor has ceiling and wall lights, an SDD114108 is installed at both ends – each group can be switched on and off from either end.

    Pros

    • 2 two-way switches in one mechanism
    • 10 AX current
    • Matt anthracite RAL 7021
    • Screw or claw fixing
    • Complies with IEC 60669-1

    Cons / limitations

    • Frame not included
    • Control from 3 or more places needs an intermediate switch
    • IP20 – not for damp rooms without extra protection

    Safety and installation notes

    • Switch off the circuit breaker and verify absence of voltage before installation.
    • Follow the two-way wiring – phase to the common terminal, travellers between both switches.
    • Do not exceed 10 AX and 2300 W.
    • Installation must be done by a qualified electrician.

    Quick selection guide

    10 AX / 250 V
    2-gang
    two-way
    IP20
    RAL 7021
    IEC 60669-1
    Suitable when you need:
    • Controlling two light groups from two places
    • Saving wall space
    • Matching Sedna Design anthracite frames
    Check before use:
    • Frame colour and number of gangs
    • Box type and fixing
    • Whether a two-way switch is installed at the other location
    Important reminder: A two-way switch works only in pairs; control from three or more places requires an intermediate switch.
    ☝ Elsprendimai.eu recommends:
    • Sedna Design anthracite frames, 1–5 gang
    • Sedna Design anthracite intermediate switch – for 3 or more control points

    FAQ

    Is the frame included?
    No – the frame is sold separately.
    What rating?
    10 AX, 250 V AC.
    Can it control from two places?
    Yes – each rocker is a two-way switch.
    What terminals?
    Screw terminals for 1.5…2.5 mm² wires.
    How is it fixed?
    With screws or claws into a flush box.
    What colour?
    Matt anthracite RAL 7021.

    Documents

    Two-way switch | 2-gang | 10 AX | 250 V | flush | IP20 | anthracite | Sedna Design | Schneider Electric | SDD114108

    Schneider Electric Sedna Design SDD114108 – 2-gang two-way switch 10 AX 250 V, anthracite, IP20. Control of two lighting groups from two locations.
