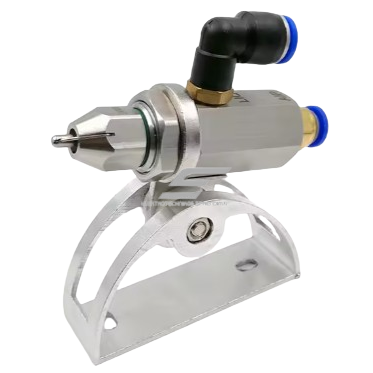

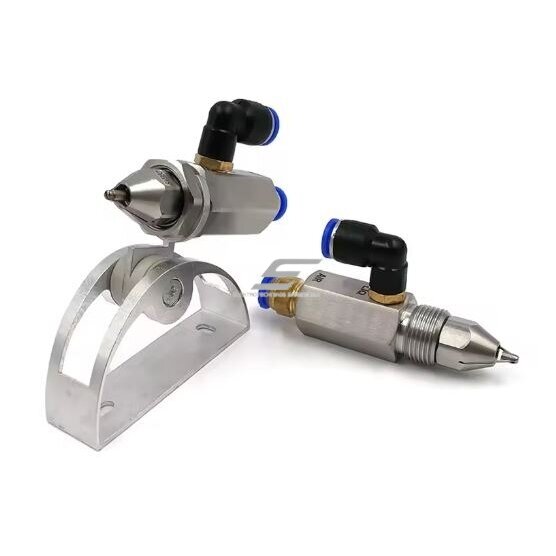

Ultrasonic micro mist spraying nozzle | micro sprayer | for dust suppression | for humidification | 80° | 3-6µm | 7.1l/h

Technical specifications

Spray angle: 80°
Droplet size: 3-6 µm (true dry fog)

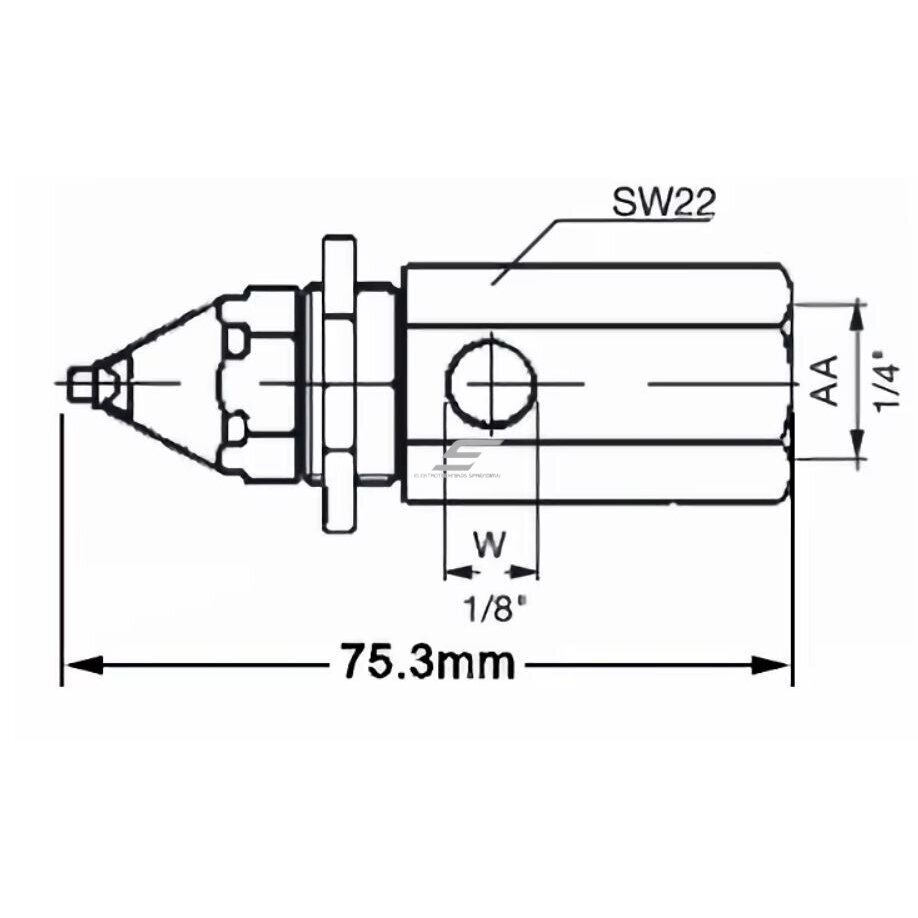

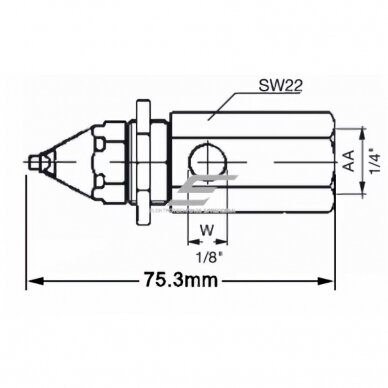

Connection: 6 mm
Air pressure: ~5,2 bar
Water pressure: ~1,5 bar
Air consumption: ~115 l/min
Water consumption: ~7,1 l/h
Air filtration: < 40 µm
Water filtration: < 50 µm
Operating principle: Mixing of compressed air and water (without high pressure)
Construction: Resistant to wear and corrosion
Main functions and technological advantages

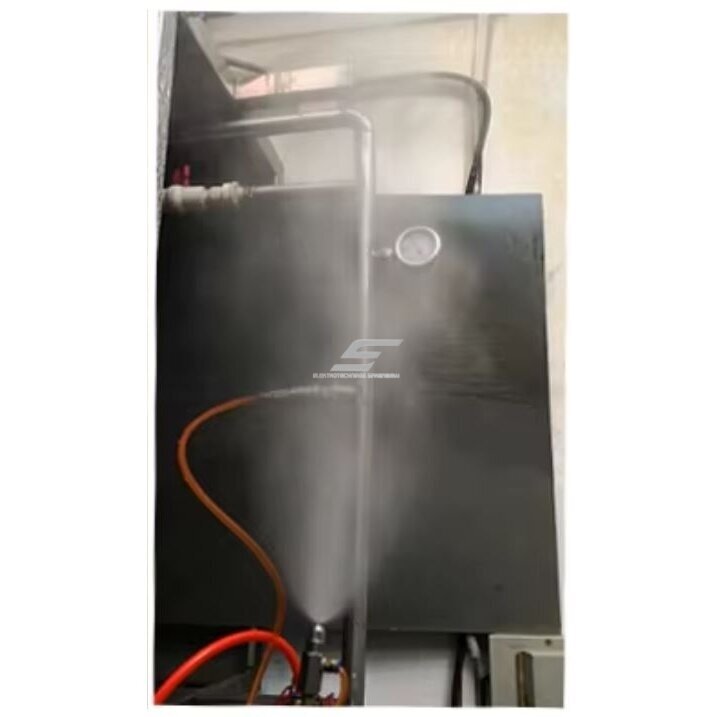

Effective dust suppression: The ultrasonic nozzle creates an extremely fine fog that: Binds with airborne dust particles; Increases their weight; Quickly settles dust from the air. Ideal for control of coal, cement, grain, mineral, metal dust.
Long service life: No high water pressure required. Minimal mechanical wear. Longer operating lifetime.
Usage

For household users: Not suitable for household use. Can be used in workshops or garages for dust control (with a suitable system).
For electricians / installers: Easy integration into automatic dust suppression systems.
For engineers / industrial specialists: A solution for industrial environments where employee safety and air quality are important.
Industry: Dust suppression in coal mines (discharge chutes, conveyors); Humidification and cooling of production halls and warehouses; Cooling of objects and equipment; Food industry; Wool, textile humidification; Air disinfection and sterilization.
Pros

Extremely fine fog
Highly effective dust suppression
Low water and pressure requirement
Long service life
Minimal wear
Wide industrial application
Cons

Compressed air source required
Good water and air filtration required
