Warning Flashing LED Beacon | Integrated Solar Panel | Red | 3.7VDC | 1000mA | 170x160x90mm | Clamp Mount | IP65

Solar-powered red LED warning beacon – IP65, with spring clamp, up to 9 days of operation

Solar-powered LED warning beacon is intended for temporary or permanent marking of hazardous areas, structures, equipment and obstacles. The bright flashing red signal helps attract attention in high-voltage line areas, road maintenance zones, tower cranes, vessels, navigation channels and near other technical equipment.

The beacon has an integrated solar module and a rechargeable 3.7 V, 1000 mAh battery. During the day, the solar module charges the battery, and the stored energy is used to generate the red LED light signal. The specified flashing rate is approximately 75 flashes per minute.

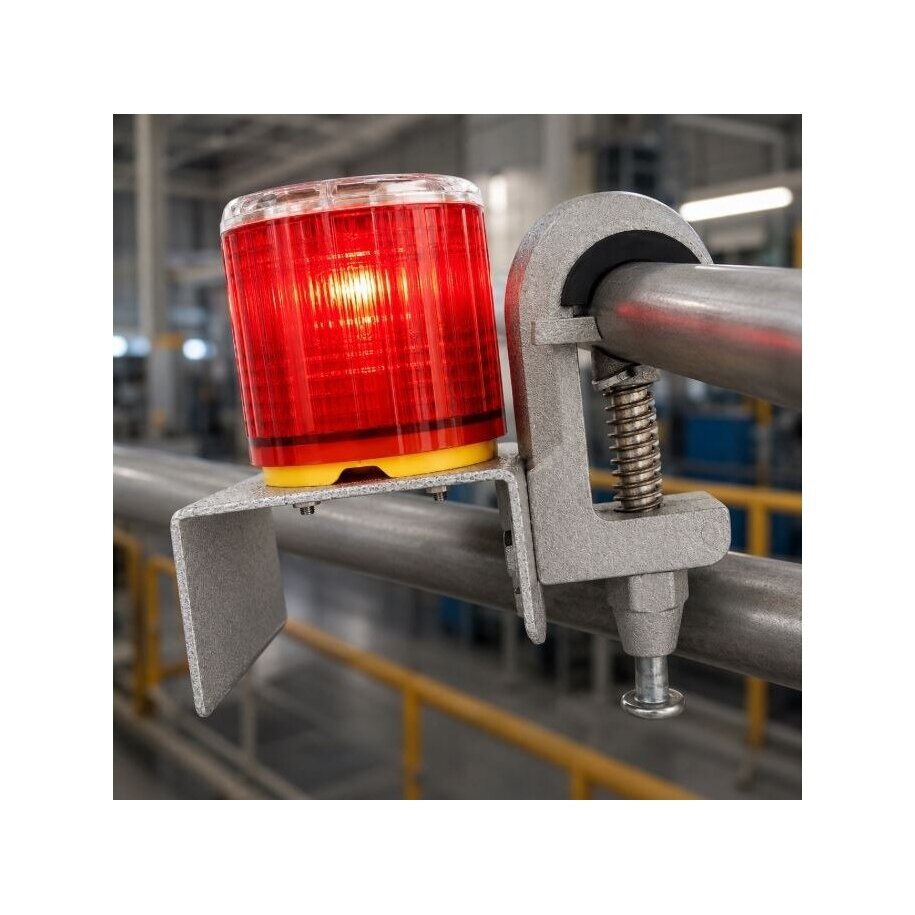

The beacon is secured with a metal spring clamp that can be quickly attached to a suitable pipe, rod, profile or edge of a structure. The compact design does not require a separate electrical cable, making the product convenient for locations without a permanent power supply.

• Red flashing LED signal.
• Autonomous solar power supply.
• Integrated 3.7 V, 1000 mAh battery.
• 0.4 W rated power.
• Approximately 75 flashes per minute.
• Visibility distance of more than 500 m.
• Up to 9 days of operation when fully charged.
• Up to 1000 battery charging cycles.
• IP65 protection against dust and water jets.
• Quick mounting with a spring clamp.
• Reinforced steel bracket construction.
• Electrostatic powder coating on metal parts.
• Compact dimensions of 170 × 160 × 90 mm.
• No permanent wired power supply required.

1. Select the installation location. The beacon must be clearly visible and the solar module must remain unobstructed.
2. Check the mounting surface. The pipe, profile or other structure must be strong and undamaged.
3. Remove the protective film from the solar module.
4. Open the spring clamp. Pull the upper part far enough to place it over the structure.
5. Place the clamp on the pipe or profile. Make sure it rests against the full intended mounting surface.
6. Release the spring slowly. Check that the clamp is firmly secured.
7. Point the solar module toward open sky. Avoid permanent shade.
8. Check the stability of the beacon. It must not rotate freely, slide or vibrate.
9. Use an additional safety cable if necessary.
10. Allow the battery to charge. Before assessing the maximum operating time, it is recommended to leave the product in sufficient sunlight.

• Remove the protective film from the solar module before use.
• Install the product where the solar module will receive sufficient daylight.
• Check that the spring clamp is fully secured.
• Use additional fall protection in vibrating locations or when installing at height.
• Do not mount on a deformed, very slippery or incorrectly sized pipe.
• Protect the transparent cover and solar module from mechanical impacts.
• Do not use the product underwater or wash it with a high-pressure jet.
• Do not spray paint or other coatings onto the solar module or light cover.
• In regulated safety systems, verify that the product has the required approvals.
• If the housing, seals or clamp are damaged, the product should not be used until its condition has been assessed.

• Clean the solar module regularly with a soft damp cloth.
• Remove dust, leaves, dirt, snow and other debris.
• Check the condition of the transparent cover and inspect it for cracks.
• Check the spring, clamp and mounting surface.
• Monitor the steel bracket for signs of corrosion.
• Protect damaged areas of the paint coating against further corrosion.
• If operating time has decreased significantly, check the cleanliness of the solar module and the condition of the battery.
• Store the product in a dry place when not used for an extended period and charge it periodically in sunlight.

Autonomous solar-powered LED warning beacon

The red flashing LED beacon is intended for visually marking technical structures, obstacles and hazardous workplaces. It can be used near high-voltage lines, tower cranes, road maintenance areas, vessels, agricultural machinery and in other applications.

The integrated solar module charges the 3.7 V, 1000 mAh battery, so the beacon does not require a permanent electrical cable. The flashing rate is approximately 75 times per minute, the rated power is 0.4 W, and the visibility distance is more than 500 m.

A fully charged product can operate for up to 9 days, while the specified battery service life is up to 1000 charging cycles. The IP65 enclosure is suitable for outdoor use, but the beacon is not intended for immersion in water.

The reinforced steel spring clamp allows the beacon to be attached quickly to a pipe, profile or other structure. When installing at height or on vibrating equipment, additional fall protection is recommended.
