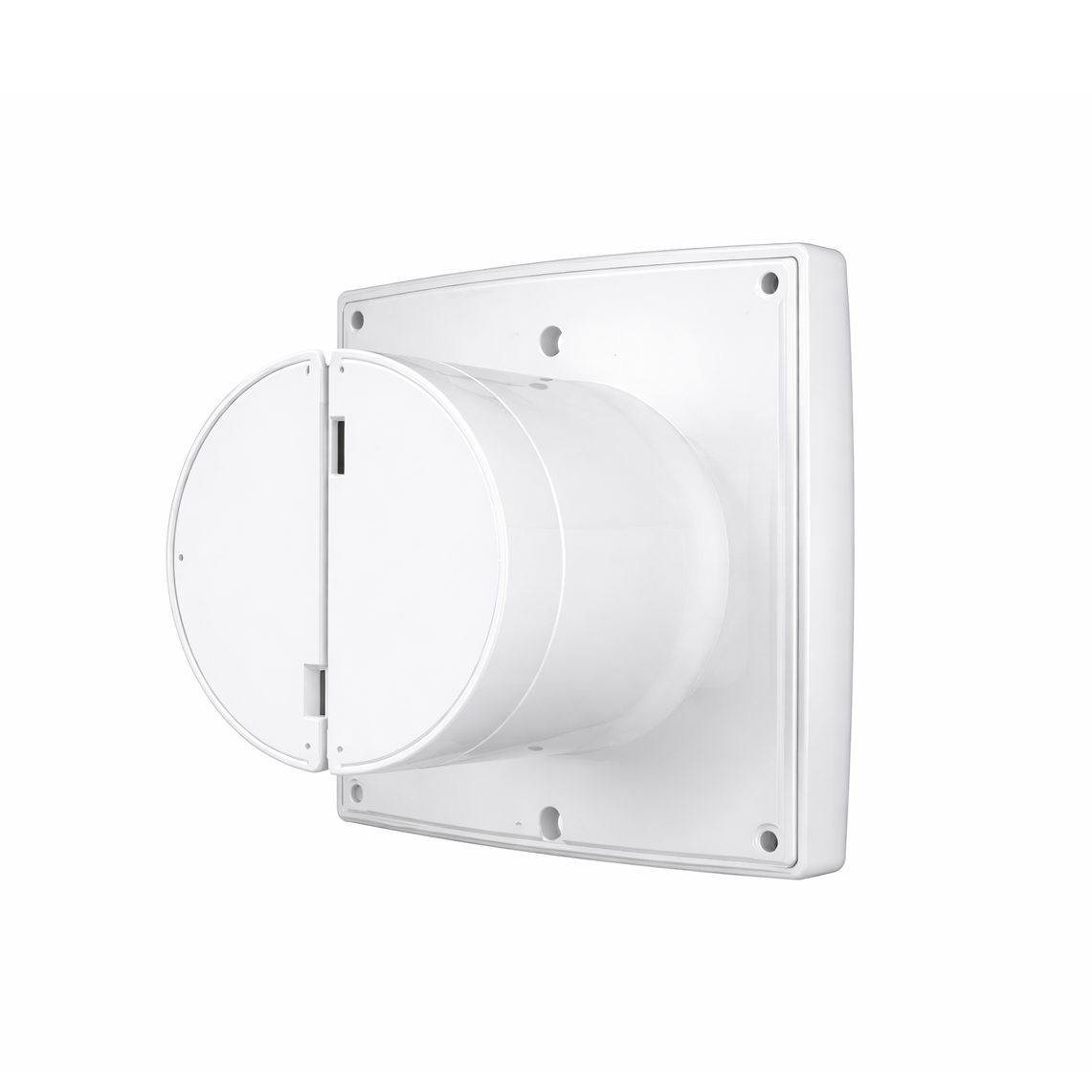

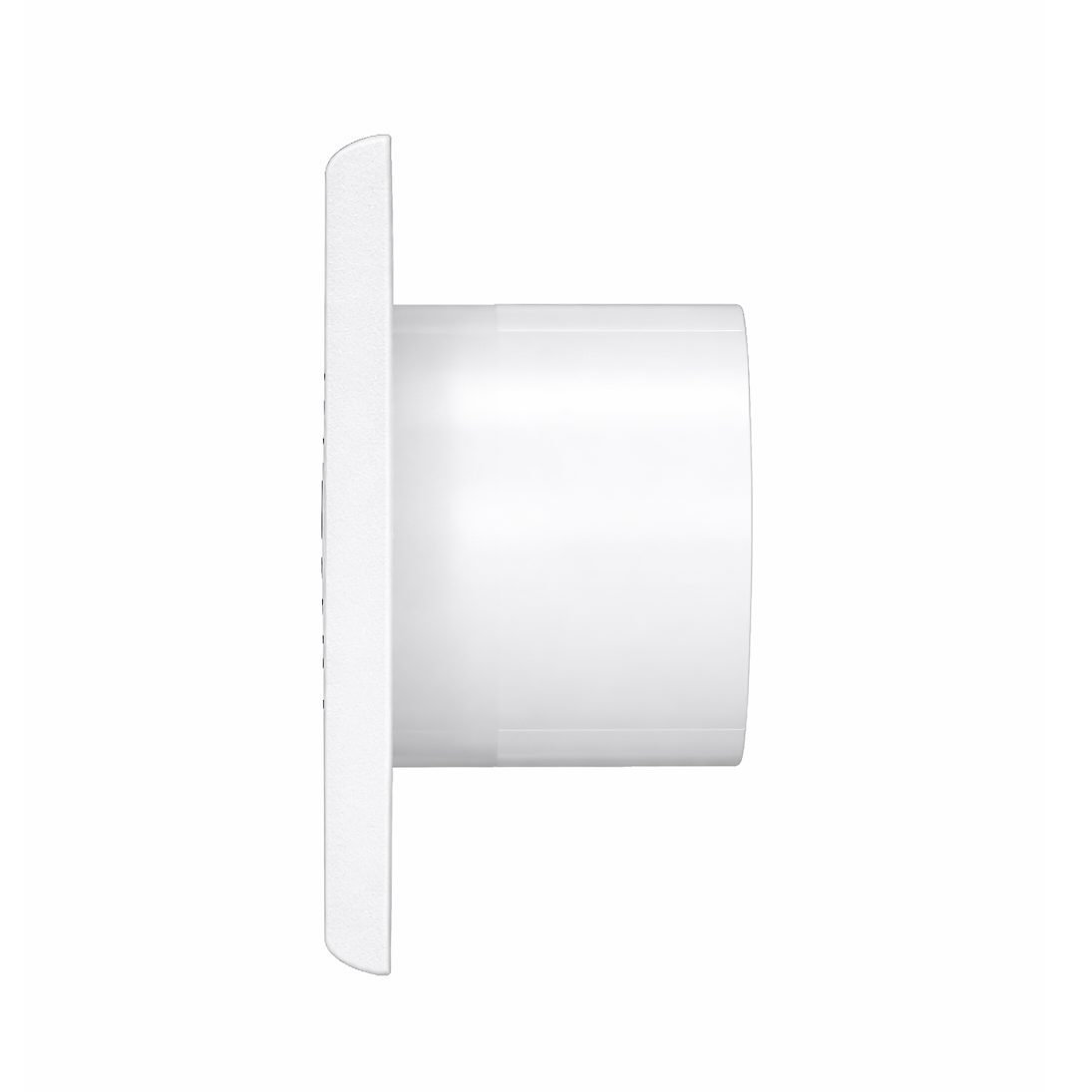

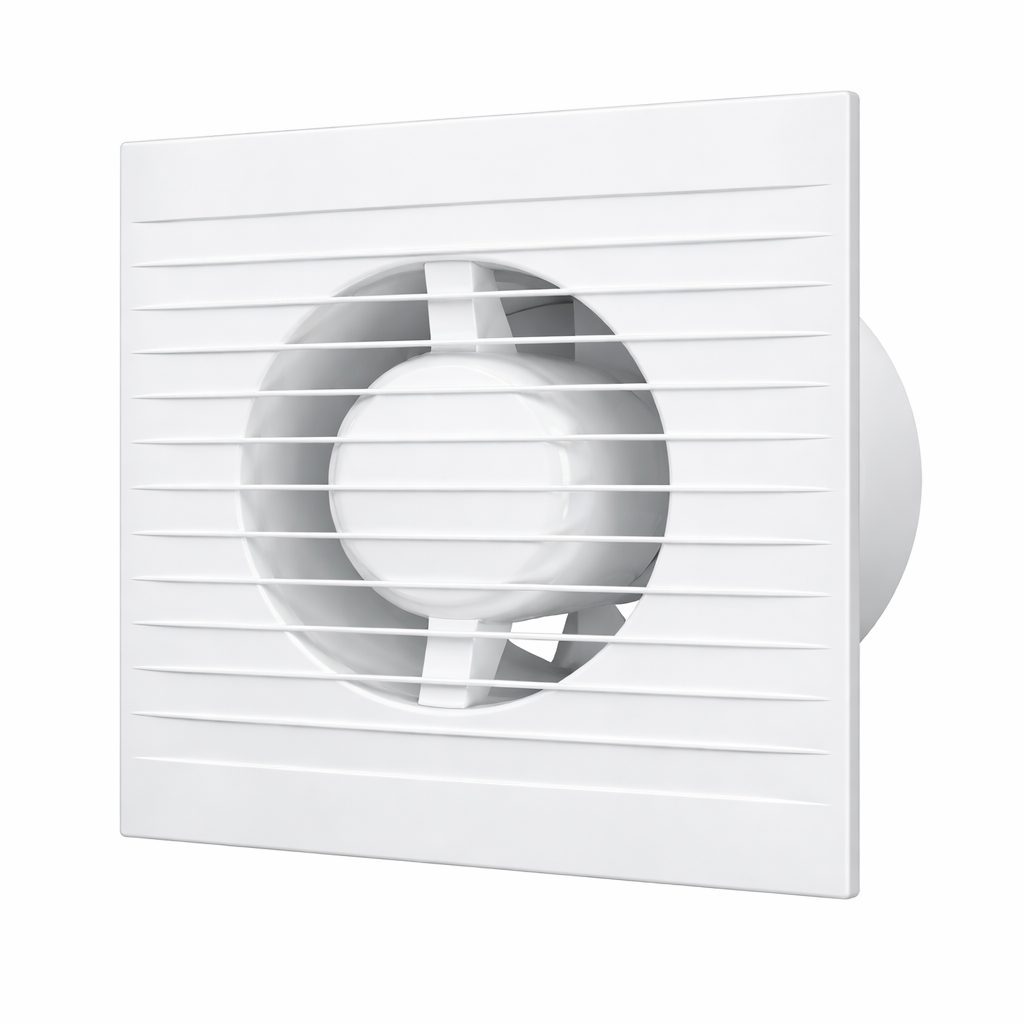

Axial exhaust fan | D100 | 90 m³/h | 220V | 160x140x76 mm | plastic | white | IPX4
Code: ESLP22727Price 8.32 € VAT incl.( 6.88 € VAT excl. )Axial exhaust fan, Ø100 mm: 90 m³/h, 35 dB(A), 14 W, IPX4, 160×140×76 mm. Designed for bathrooms, toilets and utility rooms when a simple fan with a slim front panel is needed.
-
Axial exhaust fan | D100 | 90 m³/h | 220V | 160x140x76 mm | plastic | white | IPX4

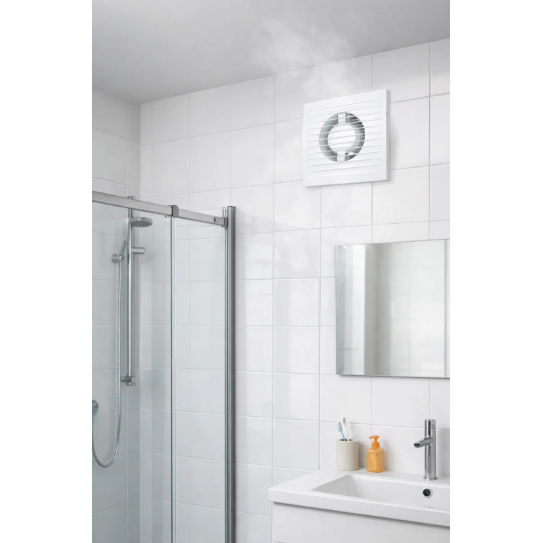

Axial exhaust fan for a Ø100 mm duct – a simple solution for removing moisture and odours from a bathroom, toilet, kitchen or storeroom, controlled by an external switch. The ultra-thin 9 mm front panel allows the fan to be mounted almost flush with the wall or tiles.
Key point:
This is the basic version of the series: the fan extracts air while it is switched on by an external switch, for example together with the room lighting. Rated capacity is 90 m³/h, noise level 35 dB(A), power 14 W. If you need a damper, pull cord or timer, choose another version of the same series.Mounting diameter
Ø100 mmCapacity
90 m³/hNoise
35 dB(A)Power
14 WHow it works
The fan is inserted into a Ø100 mm duct or opening in a wall or ceiling; the 9 mm front panel stays almost flush with the finish. Supply is 220–240 V / 50 Hz. It is switched on by an external switch.
When switched on, the impeller extracts air into the ventilation duct – up to 90 m³/h in free-air conditions, static pressure 39 Pa.
The result is a room that dries faster and a lower risk of condensation and mould.
Why choose ESLP22727?
The simplest version of the series with the same slim panel and the same capacity – suitable when the fan is wired together with the lighting or a separate switch and no extra functions are needed.Technical specifications
Product type Axial exhaust fan Product code ESLP22727 Mounting (duct) diameter Ø100 mm Supply voltage 220–240 V / 50 Hz Power 14 W Current consumption 0.06 A Air flow (capacity) 90 m³/h Static pressure 39 Pa Noise level 35 dB(A) Dimensions 160×140×76 mm Protection rating IPX4 Control external switch Front panel 9 mm thick (ultra slim) Housing plastic, white Mounting wall or ceiling Main functions
- Basic version – controlled by an external switch, for example together with the room lighting.
- 9 mm front panel – the fan can be mounted almost flush with the wall or tiles.
- 90 m³/h capacity – rated air flow for air exchange in a small or medium-sized room.
- 35 dB(A) noise level – as stated in the supplier specification, suitable for domestic rooms.
- IPX4 housing – protected against water splashes from any direction.
- Versatile mounting – in a wall or ceiling.
How the models in this series differ
- ESLP22727 · basic – basic version, controlled by an external switch – this model
- ESLP22728 · with backdraft damper – automatic backdraft damper
- ESLP22729 · with pull-cord switch – pull-cord switch on the housing
- ESLP22730 · with cable and plug – power cable with plug
- ESLP22731 · with timer – timer – runs for a set time after switching off
- Series sizes – D100 – 90 m³/h, 14 W, 35 dB(A), 160×140×76 mm · D125 – 140 m³/h, 16 W, 36 dB(A), 180×160×82 mm · D150 – 250 m³/h, 16 W, 38 dB(A), 205×187×86 mm
Where is it used?
- Bathrooms and showers
- Toilets
- Kitchens and utility rooms
- Storerooms and walk-in wardrobes
- Basements and service rooms
- Laundry rooms
- Small sanitary rooms in offices
Use by need
For apartment owners.
Replaces an old fan that is wired together with the bathroom lighting – no extra functions needed.For electricians.
Standard Ø100 mm duct and simple connection – quick installation.For designers.
The uniform look of the series allows basic and function models to be combined in one project.Practical use
If a bathroom measures 2.0 × 2.5 m with a 2.5 m ceiling (about 12.5 m³), the rated flow of 90 m³/h would theoretically change the air about 7 times per hour. In practice the flow will be lower due to duct length, bends and grilles, so for a long or winding duct a higher-capacity model is worth choosing.Pros
- Simple version without extra functions
- Same look as the other models of the series
- Ultra-thin 9 mm front panel
- Wall or ceiling mounting
- IPX4 protection
- Power – 14 W
Cons / limitations
- No backdraft damper – if you need one, choose ESLP22728
- No timer or humidity sensor – controlled only by an external switch
- The rated 90 m³/h flow is given without duct resistance; in a long duct it is lower
- No heat recovery – room air is exhausted
Safety and installation notes
- Disconnect the power before installation and make sure the circuit is de-energised.
- Protect the bathroom circuit with a 30 mA residual current device (RCD).
- IPX4 means splash protection, not immersion: do not install in zone 0 and follow the zone requirements of HD 60364-7-701.
- Mains installation must be carried out by a qualified electrician.
Quick selection guide
Ø100 mm90 m³/h35 dB(A)14 WIPX4Ultra slim 9 mmSuitable when you need:- To replace a simple bathroom or toilet fan
- A fan wired together with the lighting or a separate switch
- A slim front panel almost flush with the wall
Check before use:- Whether the duct or opening diameter is Ø100 mm
- Whether there is room for the 160×140×76 mm housing
- Whether a 220–240 V supply is available at the opening
- Whether the room has an air inlet path (gap under the door or a grille)
Important reminder: The fan does not replace continuous mechanical ventilation or a heat recovery unit – it extracts air only while running.FAQ
Does it have a backdraft damper or timer?
No, this is the basic version; the backdraft damper is in model ESLP22728.What duct diameter does ESLP22727 fit?
A Ø100 mm duct or opening.Can it be mounted in the ceiling?
Yes, the fan can be mounted in a wall or ceiling.How is it switched on?
By an external switch, for example together with the room lighting.What is special about the front panel?
It is only 9 mm thick, so the fan looks almost flush with the wall or tiles.Is it suitable for a bathroom?
Yes, the housing is IPX4, but install it outside zone 0 and protect the circuit with a 30 mA RCD.Axial exhaust fan | D100 | 90 m³/h | 220V | 160x140x76 mm | plastic | white | IPX4
ESLP22727 – axial exhaust fan Ø100 mm: 90 m³/h, 35 dB(A), 14 W, IPX4. Designed for bathrooms, toilets and utility rooms when a simple fan with a slim front panel is needed.
Published: 2026-11-13 · Data verified against the supplier specification: 2026-11-13
Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
