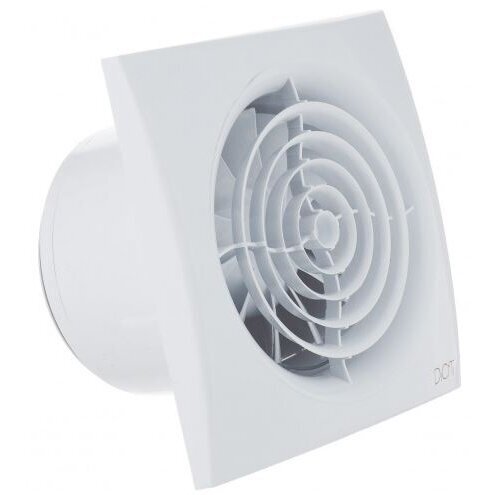

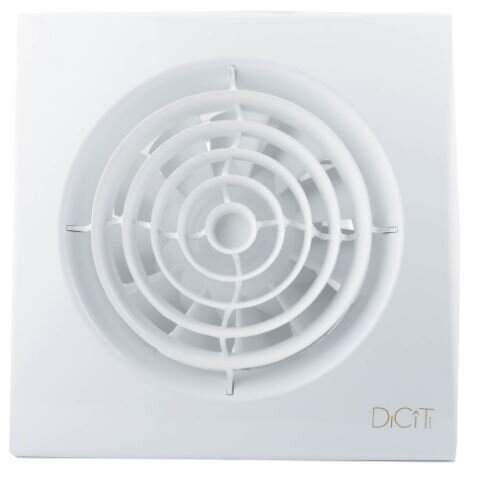

Fan with backdraft damper | D100 | 230V | with controller | 155x155x101mm | plastic | white

Technical Specifications
Model: Axial ventilation unit with backdraft damper and controller
Performance: 90 m³/h
Noise Level: 25 dB(A)
Pressure: 48 Pa
Installation Diameter: Ø100 mm
External Housing Size: 155 × 155 × 101 mm
Installation: Wall-mounted, with screws (included)
Material: High-quality ABS plastic
Color: White
Weight: 0.5 kg
Voltage: 230 V AC
Power Consumption: 8.4 W
Motor: Maintenance-free ball-bearing
Operating Principle: Axial
Ventilation Mode: Extraction
Control: Mechanical with 6‑speed controller (MR)
Protection Rating: IP24
Warranty: 5 years

Features & Characteristics

6-speed mechanical controller (MR): enables precise mode selection

Plastic backdraft damper: prevents unpleasant odors and reverse airflow from the ventilation duct

LED indicator: blue LED lights up during operation—clear and convenient

Low noise level: only 25 dB(A)—won’t disturb day or night

Ball-bearing motor: allows mounting in any position and prolongs service life

Overheat protection: ensures safe and durable operation

Low energy consumption: ideal for energy-efficient homes

Easy installation: all necessary parts included—quick and convenient

Applications
Bathrooms, showers, toilets, kitchens, utility rooms, storage rooms

Pros

Ultra-quiet operation—suitable even for bedrooms

Low energy consumption (just 8.4 W)

6‑speed controller—for flexible use

Backdraft damper—protects against odors

Durable, maintenance-free motor

LED operation indicator

Easy installation and compact design

5‑year warranty—reliable and worry-free

Cons

Plastic backdraft damper may be less airtight than metal under strong reverse pressure

Not suitable for very high-humidity spaces or long ducts requiring higher pressure
