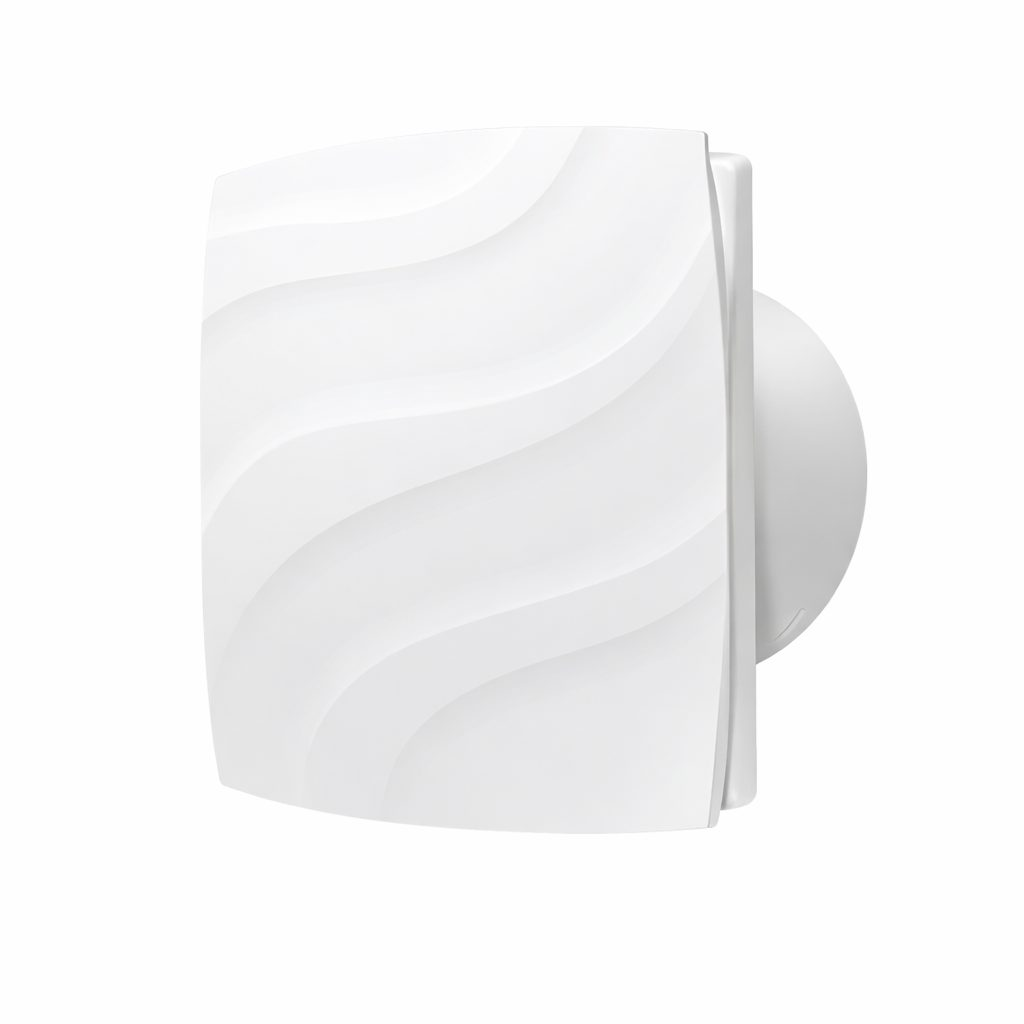

Axial exhaust fan with backdraft damper and timer | D100 | 220V | 151x110x70mm | plastic | white color | IP24

Technical specifications

Fan type: axial exhaust fan
Duct diameter: Ø100 mm
Airflow: 95 m³/h
Dimensions: 151 x 110 x 70 mm
Power: 14 W
Current consumption: 0.06 A
Static pressure: 30 Pa
Noise level: 25 dB(A)
Power supply: 220–240 V / 50 Hz
Protection class: IP24
Color: white
Functions: backdraft damper and timer
Housing material: ABS plastic
Installation: wall or ceiling

Functions

Timer – the fan continues to operate for a set time after switch-off (e.g., 2–30 min.), ensuring full ventilation even after the light is turned off
Backdraft damper – the integrated damper automatically closes when the fan is not operating, preventing odors or cold air from entering the room
Removable front panel – allows easy cleaning and maintenance without complex disassembly
Unique design – enables the use of a solid decorative panel without restricting airflow and maintaining high ventilation efficiency
Efficient air extraction – effectively removes moisture and odors
Easy installation – integrated mounting legs allow quick and stable installation
Universal application – suitable for installation in ventilation shafts or connection to duct systems
Quiet operation – ensures comfortable use in residential areas

Application

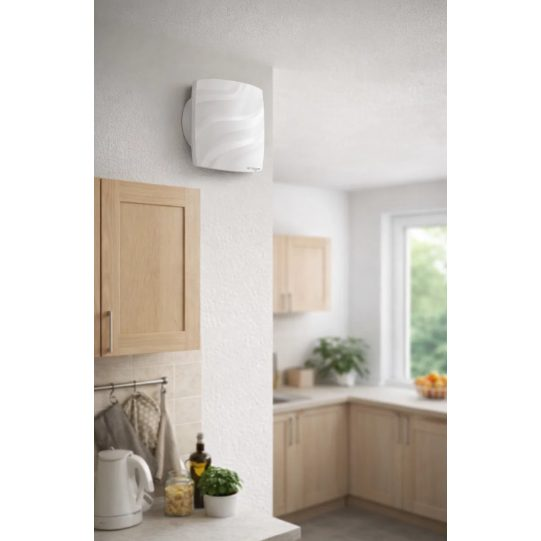

For household users: Ideal for bathrooms, toilets, kitchens, storage rooms, basements. Especially suitable where aesthetics and integration into the wall surface are important.
For electricians: Standard duct size, easy connection to 230 V network, integrated mounting legs, suitable for shaft or duct installation
For engineers and designers: Suitable for renovation projects, limited installation depth applications, ventilation of residential and commercial premises, sanitary rooms with complex finishing

Advantages

integrated backdraft damper and timer
easily removable front panel
modern and aesthetic design
solid panel does not restrict airflow
quiet operation
easy installation with mounting legs
suitable for ducts and shafts
compact size

Disadvantages

no humidity sensor
IP24 – limited protection for very humid environments
standard airflow – not suitable for large rooms
