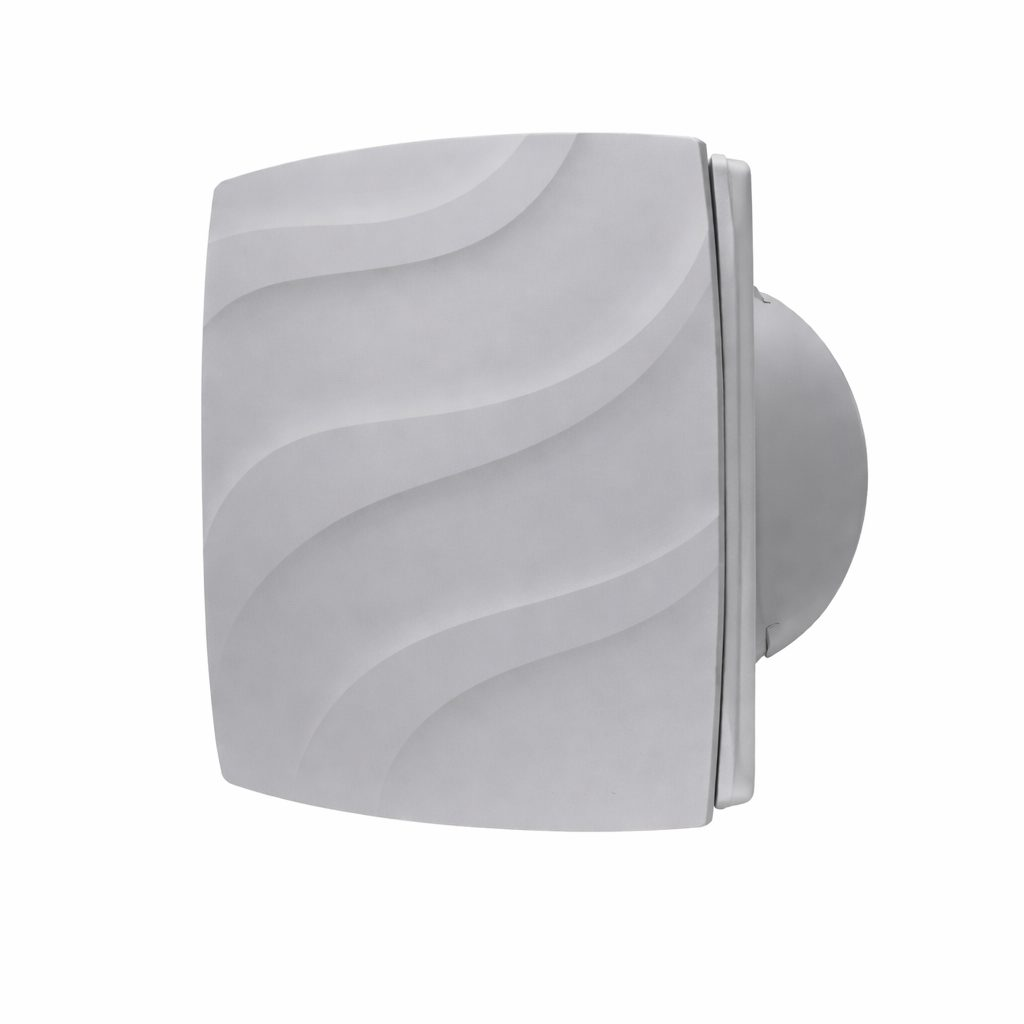

Axial extractor fan with backdraft shutter | D120 | 140 m³/h | 230V | 181x130x69mm | IP24 | ABS plastic | grey
Code: ESLP22481Price 15.28 € VAT incl.( 12.63 € VAT excl. )Axial exhaust fan designed for efficient and convenient room ventilation. This model stands out with a unique design featuring a solid front panel, which not only provides an aesthetic appearance but also ensures effective airflow. The fan has an integrated backdraft damper that prevents cold air, odors, and dust from entering the room when the fan is not operating. Thanks to the easily removable front panel, the device is extremely convenient for maintenance and cleaning.
-
Axial extractor fan with backdraft shutter | D120 | 140 m³/h | 230V | 181x130x69mm | IP24 | ABS plastic | grey

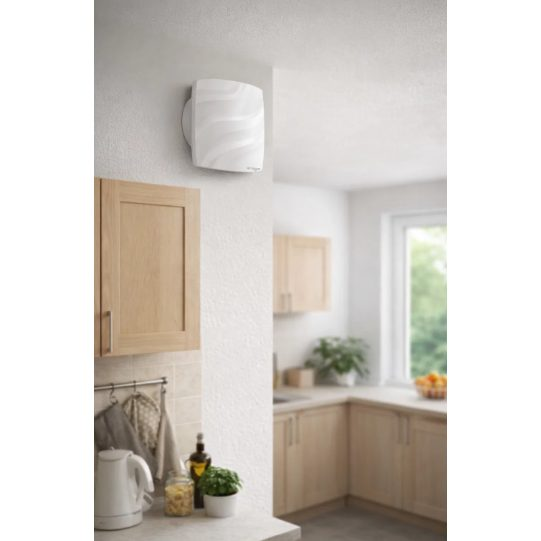

The axial extractor fan with backdraft shutter removes stale air from bathrooms, toilets, kitchens and storage rooms. It is mounted in a wall or ceiling into a Ø120 mm duct or opening and removes moisture and odours; the backdraft shutter prevents air from flowing back.
v=>[(v.q?v.q+' m³/h airflow':'')+(v.db?(v.q?', ':'')+v.db+' dB(A) noise':'')+(v.pw?' and '+v.pw+' W power':'')+(v.q||v.db?' – a practical choice for a domestic room.':''),v.f.H?'The humidity sensor switches the fan on when humidity rises after a shower and off once the room is dry – no need to think about the switch.':v.f.T?'The timer keeps the fan running for a while after the light is switched off, so moisture and odours are fully removed.':v.f.C?'The pull-cord switch removes the need for a separate wall switch – convenient in renovations.':'It is usually connected to the light switch: the fan runs while the light is on.',v.f.V?'The backdraft shutter keeps cold air, odours and dust from the duct out when the fan is off.':''].filter(Boolean).join(' ')
140 m³/h airflow, 30 dB(A) noise and 16 W power – a practical choice for a domestic room. It is usually connected to the light switch: the fan runs while the light is on. The backdraft shutter keeps cold air, odours and dust from the duct out when the fan is off.Duct diameter
Ø120 mmAirflow
140 m³/hNoise level
30 dB(A)Control
wall switchHow it works
An axial impeller driven by a 230 V motor extracts air from the room into a duct or ventilation shaft, while fresh air enters through the door gap or supply air vents. When the fan is switched off, the backdraft shutter closes and stops reverse airflow.
Why choose Axial extractor fan with backdraft shutter?
A quiet, energy-saving solution for a standard Ø120 mm opening.Technical specifications
Product type Axial extractor fan with backdraft shutter Product code ESLP22481 Duct (mounting) diameter 120 mm Dimensions (H × W × D) 181 × 130 × 69 mm Supply voltage 230 V AC Power 16 W Airflow 140 m³/h Pressure 32 Pa Noise level 30 dB(A) Ingress protection IP24 – protected against splashing water Backdraft shutter Yes Control External switch (e.g. light switch) Housing material ABS plastic Colour Grey Key features
- Airflow 140 m³/h – sufficient for a bathroom, toilet or storage room
- 30 dB(A) – quiet operation that does not disturb adjacent rooms
- 16 W power – low energy consumption
- IP24 – protection against splashing water in damp rooms
- Backdraft shutter – keeps cold air, odours and dust from the duct out when off
Where is it used?
- Bathrooms
- Toilets
- Kitchens (general ventilation, not instead of a cooker hood)
- Laundry and drying rooms
- Storage rooms, basements
- Changing rooms, small offices
Pros
- Quiet operation – 30 dB(A)
- Low power – 16 W
- IP24 protection for damp rooms
- Standard Ø120 mm opening
- Backdraft shutter in the housing
Cons / limitations
- No timer or humidity sensor – for that, choose fans with a timer or humidity sensor
- IP24 – do not install where a direct water jet can reach
Safety and installation notes
- Install only with the power disconnected; connection must be made by a qualified electrician
- In bathrooms, follow the zone requirements of HD 60364-7-701
- Duct diameter is 120 mm; do not reduce the cross-section and avoid long ducts with many bends
- Ensure a fresh-air inlet into the room (door gap or supply air vent)
FAQ
Which duct does it fit?
A Ø120 mm duct or opening in a wall or ceiling.How is the fan controlled?
With an external switch, usually together with the light.Does it have a backdraft shutter?
Yes, the shutter is built into the housing and closes when the fan stops.Is it suitable for a bathroom with a shower?
Yes, IP24 protects against splashes; install outside the reach of a direct water jet and follow the zone requirements.Axial extractor fan with backdraft shutter | D120 | 140 m³/h | 230V | 181x130x69mm | IP24 | ABS plastic | grey
Axial extractor fan with backdraft shutter Ø120 mm: 140 m³/h, 30 dB(A), IP24 – for bathrooms, toilets and kitchens.
Published: 2026-11-17 · Data according to supplier specification
Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
