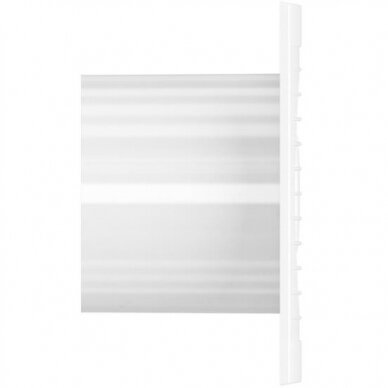

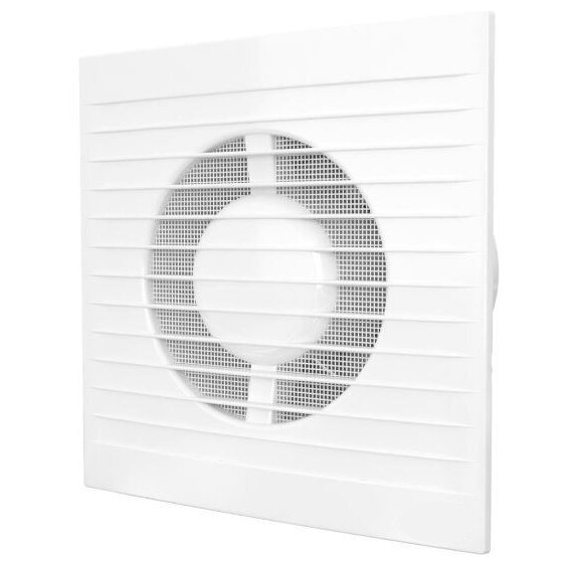

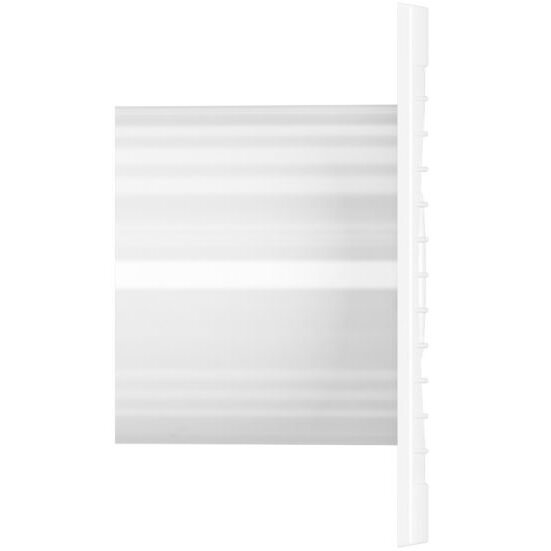

Fan with backdraft damper | D100 | with controller | 160x160x92mm | plastic | white

Technical Specifications

Type: Axial domestic fan with automatic control

Diameter: Ø100 mm (for installation)

Dimensions (W×H×D): 160 × 160 × 92 mm

Material: High-quality ABS plastic

Color: White

Weight: 0.5 kg

Airflow capacity: 90 m³/h

Noise level: 35 dB(A)

Pressure: 39 Pa

Power consumption: 14 W

Voltage: 220 V

Protection class: IP24 (protection against water splashes)

Warranty: 5 years

Features and Smart Control

MRe controller: Integrated timer and photo sensor. The fan turns on automatically when light is detected and continues running for a set time after the light is turned off.

Cyclic operation: Even in darkness, the fan activates once per hour at full power according to the timer settings.

Backdraft valve: A plastic damper prevents odors and dust from returning through the duct.

Overheating protection: The device shuts off automatically when overheated.

Insect screen: Prevents insects from entering from outside or through the duct.

Applications

Bathroom – prevents mold and moisture

Kitchen – removes moisture and steam

Utility and technical rooms – ensures air circulation

Pros

Smart control: no need for a switch – activates via light or timer

Backdraft valve: blocks odor return

Quiet operation: only 35 dB – nearly silent even at night

Compact size: suitable even for small spaces

High reliability: 5-year warranty and overheating protection

Easy installation: screw-mounted on the wall

Cons

Wall mounting only – not suitable for ceiling installation

Extraction only – does not provide air supply or heat recovery
