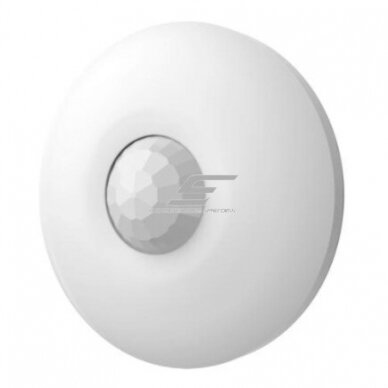

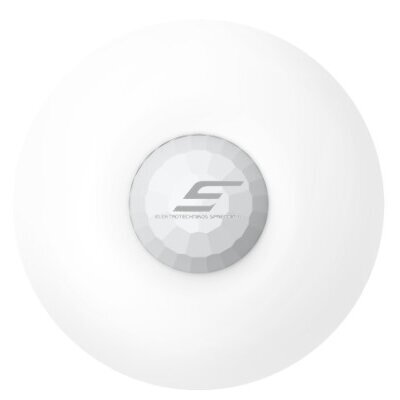

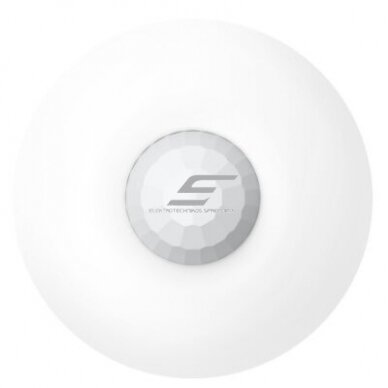

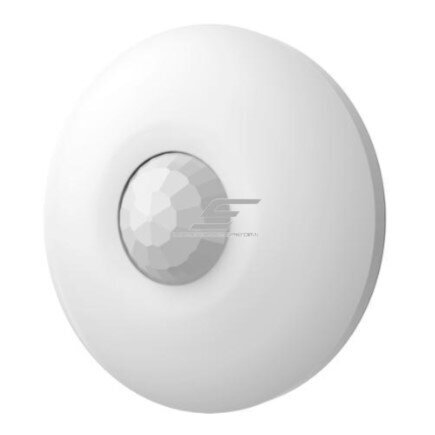

Belaidis judesio jutiklis | daviklis | PIR | virštinkinis | 12m | 360° | baltas | Hikvision DS-PDCL12-EG2-WE AX PRO

Technical Data:
Detection Parameters:

Detection Method: Passive Infrared (PIR)
Sensor Model: SBG4L46-711
Detection Range: 12 m
Detection Angle: 360°
Number of Detection Zones: 172
Motion Speed: 0.3–2 m/s
White Light Filter: Up to 6500 lux
Temperature Compensation: Automatic
Transmission Parameters:

Technology: Tri-X Wireless
Transmission Frequency: 868 MHz
Security: AES-128 Encryption
Transmission Distance: Up to 1.6 km in open space
Enrollment Methods: Power-on, Remote ID, or QR Code
Electrical Characteristics:

Power Supply: Battery (CR123A × 1)
Battery Life: Up to 5 years (standby mode)
Typical Voltage: 3V
General Features:

Operating Temperature: -10°C to 55°C
Storage Temperature: -20°C to 60°C
Operating Humidity: 10% to 90%
Dimensions: φ101.2 mm x 32.9 mm
Weight: 109.5 g
Installation Height: 2.4 m to 4 m
Installation Method: Ceiling-mounted
Usage: Indoor
Applications:

Home Security: Detects motion indoors, triggers alarms, or sends notifications to the app.
Commercial Spaces: Used in offices, warehouses, or stores for premises protection.
Automation: Can be integrated with smart systems to activate lights or other devices upon motion detection.
Pros:

Reliable Detection: 360° angle and high sensitivity monitor large areas.
Wireless Design: Easy installation without additional wiring.
Smart Features: Remote control via app.
Security: AES-128 encryption ensures data protection.
Long-lasting Battery: Up to 5 years of operation reduces maintenance needs.
Cons:

Indoor Limitation: Suitable for indoor use only.
Installation Height: Ceiling installation may be challenging in high-ceiling areas.
Battery Replacement: Despite long life, battery replacement can be inconvenient in some cases.
This wireless PIR ceiling detector is a versatile and reliable solution for indoor security and automation. Its advanced features, wide detection range, and easy installation make it suitable for various scenarios, ensuring the highest level of protection.
