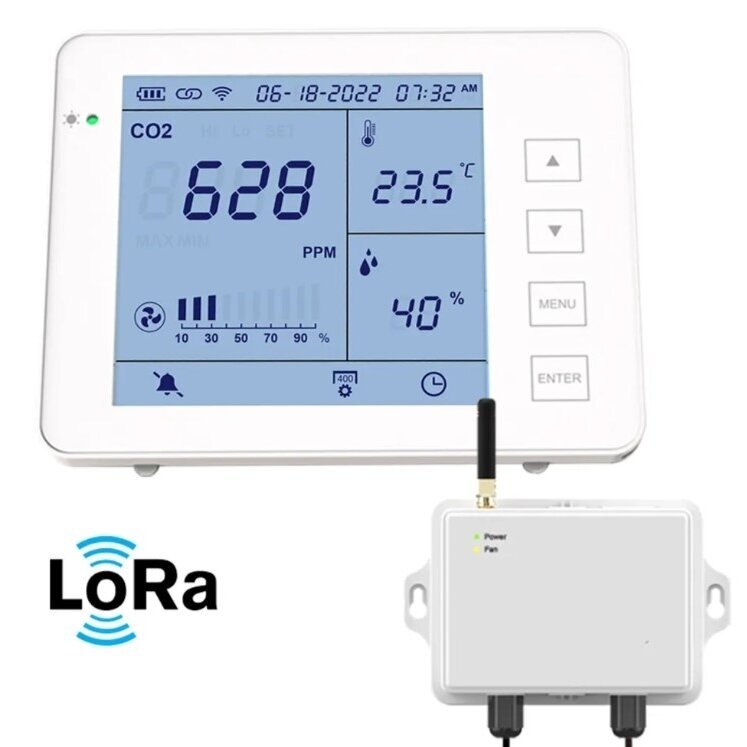

CO2 controller | sensor for ventilation system | 0-5000PPM | 24V | white | LoRa

Technical Data:

Material: ABS plastic

Color: White

Power Supply: 24V

Display: LCD screen

CO2:

Measurement Range: 0-5000 ppm
0-5000 ppm: 1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
Sensor Lifespan: 10-15 years, two-channel CO2 sensor
Accuracy: 0-3000 ppm: ±50 ppm or ±5% of the digital reading; 3000 ppm: ±7% of the digital reading
Repeatability: 10 ppm at 400 ppm
Temperature Compensation: ±0.1% of reading per °C ±2 ppm per °C, compared to 25°C
Response Time: <2 minutes 63% step change or <4.6 minutes 90% step change
Warm-up Time: <30 seconds
Temperature:

Operating Temperature: 0°C - 50°C
Accuracy: ±1°C
Display Resolution: 0.1°C
Response Time: <20 minutes (63%)
Humidity:

Measurement Range: 5-95%
Accuracy: ±5%
Display Resolution: 1% on main reading, 1% max/min reading
Controller Unit:

Operating Voltage: 24V
Output Voltage: 0-10V
Additional Data:

Data Storage Capacity: 2GB
Operating Temperature: 0°C - 50°C
Storage Temperature: -20°C - 60°C
Operating and Storage Relative Humidity: 0-95% (non-condensing)
Usage:

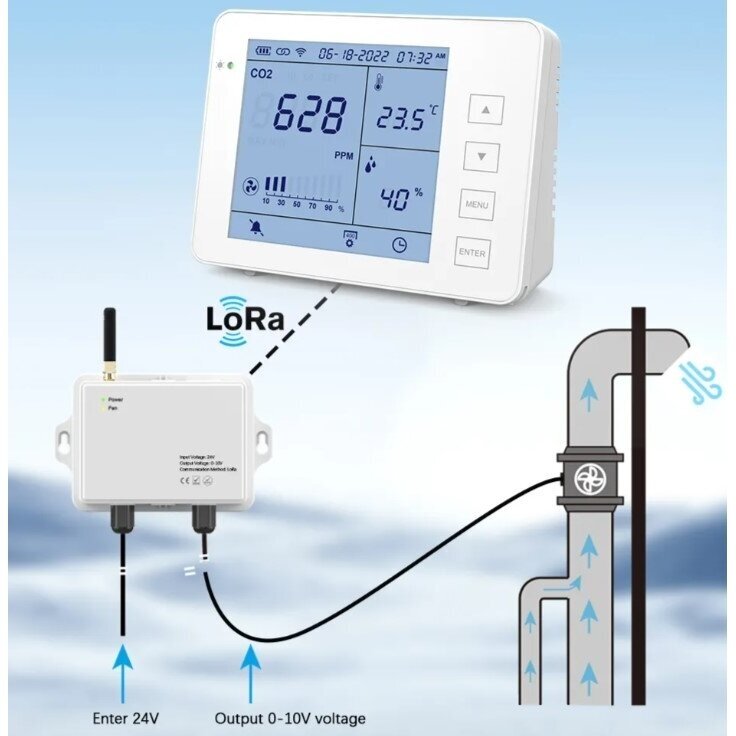

The CO2 controller is an ideal choice for places where indoor air quality needs to be monitored and controlled. It's a great device for continuous or periodic ventilation control in residential, commercial, or industrial spaces such as bathrooms, kitchens, gyms, offices, schools, or hotels. It can not only monitor CO2 levels, temperature, and humidity but also automatically adjust ventilation to ensure the appropriate air quality level.
Pros:

High precision and reliability: This device ensures high measurement accuracy for CO2, temperature, and humidity parameters.
Long lifespan: The sensor's lifespan is 10-15 years, reducing the need for frequent maintenance.
Fast response and warm-up: Fast response to CO2 changes and quick warm-up for immediate ventilation adjustments.
LoRa technology: Long-range data transmission allows monitoring in large spaces.
Convenient LCD display and light indication: Easily visible data on the screen and indicator showing that the device is working.
Low power consumption: Low-energy consuming electric motor and CO2 sensor.
Cons:

More expensive than simpler models: As this is an advanced device with LoRa technology and multiple features, it may be more expensive than basic CO2 monitors.
Requires 24V power supply: This device works only with a 24V power supply, so additional electrical connections may be necessary.
