  • New item   Cover frame | 4-gang | white | Sedna Design | Schneider Electric | SDD311804

    Cover frame | 4-gang | white | Sedna Design | Schneider Electric | SDD311804

    Code: SDD311804
    Inquire about this item
    Price 4.39 € VAT incl.
    ( 3.63 € VAT excl. )
    Want another price? Suggest yours!

    Schneider Electric Sedna Design SDD311804 is a white 4-gang cover frame for switches, sockets and other Sedna Design mechanisms. It combines 4 mechanisms into one neat block.

  • Product description

    Cover frame | 4-gang | white | Sedna Design | Schneider Electric | SDD311804

    Schneider Electric Sedna Design SDD311804 is a white 4-gang cover frame for switches, sockets and other Sedna Design mechanisms. It combines 4 mechanisms into one neat block.

    Key point:
    Several points in one place look like one unit, not separate devices. The frame can be installed horizontally or vertically, and any Sedna Design mechanisms – switches, sockets, data outlets – can go into its 4 places.
    Gangs
    4
    Dimensions
    298 × 85 × 10 mm
    Mounting
    Horizontal / vertical
    Colour
    White RAL 9003

    How it works

    First, Sedna Design mechanisms with fixing frames are installed in the boxes.

    The cover frame is placed over the mechanisms and locked, then rockers or socket covers are fitted.

    Result: a flat, neat installation point with no visible box edges.

    Dimensions and installation

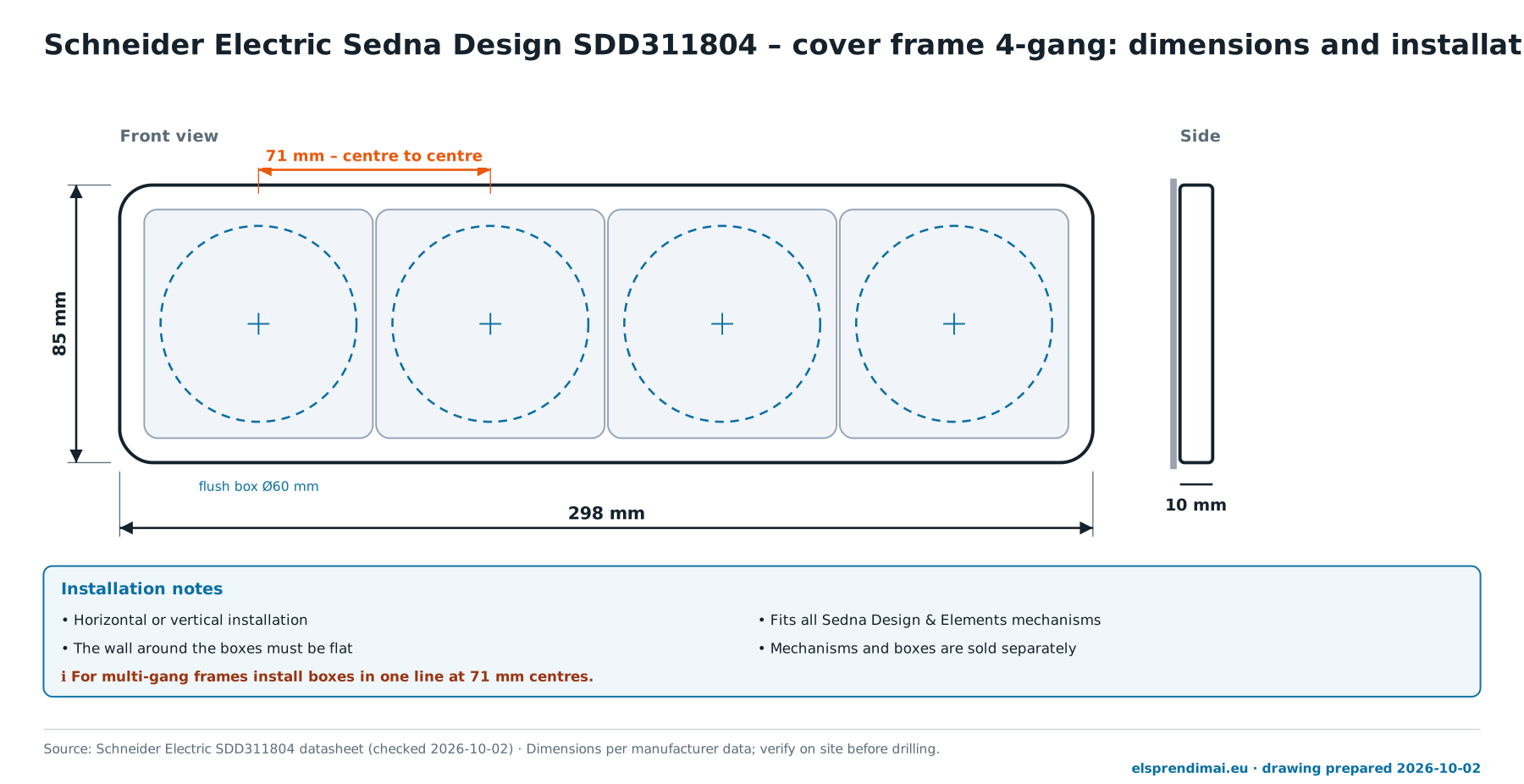

    Schneider Electric Sedna Design SDD311804 frame dimensions

    ☝ Click the drawing to open an enlarged version.

    ☝ Elsprendimai.eu recommends: at a workstation or TV – three SDD111021 sockets and the SDD111451 data outlet.
    Why choose SDD311804?
    The 4-gang frame combines 4 points in one: e.g. several sockets and a data outlet at a workstation or TV. Centre distance between mechanisms is 71 mm, as with standard European boxes.

    Technical specifications

    Product type Cover frame for flush installation
    Manufacturer / range Schneider Electric, Sedna Design & Elements
    Code SDD311804
    Number of gangs 4
    Dimensions (H×W×D) 298 × 85 × 10 mm
    Centre distance 71 mm
    Mounting direction Horizontal and vertical
    Colour / finish White RAL 9003, glossy
    Material Thermoplastic ABS, UV-stabilised
    Protection degree IP20
    Certifications FIMKO, SEMKO, NEMKO, VDE, AENOR
    Weight 29 g
    Compatibility Sedna Design & Elements mechanisms (e.g. SDD111101, SDD111105)

    Main functions

    • 4 gangs – for 4 mechanisms in one line
    • Horizontal or vertical mounting – to suit the wall and furniture layout
    • 10 mm thick – slim, sits close to the wall
    • UV-stabilised ABS – white stays white longer
    • Universal – fits all Sedna Design mechanisms

    Where is it used?

    • Switch and socket blocks by the door
    • Kitchen worktop zone
    • Bedside sockets
    • Office workstations – power and data outlets
    • TV and media zones
    • Hotel rooms

    Use by need

    For the installer.
    One frame type for all Sedna Design mechanisms – fewer items in the estimate.
    For renovation.
    Frames and mechanisms can be replaced without changing standard boxes.
    For home buyers.
    White, glossy, clean-lined frame that suits most interiors.

    Practical use

    If you plan 4 points in one place, install 4 boxes in a line at 71 mm centres. The frame will then fit without gaps or distortion.

    Pros

    • Fits all Sedna Design mechanisms
    • Horizontal and vertical mounting
    • Slim – 10 mm
    • UV-stabilised white RAL 9003
    • Same design in cream and anthracite (SDD312804 / SDD314804)

    Cons / limitations

    • Frame only – mechanisms sold separately
    • IP20 – for dry rooms
    • Requires accurate box spacing – 71 mm between centres

    Safety and installation notes

    • Fit the frame only on a completed, de-energised installation
    • Check that the mechanisms are firmly fixed before fitting
    • The wall around the box must be flat – otherwise gaps remain
    • Clean with a damp cloth, no solvents

    Quick selection guide

    4 gangs
    298 mm
    IP20
    RAL 9003
    Suitable when you need:
    • to combine 4 points into one block
    • horizontal or vertical mounting
    • a white Sedna Design frame
    Check before use:
    • the mechanisms are from the Sedna Design range
    • boxes are spaced at 71 mm
    • the wall around the box is flat
    Important reminder: The frame is decorative – it does not increase the protection degree or replace mechanism fixing.

    FAQ

    Are mechanisms included?
    No, this is the frame only – switches and sockets are sold separately.
    Which mechanisms does it fit?
    All Sedna Design & Elements mechanisms, e.g. SDD111101, SDD111105.
    Can it be mounted vertically?
    Yes, the manufacturer specifies horizontal and vertical mounting.
    What are the dimensions?
    298 × 85 × 10 mm, centre distance 71 mm.
    Are other colours available?
    Yes – cream and anthracite: SDD312804 / SDD314804.

    Cover frame | 4-gang | white | Sedna Design | Schneider Electric | SDD311804

    White 4-gang cover frame Schneider Electric Sedna Design SDD311804: 298 × 85 × 10 mm, horizontal and vertical mounting, fits all Sedna Design mechanisms.
