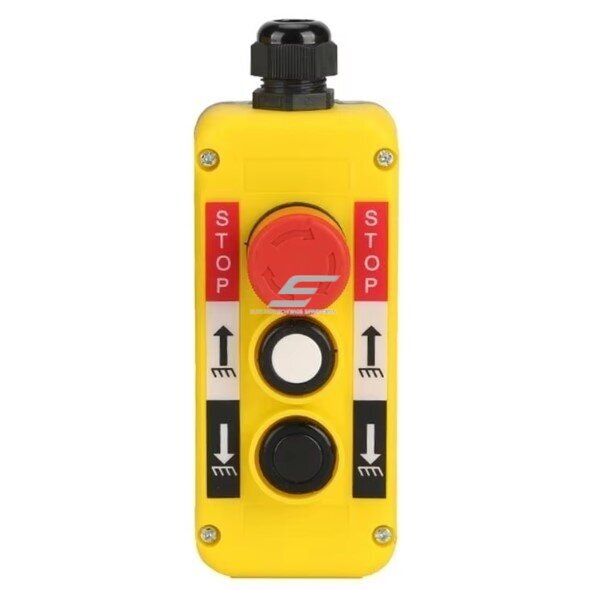

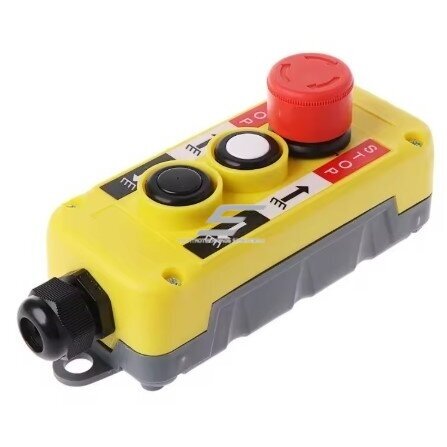

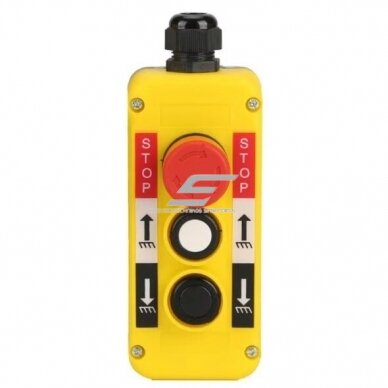

Crane control panel | with 2 buttons and a rotary STOP button | 5A | 440V | IP65

Technical Specifications:

Control buttons: 2 pcs. (up/down) + emergency STOP
Operating current: 5A
Rated voltage: ≥ 440V
Material: High-quality ABS plastic
Service life: Up to 1,000,000 operation cycles

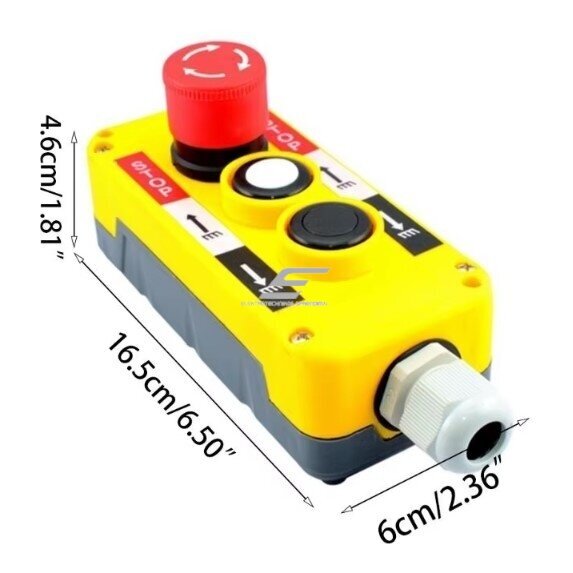

Dimensions: 4.6 × 6 × 16.5 cm
Operating temperature: -25°C to +75°C
Contact resistance: ≤50MΩ
Insulation resistance: ≥50MΩ
Protection class: IP65 (dustproof and waterproof)
Mounting: Hanging, with mounting points

Functions:

Simple control – the two-button system allows for efficient control of crane movements.
Emergency STOP button – provides additional safety in case of an emergency.
Environmental resistance – the IP65 protection class protects against dust, moisture, and mechanical damage.
Ergonomic design – lightweight and compact, convenient to use in hand.
Wide application – suitable for electric cranes, lifts, and industrial conveyor systems.
Usage:

Industrial equipment – used in factories, warehouses, and other industrial fields.
Electric cranes and lifts – allows efficient remote control of equipment.
Construction and logistics sector – ensures convenient and safe control of lifting equipment.
Advantages:

Durable and long-lasting – resistant to impact and wear.
High protection class (IP65) – works well under harsh conditions.
Emergency STOP button – additional protection for the user.
Easy installation and use – no complex settings required.
Disadvantages:

Limited number of buttons – not suitable for more complex control operations.
No wireless control – works only through wired connection.
This crane control panel is an excellent solution in the industrial sector where simple, reliable, and safe lifting equipment control is required. High-quality construction and emergency stop functionality ensure long-term durability and safety.
