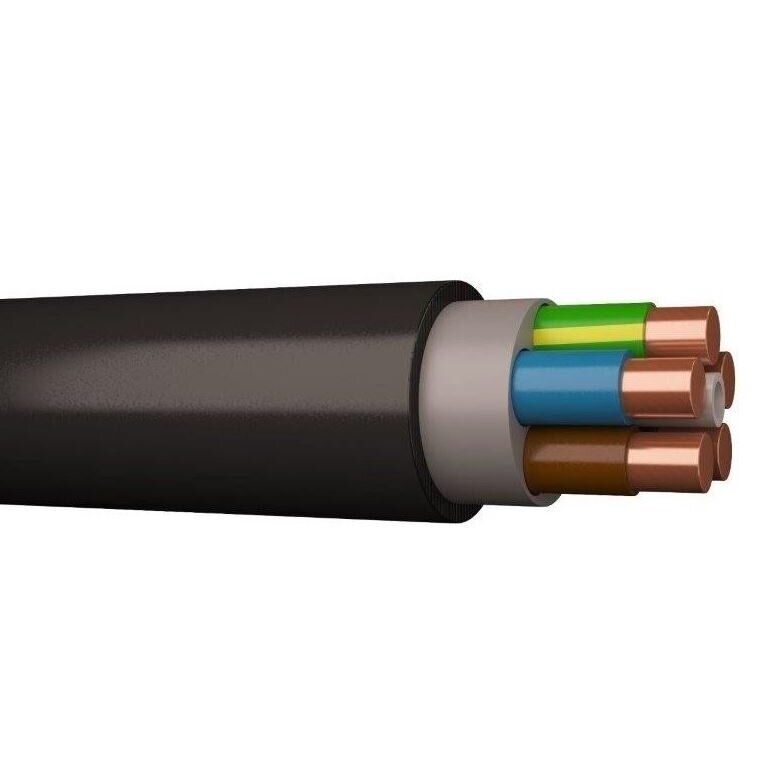

  • CYKY 5x10 | Copper power cable | CYKY-L 5G10 | 1m | black | REMNANTS | 11M | 9M | 9M | 8M

    Code: CYKY-5x10L

    Remnants of Lietkabelis CYKY-L 5G10 (5×10 mm², 450/750 V) copper power cable from stock. Piece lengths are listed in the name; for other lengths, choose the cable by the metre.

  • CYKY-L 5G10 | 5×10 mm² | Copper power cable | REMNANTS | Lietkabelis

    Remnants of AB Lietkabelis CYKY-L 5G10 copper power cable from our warehouse – pieces left over after cutting. It is the same cable we sell by the metre, offered as clearance in the lengths currently in stock.

    Key point:
    If you need a short 5×10 mm² run – a panel feeder, a service entry or a three-phase equipment connection – a remnant does exactly the same job as cable from the drum. Current piece lengths are listed in the product name; if the right length is not available, choose the cable sold by the metre.
    Cores
    5 × 10 mm² (L1, L2, L3, N, PE)
    Rated voltage
    450/750 V
    Approx. current rating
    57 A (method C, 3 loaded cores)
    Sold as
    Fixed-length pieces – see product name

    How does a remnant differ from cable by the metre?

    The cable, manufacturer and technical parameters are identical. Only the sales form differs: remnants are sold in the lengths available in stock, so quantities are limited.

    Need a different length?
    Order CYKY-L 5G10 cable by the metre – we will cut the length you need.

    Technical specifications

    Product type Copper power cable with PVC insulation and PVC sheath
    Manufacturer AB Lietkabelis (Lithuania)
    Model / designation CYKY-L 5G10
    Number of cores and cross-section 5 × 10 mm²
    Core functions L1, L2, L3, N, PE
    Core colours (LST HD 308) brown, black, grey, blue, green/yellow (PE)
    Conductor Solid, annealed copper, class 1 (LST EN 60228)
    Conductor resistance at +20 °C, max. 1.83 Ω/km (LST EN 60228)
    Insulation TI1 type PVC (LST EN 50363-3)
    Filler EPDM
    Sheath TM1 type PVC (LST EN 50363-4-1), black
    Rated voltage U0/U 450/750 V
    Test voltage 2 kV
    Outer diameter (approx.) 17.23 mm
    Weight (approx.) 728 kg/km
    Minimum bending radius > 5 cable diameters (~86 mm)
    Max. conductor temperature +70 °C; short circuit +160 °C
    Thermal shock 1 h at +150 °C
    Installation temperature -5 °C to +40 °C
    Operating temperature -30 °C to +70 °C
    Approx. current rating 57 A (3 loaded cores); HD 60364-5-52, method C, +30 °C
    Flame propagation Test to LST EN 60332-1-2
    Reaction to fire class (CPR) Eca (LST EN 50575), DoP LK-DoP 02/002/LT
    Compliance 2011/65/EU (RoHS), 2014/35/EU (LVD), Regulation (EU) No 305/2011
    Installation Dry and damp rooms, outdoors, in the ground
    Sales unit 1 m

    Where is it used?

    • Feeder between main and sub-distribution panels
    • Three-phase service entry to a building or homestead
    • Connecting a heat pump, electric boiler or other three-phase equipment
    • Power supply to workshops and outbuildings
    • Installation indoors, outdoors and in the ground
    • Short runs when repairing or replacing an existing line

    Pros

    • The same Lietkabelis CYKY-L 5G10 cable as sold by the metre
    • Five cores including PE – suitable for TN-S systems
    • Can be laid indoors, outdoors and in the ground
    • Ready-cut piece – no waiting for cutting

    Cons / limitations

    • Only lengths currently in stock are available
    • Limited quantity – once a piece is sold, it is gone
    • For a longer or specific length, choose the cable sold by the metre

    Check before buying

    • The piece is long enough, with allowance for stripping and termination
    • The cross-section matches the protective device and installation method (HD 60364-5-52)
    • Minimum bending radius – approx. 86 mm
    • Installation temperature – -5 °C to +40 °C
    • Final cable sizing and protection must be selected by a qualified electrician

    FAQ

    Is the remnant cable different from the one sold by the metre?
    No, it is the same AB Lietkabelis CYKY-L 5G10 cable; only the sales form differs.
    Where can I see which lengths are available?
    Current piece lengths are listed in the product name and updated as pieces are sold.
    What if I need a different length?
    Order CYKY-L 5G10 cable by the metre – we will cut the length you need.
    Which circuit breaker suits a 5×10 mm² cable?
    It depends on installation method and length; the approx. rating for method C with 3 loaded cores is 57 A, final selection is made by an electrician.

    CYKY-L 5G10 | 5×10 mm² | Copper power cable | REMNANTS | Lietkabelis

    Remnants of Lietkabelis CYKY-L 5G10 5×10 mm², 450/750 V copper power cable from stock – fixed-length pieces for three-phase 400 V circuits. Suitable indoors, outdoors and in the ground; for other lengths, choose the cable by the metre.

    Published: 2026-11-15 · Data verified against the manufacturer’s datasheet: 2026-11-13

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
