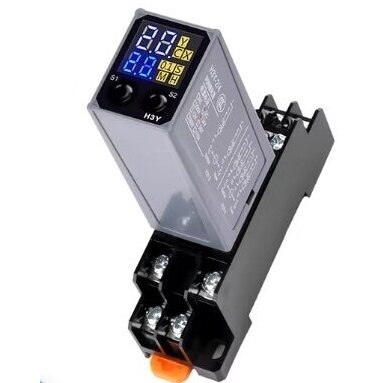

Digital switch-on delay relay | 5A | 230VAC | PYF-08A

Technical Specifications:

Voltage: 230V AC (operating voltage).
Contact Capacity: 5A 250VAC (maximum load).
Delay Time Range: 0.1 seconds to 99 hours, adjustable.
Contact Form: 2 normally open (NO) and 2 normally closed (NC) contacts.
Pins: 8 contact pins.
Base: PYF-08A.
LCD Screen: High-definition digital display showing the exact delay time setting.
Delayed Switching Function: Ability to set a delay time before the electrical equipment is turned on.

Usage:

Industrial Systems: The digital time relay is used in industrial equipment and automation systems to ensure the precise startup or shutdown of devices according to the delay time. For example, it is used in cooling, heating, ventilation, and air conditioning (HVAC) systems, where equipment turns on only after a certain period.
Lighting Systems: It is used in lighting systems where control of the turn-on time is required, such as automatically turning on outdoor lighting at specific times of day or under certain conditions.
Automatic Control: Time relays are also used in various automatic control systems to ensure the proper sequence of device operation and shutdown, such as in loading and unloading systems, control systems, food processing, etc.
Home Automation: This relay can also be used in residential areas, for example, for controlling home lighting or other devices based on a set delay time.

Pros:

Adjustable Delay Time: The relay offers great flexibility in setting the delay time from 0.1 seconds to 99 hours, allowing it to be applied to various purposes and systems.
LCD Screen: The high-definition LCD screen allows easy and accurate delay time setting and monitoring of system status, ensuring convenient control and clear equipment operation status.
Wide Application: Due to its adjustable delay time and various contact forms, the relay is versatile and can be used in both industrial and everyday applications, such as home automation, lighting systems, and more.
Reliability: The digital design ensures precise and reliable operation, while the high quality allows for long-term use without failures.

Cons:

Complexity: While the device offers a broad range of adjustments, some users may feel uncomfortable when setting more complex delay times or modes.
Potential Misapplication: The digital time relay may be less suitable for very simple systems where precise control of the turn-on time is not necessary, as it is more oriented toward complex industrial or automated systems.
Limited Contact Capacity: This relay can only control devices with low power capacity, as it has a 5A contact rating. Larger power equipment requires different solutions.
Limited Tolerance: The accuracy of the delayed switching time may be limited, especially for longer times, as some mechanical or other types of controllers may offer more precise delay times.

Summary:

The digital time relay with delayed switching is a modern and highly functional device that offers flexibility and precision in controlling device activation times. Due to its versatility and adjustable parameters, it is ideal for both industrial and home systems that require precise equipment operation control. While it provides numerous advantages, such as the high-definition LCD screen and multiple delay mode options, some users may encounter challenges with complex settings and limited applicability in very simple systems.
