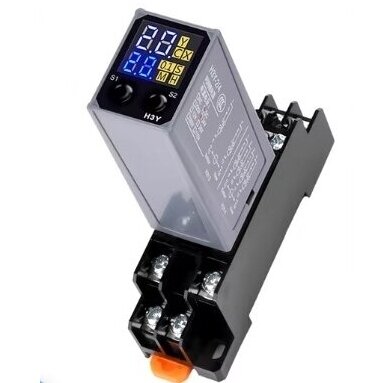

Digital switch-on delay relay | 5A | 24VDC | PYF-08A

Technical Specifications:

Contact capacity: 5A, 250VAC
Voltage: 24VDC
Time delay range: 0.1s to 99 hours (0.1s ~ 99h), adjustable
Contact form: 2 open and 2 closed contacts
Number of pins: 8 pins
Base: PYF-08A (includes a base socket for easy relay installation)
LCD screen: High-definition digital display with clearly visible delay times
Delay: Adjustable delay before the device turns on after the set time
Accuracy: High time accuracy with preset parameters
Operating temperature: -10°C ~ +55°C
Protection rating: IP20 (for indoor use)
Applications:

Industrial process control: The digital time relay is used in industrial processes where delayed switching on or off is required (e.g., in production line equipment, ventilation systems, etc.).
Electric device startup: Used to control the startup of electrical devices such as motors, pumps, and lighting systems with delayed switching.
Automatic systems: Suitable for automatic systems requiring precise timed activation to ensure optimal performance parameters.
Security system control: Used as part of security systems requiring a delay function, such as before energizing the power supply or starting equipment.
Network and equipment management: Suitable for controlling power supply systems and networks where delayed switching is needed to prevent overloads or other issues.
Advantages:

Adjustable delay time: The ability to adjust the delay time from 0.1 seconds to 99 hours allows the relay to be customized for various applications to meet specific needs.
High display resolution: The digital LCD display provides clear and easily readable information about the delay time, making it convenient for users to monitor and adjust parameters.
Complex modes: The relay offers various modes (e.g., on and off delay), providing flexibility for different applications.
High contact capacity: The 5A, 250VAC contact capacity allows the relay to be used with numerous devices and systems, ensuring control without additional protective devices.
Easy installation: The 8-pin design with the PYF-08A base simplifies installation and mounting in various control systems.
Disadvantages:

Protection rating: The IP20 protection rating indicates that this relay is intended for indoor use only, making it unsuitable for wet or outdoor environments without additional protection.
Time setting complexity: Although the adjustment is flexible, users without technical knowledge may encounter difficulties in setting the exact time, especially when using more complex delay modes.
Requirement for correct voltage and current: The relay is designed for 24VDC voltage and 5A capacity only, meaning it cannot be used for high-power devices or other voltages without additional conversion.
Installation complexity without skills: While installation is straightforward, it still requires some skill to ensure the relay is properly connected and operates in optimal mode.
Conclusion:

The digital time relay with delayed switching is a highly useful and functional device designed to accurately control equipment startup, ensuring that devices only turn on after the set delay time. Adjustable parameters, the digital LCD display, and various modes offer great flexibility, making this relay suitable for a wide range of industrial and commercial systems. Although this device has some limitations, such as being restricted to indoor use and installation complexity, it is a very useful and reliable solution when precise timed activation is required.
