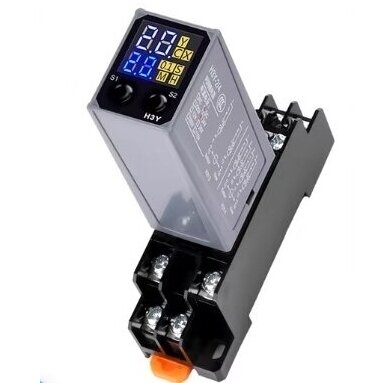

Digital switch-on delay relay | 5A | 12VDC | PYF-08A

Technical Specifications:

Contact Capacity: 5A 250VAC (contact control capacity allowing control of up to 5A current in 250VAC devices).
Voltage: 12VDC (requires a 12V DC power source).
Delay Time Range: 0.1 seconds to 99 hours (adjustable as needed).
Contact Type: 2 open and 2 closed contacts (allowing control of both switching on and off functions).
Pin Count: 8 (depends on connection type and system requirements).
Device Base: PYF-08A (designed for DIN rail mounting).
Display: High-definition digital LCD screen.
Power-On Delay Mode: Ability to set a delay before the system is powered on.
Delay Modes: Ability to set different delay modes, tailored for various systems and situations.
Applications:

Industrial Automation: The digital time relay with delayed activation is widely used in automation processes where there is a need to control the turning on or off of machines or equipment with a specified delay. This can include production lines, robotic systems, and various industrial devices.
Lighting Control: Used in commercial and residential lighting systems where the timing of when the lights should be turned on or off is needed based on a specific delay, such as in light sensor systems.
Automated Control Processes: An ideal choice for managing temporary systems, such as water supply control, heating systems, or ventilation device regulation according to delay time.
Safety Systems: Used in safety systems where it is necessary to ensure that the system activates after a certain time to prevent errors or avoid premature activation.
Pros:

Wide Delay Time Range: This time relay allows adjusting the time from 0.1 seconds to 99 hours, making it suitable for both short and long delay processes, depending on the needs.
Adjustable Delay Time: The ability to easily adjust the delay time via the digital display provides great flexibility and precision in various control processes.
LCD Display: The high-definition LCD display makes it easy to monitor the set delay time and adjust the settings, offering the user clear information.
Modes: The ability to select different delay modes allows the device to be adapted to various use cases, such as control processes with different activation and deactivation time intervals.
Cons:

Correct Installation Required: Incorrect installation or settings may cause errors or improper device functioning. Therefore, careful installation and programming are essential.
High Price: Compared to simple mechanical timers or relays, this digital time relay may be more expensive, but its functionality and precise control make it worthwhile.
Additional Components Needed: To achieve maximum functionality, additional accessories such as controllers or sensors may be required, depending on the complexity of the system.
Dependence on Power Supply: As this relay operates with a DC power source, it depends on the power supply. If the voltage drops, an alternative power source may be needed.
The digital time relay with delayed activation is a highly useful and flexibly controlled device, ideal for various industrial, commercial, and residential control processes. Its adjustable delay time, high-definition LCD screen, and wide contact capacity range provide high precision and versatility. Although it may be more expensive than traditional mechanical timers, its functionality and flexibility ensure effective and safe equipment control across different fields.
