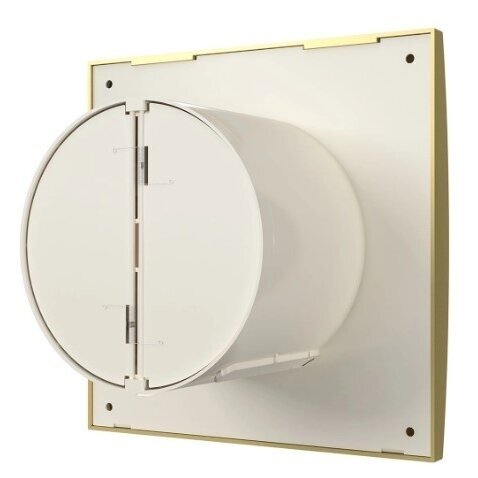

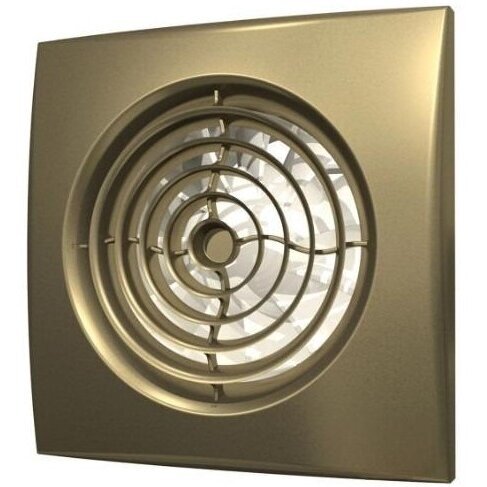

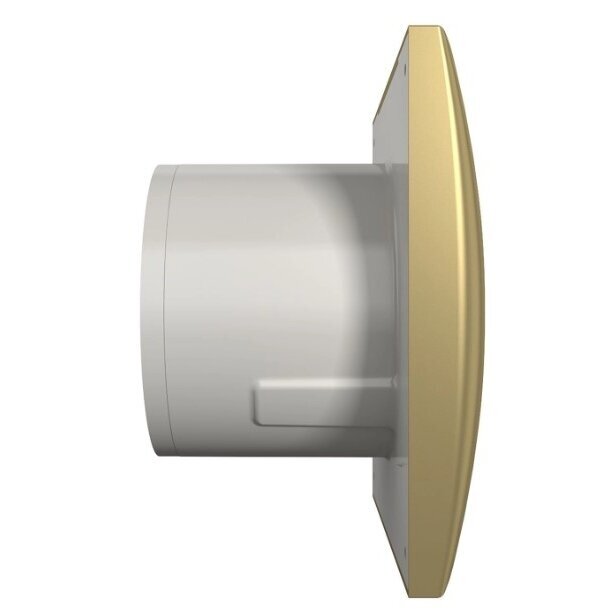

Fan with back-draught shutter | D100 | 230V | 155x155x101mm | IP24 | plastic | gold/champagne color | AU4SA
Code: 13755• The fan is used for continuous or periodic ventilation of bathrooms, showers, kitchens, and other domestic rooms.
• With a back-draught shutter that prevents unpleasant odors from entering the fan.
• It features a blue LED that lights up when the fan is switched on.
• It offers high performance with low noise. The long service life is ensured by a reliable, energy-efficient electric motor and aerodynamically designed blades.
• The motor with a ball bearing requires no additional maintenance and allows the fan to be installed in both vertical and horizontal positions (with the back-draught shutter pulled out).
• Installation is done using self-tapping screws, which are included in the package.Light indication
Low energy consumption
Low noise
Motor with ball bearing
Plastic back-draught shutter
Overheating protection
Screw mounting-
Technical specifications:
Color: gold/champagne
Width, mm: 155
Height, mm: 155
Depth, mm: 101
External diameter, mm: 100
Mounting diameter, mm: 100
Capacity, m³/h: 90
Noise level, dB(A): 25
Material: ABS plastic
Pressure, Pa: 48
Voltage, V: 230
Power consumption, W: 8.4
Weight, kg: 0.5
Installation: Wall-mounted
Operating mechanism: Axial
Ventilation principle: Extraction
Control: Mechanical
Protection class: IP24
Warranty: 5 yearsAdvantages: • Low energy consumption: An efficient motor that ensures good airflow but consumes little energy.
• Low noise: The fan operates quietly, causing no disruptions to daily life.
• Light indication: A blue LED indicates that the fan is working, providing convenience and clarity.
• Motor with ball bearing: Requires no additional maintenance and ensures long-term operation.
• Back-draught shutter: Prevents unpleasant odors from returning to the room.
• Overheating protection: A safety feature that protects against potential overheating.Disadvantages: • The back-draught shutter must be removed when mounting on the ceiling: This may reduce installation convenience.
• Plastic back-draught shutter: While plastic is lightweight and resistant, it may be less durable than metal shutters, especially with long-term use.Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.ManufacturerThis product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
