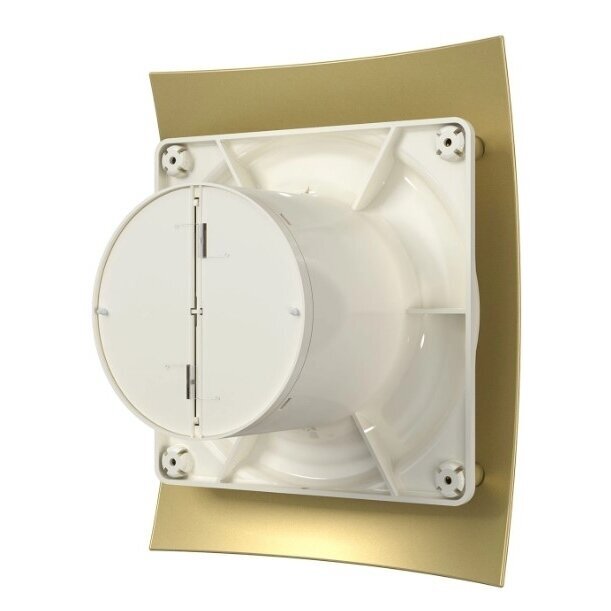

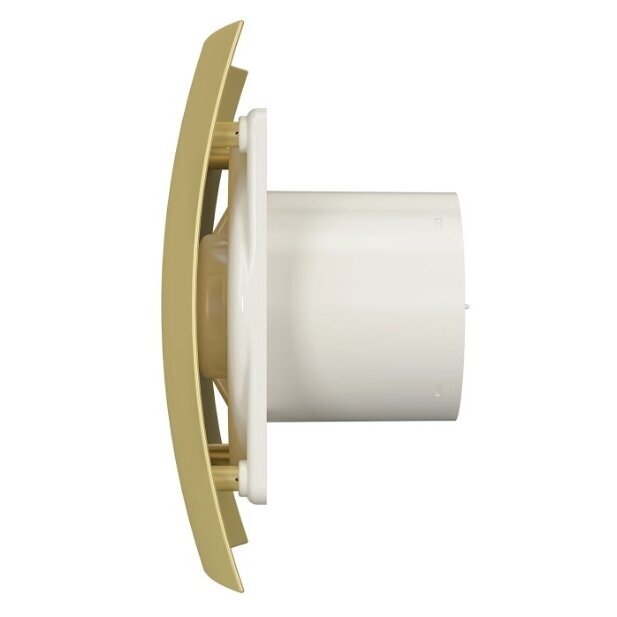

Fan with back-draught shutter | D100 | 230V | 220x175x123mm | IP24 | plastic | gold/champagne color | BR4SA
Code: 04116The fan is used for continuous or periodic ventilation of bathrooms, showers, kitchens, and other domestic spaces.
With a back-draught shutter that prevents unpleasant odors from entering through the shaft.
It features high efficiency and low noise.
The motor with a ball bearing requires no additional maintenance and allows for installation of the fan in both vertical and horizontal positions (with the back-draught shutter removed).
Modern stylish design

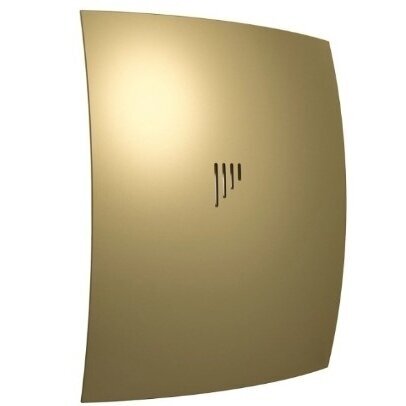

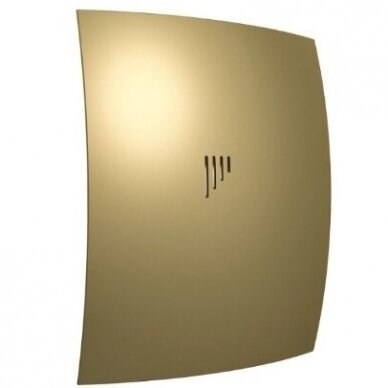

Easily removable cover
Low noise level
Motor with ball bearing
Quiet back-draught shutter
Overheating protection
Screw mounting
-
Technical Data:
Material: ABS plastic
Color: Gold/Champagne
Protection Degree: IP24
Height: 220 mm
Width: 175 mm
Total Depth: 124 mm
Mounting Height: 135 mm
Mounting Width: 135 mm
Mounting Diameter: 98 mm
External Diameter: 98 mm
Voltage: 230V
Operating Mechanism: Axial
Ventilation Principle: Exhaust
Control: Mechanical
Power Consumption: 9 W
Efficiency: 90 m³/h
Pressure: 30 Pa
Noise Level: 25 dB(A)
Frame Thickness: 44 mm
Flange Depth: 74 mm
Shutter Depth (Closed): 6 mm
Warranty: 5 years
Advantages:Durable motor: Ensures a longer lifespan (up to 40,000 hours), reducing wear and enhancing reliability.
Lower energy consumption: Reduced energy use helps save electricity over the long term.
Low noise level: Quiet operation due to the special design, ideal for environments where noise must be minimized.
Back-draught shutter protection: Provides effective control of back-draught airflow without additional noise.
Easy maintenance: The front panel can be easily removed for cleaning and maintenance.
Universal mounting: Suitable for installation on both walls and ceilings.
Disadvantages:Back-draught shutter must be removed for ceiling mounting: The back-draught shutter must be detached when installing the fan on the ceiling.
Large size: Some users may find the fan too large if more compact solutions are needed for small spaces.Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.ManufacturerThis product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
