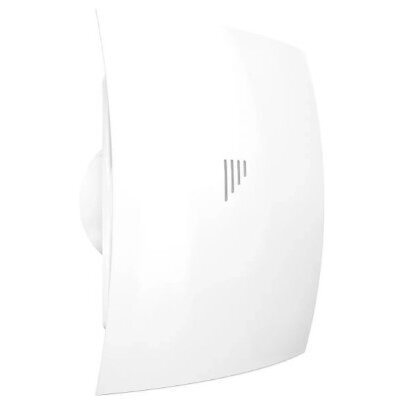

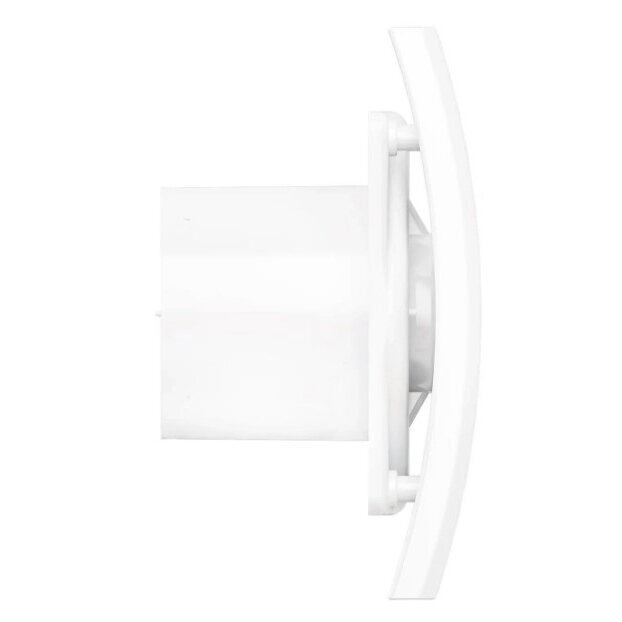

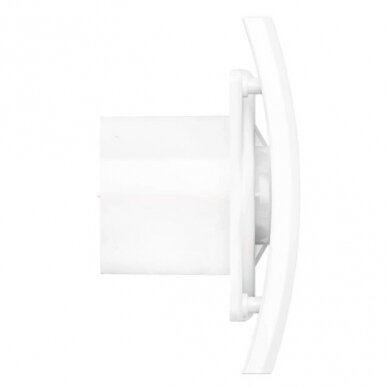

Fan with back-draught shutter | D100 | 230V | 220x175x123mm | IP24 | plastic | white | BR4STT
Code: 04120• The fan is used for continuous or periodic ventilation of bathrooms, showers, kitchens, and other domestic rooms.

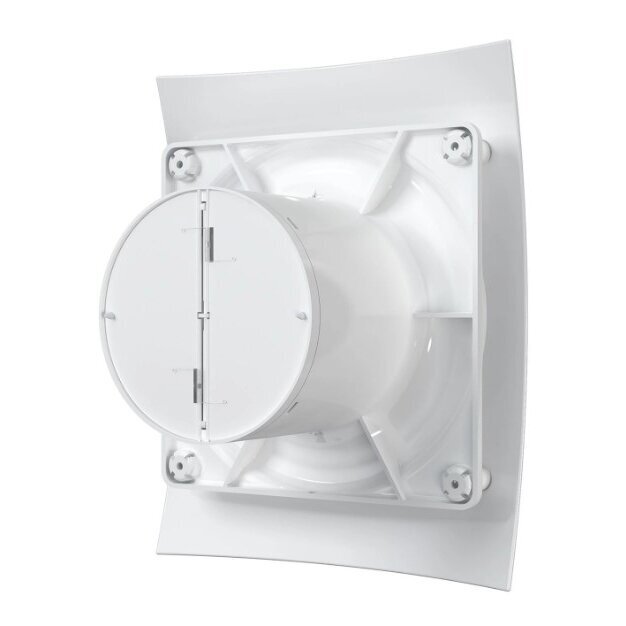

• Equipped with a back-draught shutter that prevents unpleasant odors from entering through the shaft.
• Features high performance and low noise.
• The ball bearing motor requires no additional maintenance and allows the fan to be mounted both vertically and horizontally (with the back-draught shutter removed).Modern stylish design
Easily removable cover
Low noise
Ball bearing motor
Quiet back-draught shutter
Overheating protection
Screw mounting-
Technical Specifications:
Material: ABS plastic
Color: White
Protection Rating: IP24
Height: 220 mm
Width: 175 mm
Overall Depth: 124 mm
Mounting Height: 135 mm
Mounting Width: 135 mm
Mounting Diameter: 98 mm
Outer Diameter: 98 mm
Voltage: 230V
Working Mechanism: Axial
Ventilation Principle: Exhaust
Control: Mechanical
Energy Consumption: 16 W
Capacity: 110 m³/h
Pressure: 35 Pa
Noise Level: 36 dB(A)
Frame Thickness: 44 mm
Flange Depth: 74 mm
Shutter Depth: 6 mm
Warranty: 5 yearsAdvantages:
Durable Motor: Ensures a longer service life (up to 40,000 hours), reducing wear and increasing reliability.
Lower Energy Consumption: Reduced energy use helps save power in the long run.
Low Noise Level: Quiet operation due to the special design, ideal for environments where noise must be kept to a minimum.
Back-Draught Shutter Protection: Ensures efficient back-draught control without additional noise.
Easy Maintenance: The front panel can be easily removed, providing quick access to internal parts for cleaning or maintenance.
Versatile Mounting: Suitable for installation on walls and ceilings.
Disadvantages:Back-Draught Shutter Removed for Ceiling Mounting: For ceiling installation, the back-draught shutter must be removed.
Large Size: The fan may be too large for some users, particularly those seeking more compact solutions in small spaces.Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.ManufacturerThis product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
