Fan with back-draught shutter | D125 | 230V | 200x200x123mm | IP24 | plastic | dark grey | OIR5STP

Technical Specifications:

Material: ABS plastic
Color: Dark gray/dark metal
Protection class: IP24
Height: 200 mm
Width: 200 mm
Total depth: 123 mm
Mounting height: 160 mm
Mounting width: 160 mm
Mounting diameter: 123 mm
External diameter: 123 mm
Voltage: 230V
Operating mechanism: Axial
Ventilation principle: Extraction
Control: Mechanical
Power consumption: 16 W
Efficiency: 180 m³/h
Pressure: 50 Pa
Noise level: 33 dB(A)
Frame thickness: 38 mm
Flange depth: 79 mm

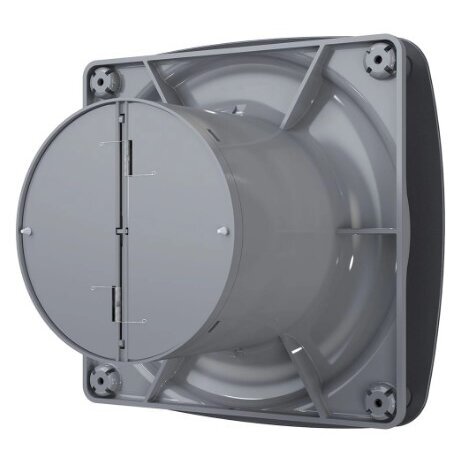

Back-draught shutter depth: 6 mm
Warranty: 5 years

Pros:

• Back-draught shutter: Prevents unpleasant odors from entering the room, ensuring fresh and clean air.
• Efficient ventilation: Suitable for continuous or periodic ventilation in bathrooms, showers, kitchens, and other domestic spaces.
• Low noise: The fan operates quietly without generating noise, making it ideal for installation in living spaces where maintaining peace is important.
• Long-lasting motor with ball bearing: The motor requires no additional maintenance and ensures long-term reliability, with the ability to mount the fan both vertically and horizontally.
• Sturdy and easy installation: The fan is easy to install using the self-tapping screws included in the package.

Cons:

• IP24 protection class: While the fan is protected from water splashes, it is not suitable for direct contact with water, such as in very damp environments.
• Plastic housing only: While plastic is lightweight and resistant, it may be less durable and more prone to scratches compared to metal or other material housings.
