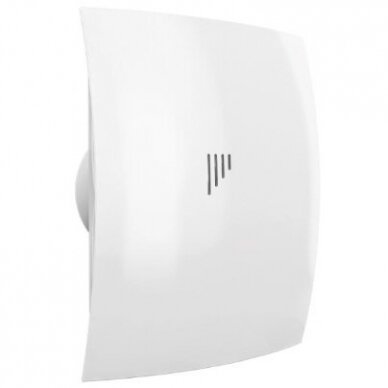

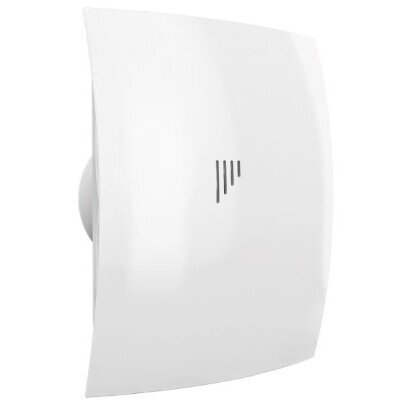

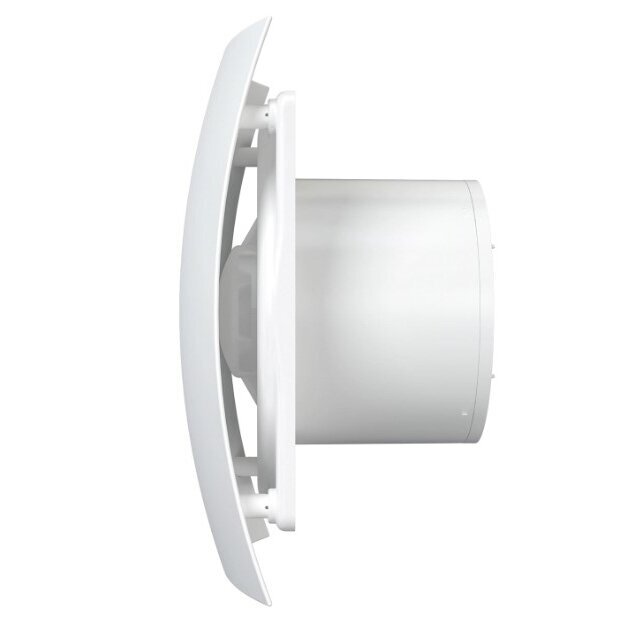

Fan with back-draught shutter | D125 | 230V | 237x190x137mm | IP24 | plastic | white | BR5S
Code: 04123The fan is used for continuous or periodic ventilation of bathrooms, showers, kitchens, and other household spaces.

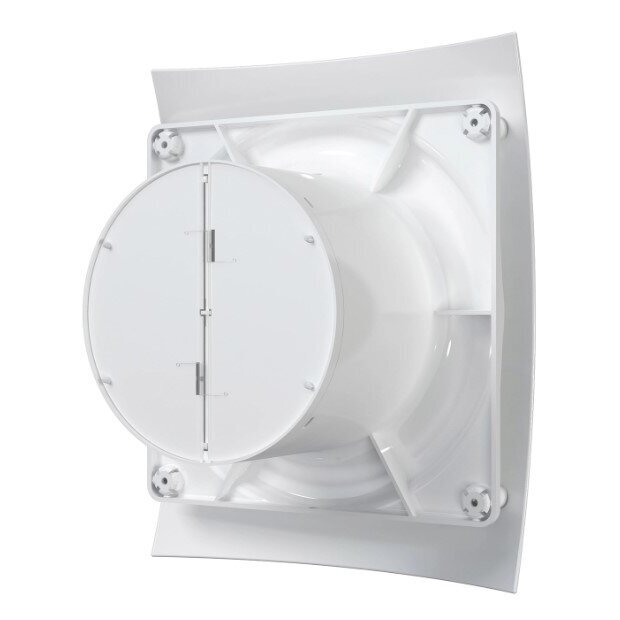

Equipped with a back-draught shutter, which prevents unpleasant odors from entering the shaft.
Features high performance and low noise.
The motor with a ball bearing requires no additional maintenance and allows the fan to be installed both vertically and horizontally (with the back-draught shutter removed).
Modern stylish design
Easily removable panel
Low noise level
Motor with ball bearing
Quiet back-draught shutter
Overheating protection
Screw mounting
-
Technical Specifications:
Material: ABS plastic
Color: White
Protection Rating: IP24
Height: 237 mm
Width: 190 mm
Overall Depth: 137 mm
Mounting Height: 160 mm
Mounting Width: 160 mm
Mounting Diameter: 123 mm
Outer Diameter: 123 mm
Voltage: 230V
Operating Mechanism: Axial
Ventilation Principle: Exhaust
Control: Mechanical
Power Consumption: 13 W
Efficiency: 165 m³/h
Pressure: 48 Pa
Noise Level: 30 dB(A)
Frame Thickness: 52 mm
Flange Depth: 79 mm
Shutter Depth: 6 mm
Warranty: 5 years
Advantages:Durable Motor: Ensures a longer lifespan (up to 40,000 hours), reducing wear and increasing reliability.
Lower Power Consumption: Reduced energy consumption, helping to save energy over the long term.
Low Noise Level: Quiet operation due to the special design, ideal for use in environments where noise should be minimized.
Back-Draught Shutter Protection: Ensures effective control of back-draught air flow without additional noise.
Easy Maintenance: Removable front panel makes it easy to access internal parts for cleaning or maintenance.
Universal Mounting: Suitable for wall and ceiling mounting.
Disadvantages:Back-Draught Shutter Removed During Ceiling Installation: The back-draught shutter must be removed when installing on the ceiling.
Large Size: The fan may be too large for some users if more compact solutions are needed for small rooms.
Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.ManufacturerThis product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
