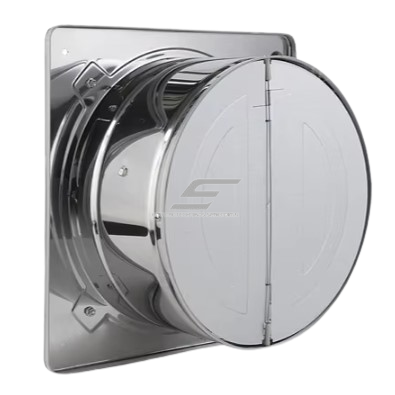

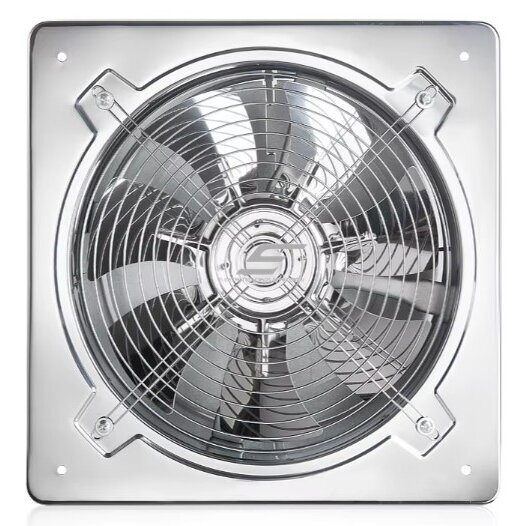

Extractor fan with backdraft shutter | D150 | 230V | 190x190x135mm | stainless steel
Code: ES-YNF-150Price 51.04 € VAT incl.( 42.18 € VAT excl. )This powerful exhaust fan is designed for efficient air circulation and ventilation in various rooms: bathrooms, toilets, kitchens, offices, and other spaces where it is essential to quickly remove moisture, smoke, or unpleasant odors. It features an integrated backdraft damper to prevent the return of insects, dust, and unwanted odors.
-
Extractor fan with backdraft shutter | D150 | 230V | 190x190x135mm | stainless steel
The extractor fan with backdraft shutter removes stale air from bathrooms, toilets, kitchens and storage rooms. It is mounted in a wall or ceiling into a Ø150 mm duct or opening and removes moisture and odours; the backdraft shutter prevents air from flowing back.
v=>[(v.q?v.q+' m³/h airflow':'')+(v.db?(v.q?', ':'')+v.db+' dB(A) noise':'')+(v.pw?' and '+v.pw+' W power':'')+(v.q||v.db?' – a practical choice for a domestic room.':''),v.f.H?'The humidity sensor switches the fan on when humidity rises after a shower and off once the room is dry – no need to think about the switch.':v.f.T?'The timer keeps the fan running for a while after the light is switched off, so moisture and odours are fully removed.':v.f.C?'The pull-cord switch removes the need for a separate wall switch – convenient in renovations.':'It is usually connected to the light switch: the fan runs while the light is on.',v.f.V?'The backdraft shutter keeps cold air, odours and dust from the duct out when the fan is off.':''].filter(Boolean).join(' ')
and 32 W power It is usually connected to the light switch: the fan runs while the light is on. The backdraft shutter keeps cold air, odours and dust from the duct out when the fan is off.Duct diameter
Ø150 mmControl
wall switchHow it works
An axial impeller driven by a 230 V motor extracts air from the room into a duct or ventilation shaft, while fresh air enters through the door gap or supply air vents. When the fan is switched off, the backdraft shutter closes and stops reverse airflow.
Why choose Extractor fan with backdraft shutter?
A quiet, energy-saving solution for a standard Ø150 mm opening.Technical specifications

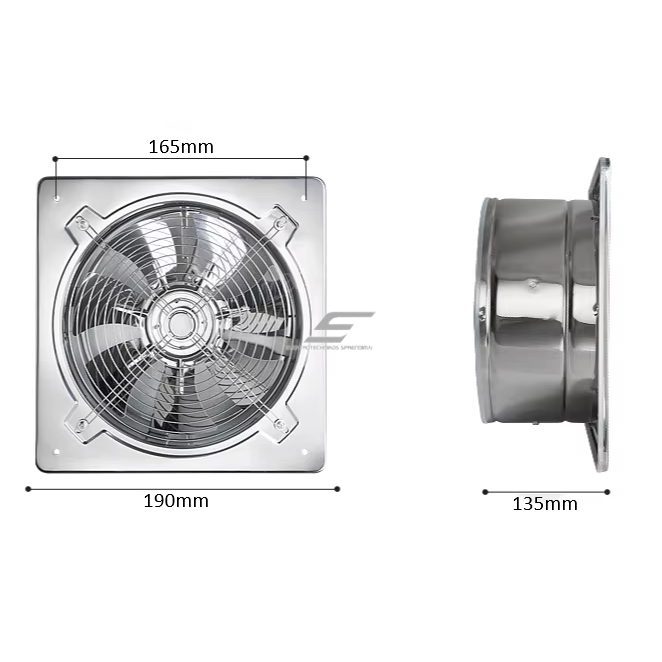

Product type Extractor fan with backdraft shutter Product code ES-YNF-150 Duct (mounting) diameter 150 mm Dimensions (H × W × D) 190 × 190 × 135 mm Supply voltage 230 V AC Power 32 W Backdraft shutter Yes Control External switch (e.g. light switch) Housing material Stainless steel Key features
- 32 W power – low energy consumption
- Backdraft shutter – keeps cold air, odours and dust from the duct out when off
Where is it used?
- Bathrooms
- Toilets
- Kitchens (general ventilation, not instead of a cooker hood)
- Laundry and drying rooms
- Storage rooms, basements
- Changing rooms, small offices
Pros
- Low power – 32 W
- Standard Ø150 mm opening
- Backdraft shutter in the housing
Cons / limitations
- No timer or humidity sensor – for that, choose fans with a timer or humidity sensor
Safety and installation notes
- Install only with the power disconnected; connection must be made by a qualified electrician
- In bathrooms, follow the zone requirements of HD 60364-7-701
- Duct diameter is 150 mm; do not reduce the cross-section and avoid long ducts with many bends
- Ensure a fresh-air inlet into the room (door gap or supply air vent)
FAQ
Which duct does it fit?
A Ø150 mm duct or opening in a wall or ceiling.How is the fan controlled?
With an external switch, usually together with the light.Does it have a backdraft shutter?
Yes, the shutter is built into the housing and closes when the fan stops.Is it suitable for a bathroom with a shower?
Yes; install outside the reach of a direct water jet and follow the zone requirements.Extractor fan with backdraft shutter | D150 | 230V | 190x190x135mm | stainless steel
Extractor fan with backdraft shutter Ø150 mm – for bathrooms, toilets and kitchens.
Published: 2026-11-17 · Data according to supplier specification
Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
